115.04.00 - Engine Oil System

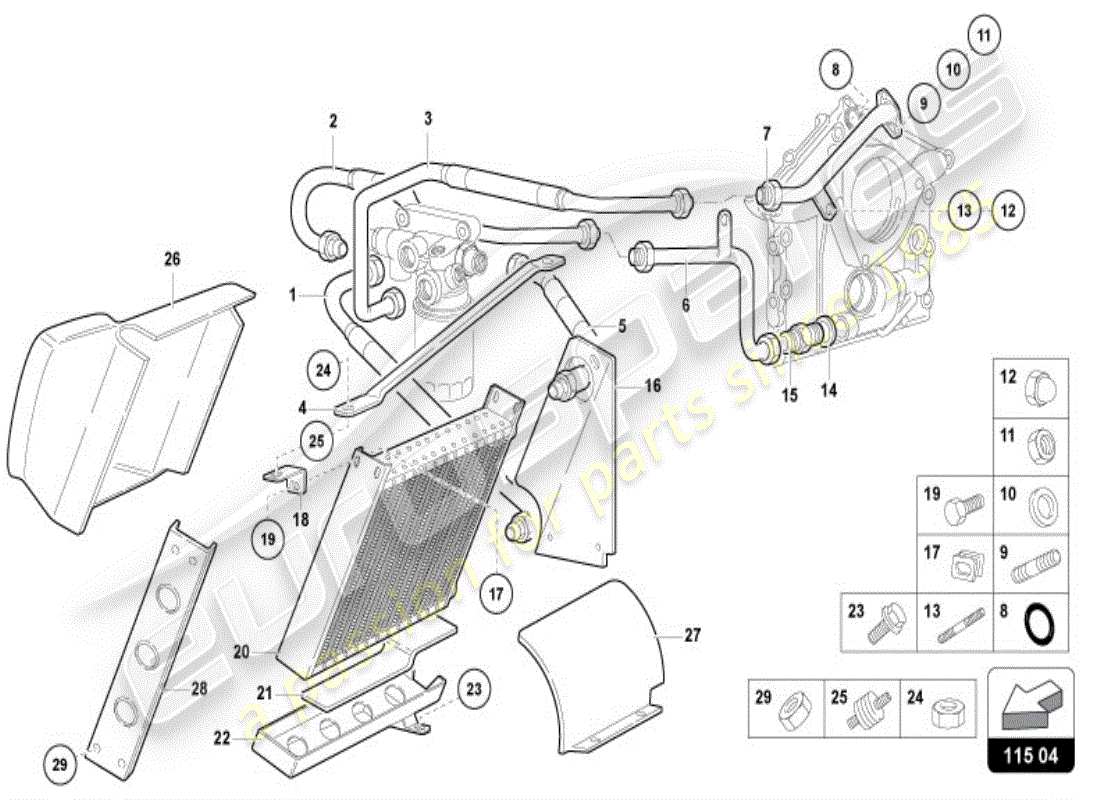

Lamborghini Diablo VT (1997) ENGINE OIL SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001533285
FLEX. HOSE
from £677.53
from £677.53
# 002
MPN: 001535965
FLEX. HOSE
from £291.72
from £291.72
# 003
MPN: 001535966
FLEX. HOSE
from £154.83
from £154.83
# 004
-
ROD
NOT FOR THIS MODEL
# 005
MPN: 001533286
FLEX. HOSE
Supersession
Supersession
# 006
MPN: 001535964
PIPE
from £145.87
from £145.87
# 007
MPN: 001535967
PIPE
from £80.72
from £80.72
# 008
MPN: 008602802
SEAL
Supersession
Supersession
# 009
MPN: 008300828
STUD
# 010
MPN: 008410820
WASHER
Supersession
Supersession
# 011
MPN: 008200801
NUT
Supersession
Supersession
# 012
MPN: 008200816
NUT
from £2.94
from £2.94
# 013
MPN: 008300905
STUD
from £11.95
from £11.95
# 014
MPN: 008403006
WASHER
from £6.50
from £6.50
# 015
MPN: 001529610
CONNECTION
Supersession
Supersession
# 016
MPN: 004133295
SUPPORT
from £77.00
from £77.00
# 017
MPN: 008220601
PLATE
from £14.24
from £14.24
# 018
-
BRACKET
NOT FOR THIS MODEL
# 019
-
SCREW
NOT FOR THIS MODEL
# 020
MPN: 001533283
OIL RADIATOR
# 021
MPN: 001533325
RUBBER PROFILE
# 022
MPN: 004135987
SUPPORT
from £74.23
from £74.23
# 023
MPN: 008700663
SCREW
from £0.53
from £0.53
# 024
-
NUT
NOT FOR THIS MODEL
# 025
-
SILENTBLOC
NOT FOR THIS MODEL
# 026
-
CONVEYOR
NOT FOR THIS MODEL
# 027
-
CONVEYOR
NOT FOR THIS MODEL
# 029
MPN: 004135992
BRACKET
from £38.43
from £38.43
# 029
MPN: 008200614
NUT
Supersession
Supersession
