311.06.00 - GEARBOX

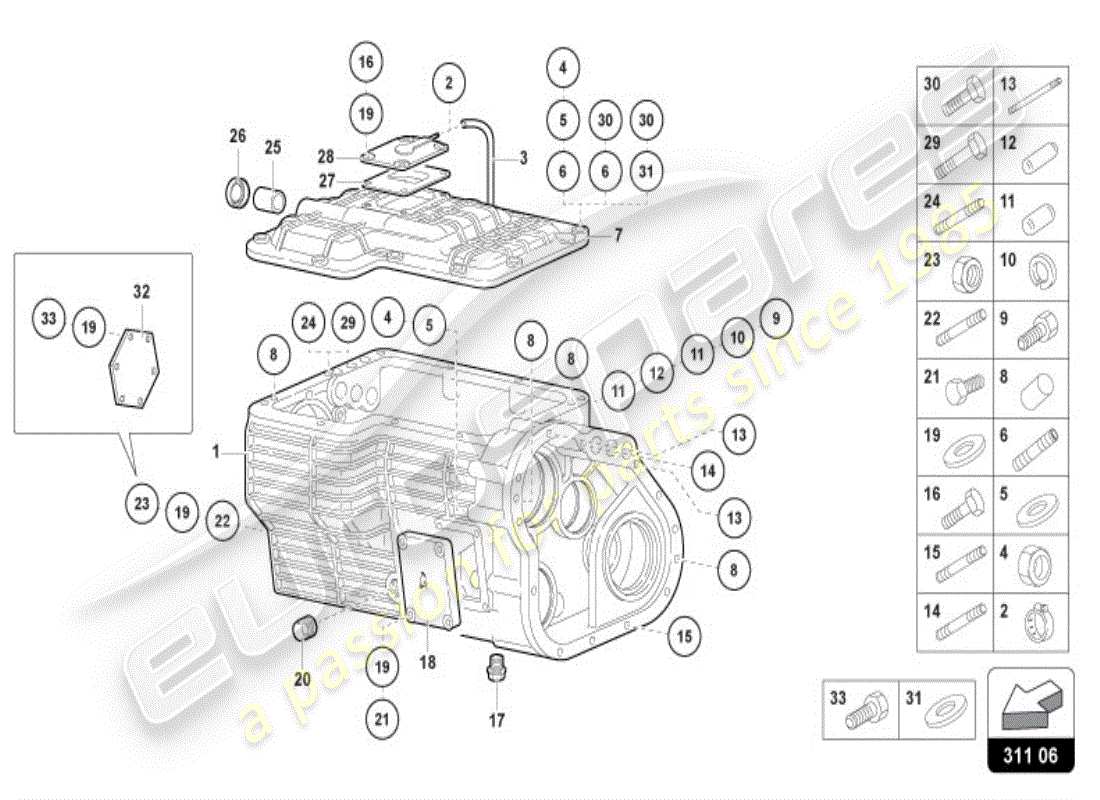

Lamborghini Diablo VT (1997) GEARBOX Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 002430746
GEAR BOX CASE
from £2,187.58
from £2,187.58
# 002
MPN: 008830128
STRAP
Supersession
Supersession
# 003
MPN: 002428649
VENT PIPE
# 004
MPN: 008200806
NUT
Supersession
Supersession
# 005
MPN: 008410805
WASHER
Supersession
Supersession
# 006
-
STUD
NOT FOR THIS MODEL
# 007
MPN: 002424900
COVER
from £353.14
from £353.14
# 008
MPN: 008850806
DOWEL
Supersession
Supersession
# 009
MPN: 008100826
SCREW
from £0.54
from £0.54
# 010
MPN: 008400802
WASHER
from £1.09
from £1.09
# 011
MPN: 002425223
ROD
from £17.97
from £17.97
# 012
MPN: 002425224
ROD
from £18.46
from £18.46
# 013
MPN: 008300895
STUD
from £5.13
from £5.13
# 014
MPN: 008300897
STUD
from £9.55
from £9.55
# 015
MPN: 008300893
STUD
from £12.67
from £12.67
# 016
MPN: 008100604
SCREW
from £1.65
from £1.65
# 017
MPN: 008932203
MAGNETIC PLUG
# 018
MPN: 002435931
COVER
from £21.10
from £21.10
# 019
MPN: 008410602
WASHER
from £26.88
from £26.88
# 020
MPN: 008931802
PLUG
Supersession
Supersession
# 021
MPN: 008100861
SCREW
from £1.90
from £1.90
# 022
MPN: 008300627
STUD
from £8.34
from £8.34
# 023
MPN: 008200604
NUT
Supersession
Supersession
# 024
-
STUD
NOT FOR THIS MODEL
# 025
MPN: 008801612
BUSHING
Supersession
Supersession
# 026
MPN: 008611605
SEAL
from £10.20
from £10.20
# 027
MPN: 002428643
PAN
from £13.32
from £13.32
# 028
MPN: 002428645
COVER
from £81.44
from £81.44
# 029
MPN: 008100807
SCREW
from £0.58
from £0.58
# 030
MPN: 008100803
SCREW
Supersession
Supersession
# 031
MPN: 008410805
WASHER
Supersession
Supersession
# 032
-
COVER
NOT FOR THIS MODEL
# 033
-
SCREW
NOT FOR THIS MODEL
