615.06.00 - BRAKE DISC REAR

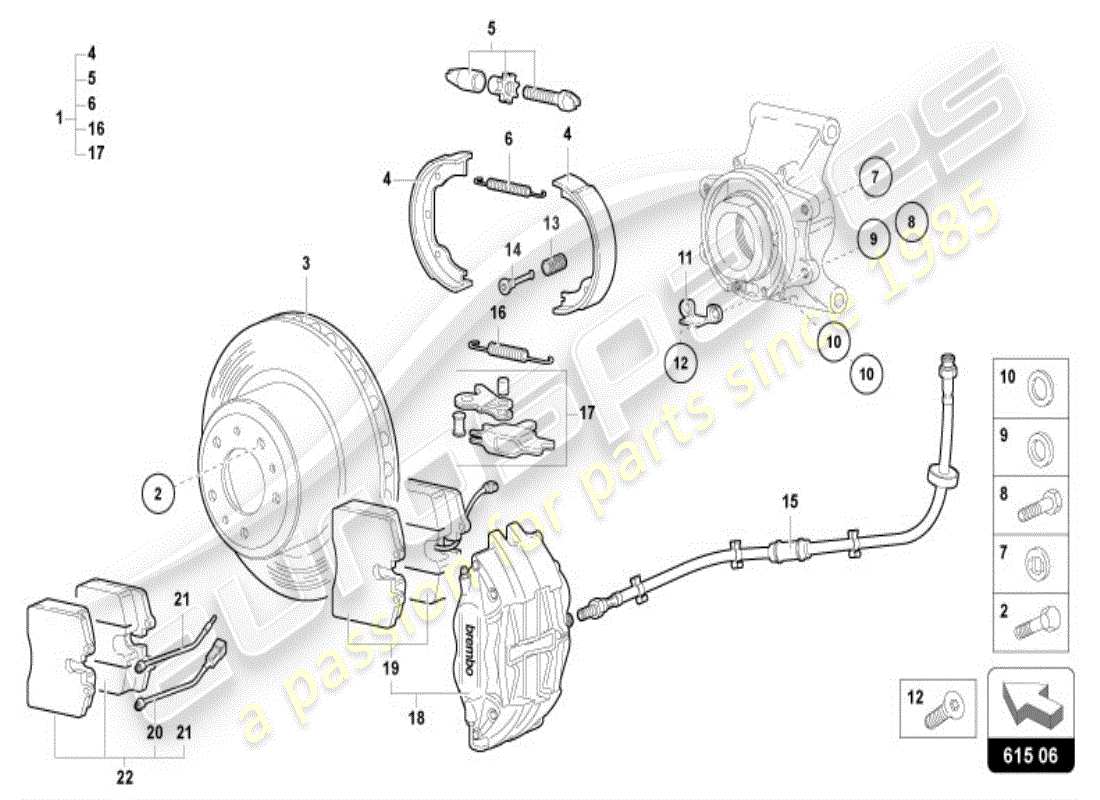

Lamborghini Diablo VT (1997) BRAKE DISC REAR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 010
MPN: 003230720
SHIM
0,1 MM
from £4.25
from £4.25
# 010
MPN: 003230721
SHIM
0,2 MM
from £0.54
from £0.54
# 010
MPN: 003230724
SHIM
0,5 MM
from £0.54
from £0.54
# 010
MPN: 003230727
SHIM
1 MM
from £2.34
from £2.34
# 011
MPN: 003332388
SUPPORT
from £134.40
from £134.40
# 012
MPN: 008701023
SCREW
from £0.53
from £0.53
# 013
MPN: 003332390
SPRING
from £12.84
from £12.84
# 014
MPN: 003332389
PIN
from £33.14
from £33.14
# 015
MPN: 003229882
PIPE
from £106.96
from £106.96
# 016
MPN: 003334933
SPRING
from £25.68
from £25.68
# 017
MPN: 003334932
IDLE LEVER
from £86.82
from £86.82
# 018
MPN: 003233611
BRAKE CALIPER
LEFT
from £901.27
from £901.27
# 018
MPN: 003233612
BRAKE CALIPER
RIGHT
from £1,298.60
from £1,298.60
# 019
-
KIT PADS BRAKE
NOT FOR THIS MODEL
# 020
MPN: 003135644
ELECT CABLE
from £226.11
from £226.11
# 021
MPN: 003135643
ELECT CABLE
from £19.74
from £19.74
# 022
MPN: 003236088
FRO. BRAK. PADS KIT
GALFER
from £421.74
from £421.74
This part replaces part number 003234508 - and 1 more. Click to view details
# 022
MPN: 003236089
FRO. BRAK. PADS KIT
Pagid
Supersession
Supersession
This part replaces part number 003234514
