lamborghini diablo vt (1997) door and exterior mirror parts diagram

837.06.00 - DOOR AND EXTERIOR MIRROR

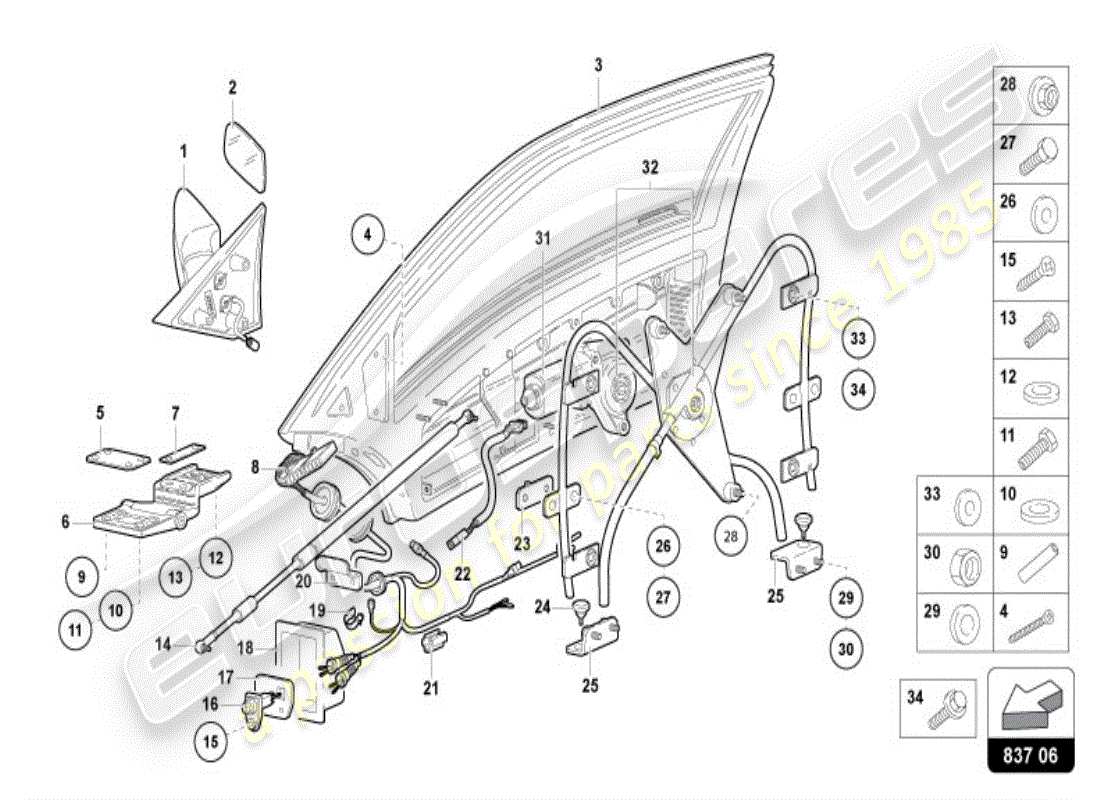

Lamborghini Diablo VT (1997) DOOR AND EXTERIOR MIRROR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 001
                                              -
                                              REAR VIEW MIRROR
                                              SEE ILLUSTRATION 857.05
                                              # 002
                                              -
                                              MIRROR
                                              SEE ILLUSTRATION 857.05
                                              # 003
                                              MPN: 009421006
                                              DOOR
                                              RIGHT
                                              from £3,940.68
                                              from £3,940.68

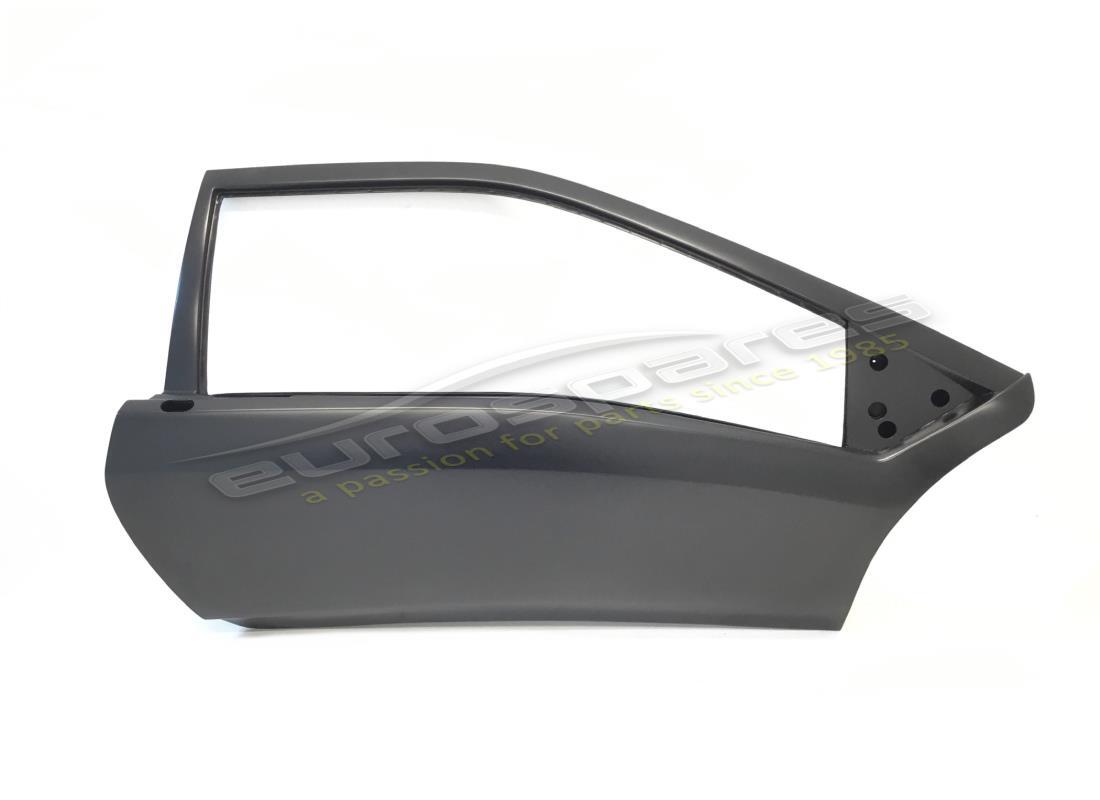

                                              RIGHT DOOR ASSEMBLY Genuine Lamborghini - New (to order)

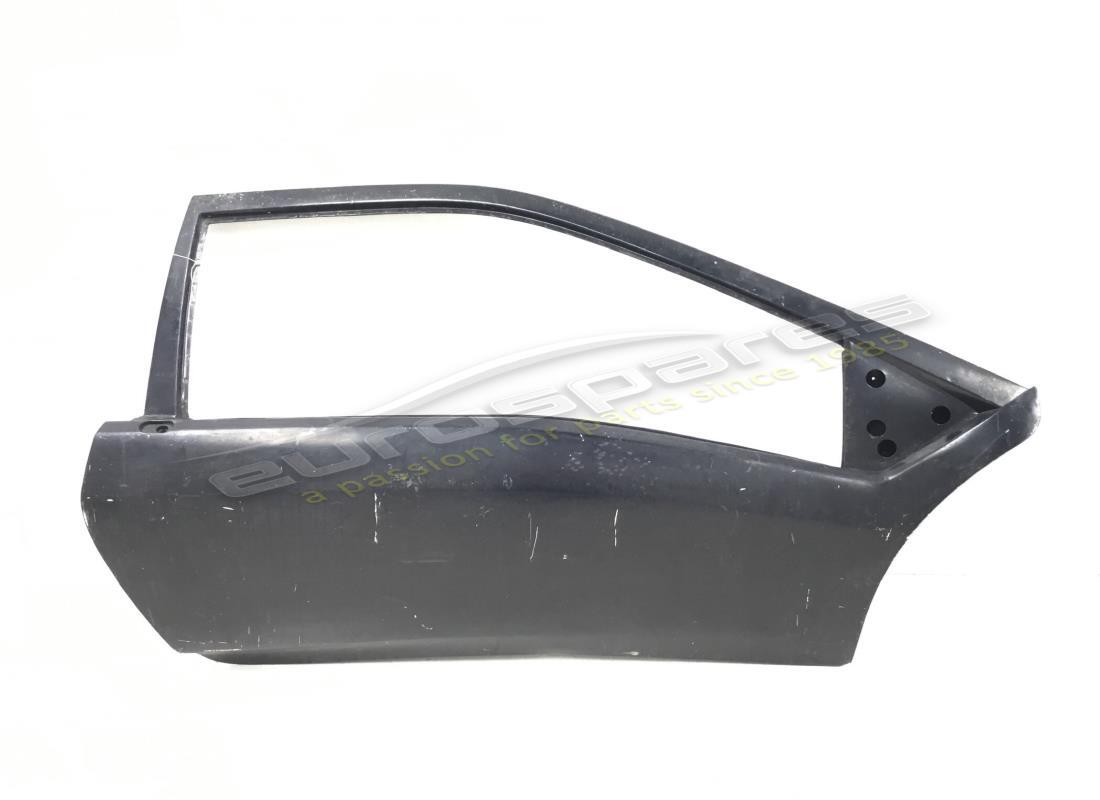

                                              RIGHT DOOR ASSEMBLY Genuine Lamborghini - Used In stock
                                              RIGHT DOOR ASSEMBLY Genuine Lamborghini - New (other) In stock
                                              Some dents and scratches,more pictures on request
                                              # 003
                                              MPN: 009421007
                                              DOOR
                                              LEFT
                                              from £9,487.00
                                              from £9,487.00
                                              LEFT DOOR ASSEMBLY Genuine Lamborghini - New (to order)
                                              # 004
                                              -
                                              SCREW
                                              NOT FOR THIS MODEL
                                              # 005
                                              MPN: 004132051
                                              SHIM
                                              0,8 MM
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 005
                                              MPN: 004132052
                                              SHIM
                                              1 MM
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 005
                                              MPN: 004132053
                                              SHIM
                                              1,2 MM
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 005
                                              MPN: 004132054
                                              SHIM
                                              1,5 MM
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 006
                                              MPN: 009421359
                                              HINGE
                                              RIGHT
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 006
                                              MPN: 009421360
                                              HINGE
                                              LEFT
                                              HINGE Genuine Lamborghini - New (to order)
                                              # 007
                                              MPN: 009421380
                                              SHIM
                                              1 MM
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 007
                                              MPN: 009421381
                                              SHIM
                                              1,5 MM
                                              from £18.05
                                              from £18.05
                                              DOOR HINGE SHIM MM.1.5 Genuine Lamborghini - New (to order)
                                              # 008
                                              MPN: 006135582
                                              ELECT CABLE
                                              LEFT WITHOUT STATIC IGNITION SYSTEM
                                              from £244.97
                                              from £244.97
                                              RH DOOR WIRING Genuine Lamborghini - New (to order)
                                              # 008
                                              MPN: 006135583
                                              ELECT CABLE
                                              RIGHT - WITHOUT STATIC IGNITION SYSTEM
                                              from £260.54
                                              from £260.54
                                              LH DOOR WIRING Genuine Lamborghini - New (to order)
                                              # 008
                                              MPN: 006136333
                                              ELECT CABLE
                                              RIGHT - WITH STATIC IGNITION SYSTEM (EUROPE, USA spec vehicles)
                                              from £104.88
                                              from £104.88
                                              RIGHT DOOR WIRING. Genuine Lamborghini - New (to order)
                                              # 008
                                              MPN: 006136334
                                              ELECT CABLE
                                              LEFT - WITH STATIC IGNITION SYSTEM (EUROPE, USA spec vehicles)
                                              from £111.85
                                              from £111.85
                                              CABLAGGIO PORTA SX. Genuine Lamborghini - New (to order)
                                              # 009
                                              MPN: 008900401
                                              PIN
                                              from £0.53
                                              from £0.53
                                              ELASTIC PIN 4X20 DIN1481 Genuine Lamborghini - New In stock
                                              # 010
                                              MPN: 008400801
                                              WASHER
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 011
                                              MPN: 008100821
                                              SCREW
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 012
                                              MPN: 008411015
                                              WASHER
                                              from £7.22
                                              from £7.22
                                              WASHER TAB FIAT 1119579 Genuine Lamborghini - New (to order)
                                              # 013
                                              MPN: 008101008
                                              SCREW
                                              from £9.89
                                              from £9.89
                                              SCREW M10X30UNI 5739/8G/ZD Genuine Lamborghini - New (to order)
                                              # 014
                                              MPN: 009421031
                                              SHOCK ABSORBER
                                              from £71.40
                                              from £71.40
                                              DOOR SPRING Genuine Lamborghini - New In stock
                                              DOOR SPRING Original Equipment - New In stock
                                              # 016
                                              MPN: 005934450
                                              SWITCH
                                              from £13.81
                                              from £13.81
                                              DOOR SWITCH Genuine Lamborghini - New (to order)
                                              # 017
                                              MPN: 005934447
                                              PLATE
                                              (EUROPE, UK spec vehicles)
                                              from £47.66
                                              from £47.66
                                              DOOR BUTTON SHIM Genuine Lamborghini - New (to order)
                                              # 017
                                              MPN: 005934448
                                              PLATE
                                              (USA spec vehicles)
                                              from £19.89
                                              from £19.89
                                              DOOR BUTTON SHIM Genuine Lamborghini - New (to order)
                                              # 018
                                              MPN: 005934453
                                              SHIELD
                                              from £27.77
                                              from £27.77
                                              DOOR SWITCH CAP Genuine Lamborghini - New (to order)
                                              # 019
                                              MPN: 008830411
                                              STRAP
                                              from £0.85
                                              from £0.85
                                              SPRING Genuine Lamborghini - New In stock
                                              # 020
                                              MPN: 009421613
                                              BRACKET
                                              from £22.55
                                              from £22.55
                                              WIRING FASTENING BRACKET Genuine Lamborghini - New (to order)
                                              # 021
                                              MPN: 008830302
                                              STRAP
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 022
                                              MPN: 009421606
                                              ELECT CABLE
                                              from £16.13
                                              from £16.13
                                              WINDER MOTOR WIRING Genuine Lamborghini - New (to order)
                                              # 023
                                              MPN: 009421607
                                              BRACKET
                                              from £37.95
                                              from £37.95
                                              PIN AND BRACKET Genuine Lamborghini - New (to order)
                                              # 024
                                              MPN: 009421408
                                              RUBBER BUMPER
                                              from £12.90
                                              from £12.90
                                              WINDOW STOP PAD Genuine Lamborghini - New (to order)
                                              # 025
                                              MPN: 009421406
                                              DOOR PLATE
                                              RIGHT
                                              from £30.98
                                              from £30.98
                                              DOOR WINDOW STOP PAD Genuine Lamborghini - New (to order)
                                              # 025
                                              MPN: 009421407
                                              DOOR PLATE
                                              LEFT
                                              from £6.10
                                              from £6.10
                                              DOOR WINDOW STOP PAD Genuine Lamborghini - New (to order)
                                              # 026
                                              MPN: 008400501
                                              WASHER
                                              from £0.51
                                              from £0.51
                                              WASHER 5.8X18X2 Genuine Lamborghini - New In stock
                                              # 027
                                              MPN: 008100504
                                              SCREW
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 028
                                              MPN: 008200614
                                              NUT
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 029
                                              MPN: 008400506
                                              WASHER
                                              from £0.51
                                              from £0.51
                                              FLAT WASHER 5.3X1.5X15 Genuine Lamborghini - New (to order)
                                              # 030
                                              MPN: 008200503
                                              NUT
                                              from £2.07
                                              from £2.07
                                              M5 UNI 7473 ZD SELF-LOCKIN GNUT Genuine Lamborghini - New (to order)
                                              # 031
                                              MPN: 009421604
                                              ELECT MOTOR
                                              RIGHT
                                              from £313.02
                                              from £313.02
                                              RH DOOR MOTOR Genuine Lamborghini - New (to order)
                                              # 031
                                              MPN: 009421605
                                              ELECT MOTOR
                                              LEFT
                                              from £313.02
                                              from £313.02
                                              LH DOOR MOTOR Genuine Lamborghini - New (to order)
                                              # 032
                                              MPN: 009421600
                                              KIT WIND. REGUL.
                                              RIGHT
                                              from £400.39
                                              from £400.39
                                              WINDER MOTOR Genuine Lamborghini - New (to order)
                                              # 032
                                              MPN: 009421601
                                              KIT WINDOW REGUL.
                                              LEFT
                                              from £1,321.72
                                              from £1,321.72
                                              WINDER MOTOR Genuine Lamborghini - New (to order)
                                              # 033
                                              MPN: 008400607
                                              WASHER
                                              Supersession
                                              Supersession
                                              Genuine Lamborghini (no longer available to order)
                                              # 034
                                              MPN: 008700663
                                              SCREW
                                              from £0.51
                                              from £0.51
                                              SCREW M6 Genuine Lamborghini - New (to order)
