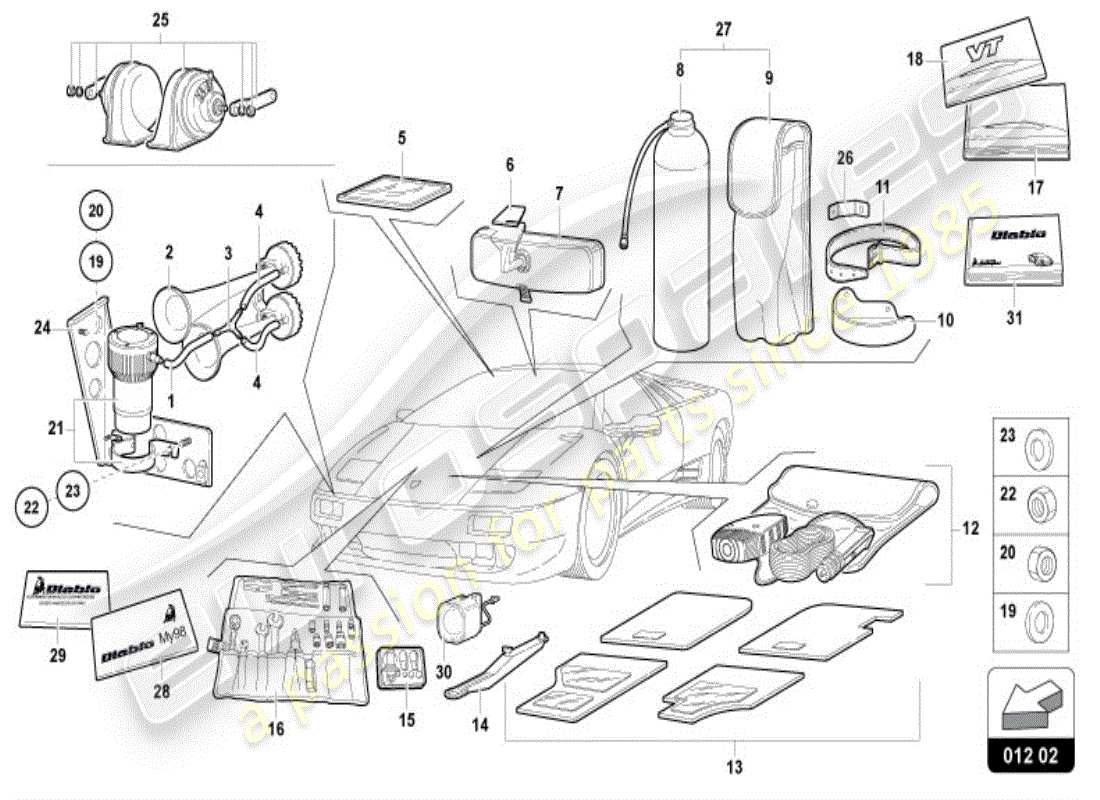

Lamborghini Diablo VT (1998) VEHICLE TOOLS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 001
                        -
                        PIPE
                        NOT FOR THIS MODEL
                        # 002
                        -
                        HORN ASSEMBLY
                        NOT FOR THIS MODEL
                        # 003
                        -
                        CONNECTION
                        NOT FOR THIS MODEL
                        # 004
                        -
                        PIPE
                        NOT FOR THIS MODEL
                        # 005
                        MPN: 009458040
                        MIRROR
                        from £33.06
                        from £33.06
                        SUN VISOR COURTESY MIRROR Genuine Lamborghini - New (to order)
                        # 006
                        MPN: 009490409
                        ADHESIV
                        from £2.32
                        from £2.32
                        INTERNAL REARVIEW MIRROR TWO-SIDED ADHESIVE Genuine Lamborghini - New In stock
                        # 007
                        MPN: 009490415
                        REAR VIEW MIRROR
                        from £312.25
                        from £312.25
                        INTERNAL REARVIEW MIRROR Genuine Lamborghini - New (to order)
                        # 008
                        -
                        INFLATOR
                        NOT FOR THIS MODEL
                        # 009
                        -
                        INFLATOR CASE
                        NOT FOR THIS MODEL
                        # 010
                        MPN: 009411107
                        SUPPORT
                        RIGHT
                        from £52.96
                        from £52.96
                        RH BAG BRACKET Genuine Lamborghini - New (to order)
                        # 010
                        MPN: 009411108
                        SUPPORT
                        LEFT
                        from £122.05
                        from £122.05
                        LH BAG BRACKET Genuine Lamborghini - New (to order)
                        # 011
                        MPN: 004831747
                        BELT
                        from £31.59
                        from £31.59
                        TOOL KIT RIBBON Genuine Lamborghini - New (to order)
                        # 012
                        MPN: 004831304
                        INSPECTION LAMP
                        from £117.21
                        from £117.21
                        INSPECTION BULB Genuine Lamborghini - New (to order)
                        # 013
                        MPN: 009458044
                        CARPETS KIT
                        (UK spec vehicles)
                        from £300.00
                        from £300.00
                        Lamborghini PART 009458044 Genuine Lamborghini - New (to order)
                        Lamborghini PART 009458044 Genuine Lamborghini - Used In stock
                        Left mat for rhd
                        # 013
                        MPN: 009458058
                        CARPETS KIT
                        (EUROPE, USA spec vehicles)
                        Lamborghini PART 009458058 Genuine Lamborghini - New (to order)
                        # 014
                        MPN: 004129973
                        TOW HOOK
                        from £839.79
                        from £839.79
                        This part replaces part number 004130485
                        FRONT TOW HITCH ASSEMBLY Genuine Lamborghini - New (to order)
                        # 015
                        MPN: 004830510
                        KIT BULBS
                        (EUROPE, UK spec vehicles)
                        Lamborghini PART 004830510 Genuine Lamborghini - New (to order)
                        # 015
                        MPN: 004832717
                        KIT BULBS
                        (USA spec vehicles)
                        from £44.77
                        from £44.77
                        SPARE BULB CONTAINER Genuine Lamborghini - New (to order)
                        # 016
                        MPN: 004830512
                        TOOL KIT W/BAG
                        Supersession
                        Supersession
                        Genuine Lamborghini (no longer available to order)
                        # 017
                        MPN: 901325701
                        OWNER BOOK
                        (EUROPE, UK spec vehicles)
                        from £458.77
                        from £458.77
                        DIABLO OWNER MANUAL Genuine Lamborghini - New (to order)
                        # 017
                        MPN: 901327101
                        OWNER BOOK
                        (USA spec vehicles)
                        from £137.72
                        from £137.72
                        DIABLO USA OWNER HANDBOOK Genuine Lamborghini - New (to order)
                        # 018
                        MPN: 901325710
                        DIABLO VT OWNER BOOK
                        from £327.78
                        from £327.78
                        DIABLO VT OWNER MANUAL UPDATE Genuine Lamborghini - New (to order)
                        # 019
                        -
                        WASHER
                        NOT FOR THIS MODEL
                        # 020
                        -
                        NUT
                        NOT FOR THIS MODEL
                        # 021
                        -
                        KIT AIR COMPRESSOR
                        NOT FOR THIS MODEL
                        # 022
                        -
                        NUT
                        NOT FOR THIS MODEL
                        # 023
                        -
                        WASHER
                        NOT FOR THIS MODEL
                        # 024
                        -
                        SUPPORT
                        NOT FOR THIS MODEL
                        # 025
                        MPN: 005935217
                        HORN ASSY
                        from £250.00
                        from £250.00
                        ELECTRIC HORNS (1 KIT) Genuine Lamborghini - New In stock
                        # 026
                        MPN: 004836126
                        SUPPORT
                        from £25.72
                        from £25.72
                        TOOL BAG LACE BRACKET Genuine Lamborghini - New (to order)
                        # 027
                        MPN: 004834670
                        INFLATOR
                        Supersession
                        Supersession
                        Genuine Lamborghini (no longer available to order)
                        # 028
                        -
                        BOOK
                        NOT FOR THIS MODEL
                        # 028
                        MPN: 901325733
                        BOOK
                        My 98
                        from £458.77
                        from £458.77
                        DIABLO MY98 OWNER MANUAL Genuine Lamborghini - New (to order)
                        # 029
                        -
                        BOOK
                        NOT FOR THIS MODEL
                        # 029
                        MPN: 901325725
                        BOOK
                        UPDATING
                        from £327.78
                        from £327.78
                        DIABLO AIR BAG MANUAL UPDATE Genuine Lamborghini - New In stock
                        # 030
                        -
                        ANTITHEFT SIREN
                        NOT FOR THIS MODEL
                        # 030
                        MPN: 0061001924
                        ANTITHEFT SIREN
                        from £115.80
                        from £115.80
                        ALARM SIREN Genuine Lamborghini - New (to order)
                        ALARM SIREN Genuine Lamborghini - Used In stock
                        # 031
                        -
                        ?DIABLO ? OWNER B.
                        NOT FOR THIS MY
