201.04.00 - FUEL TANK

Lamborghini Diablo VT (1998) FUEL TANK Parts Diagram

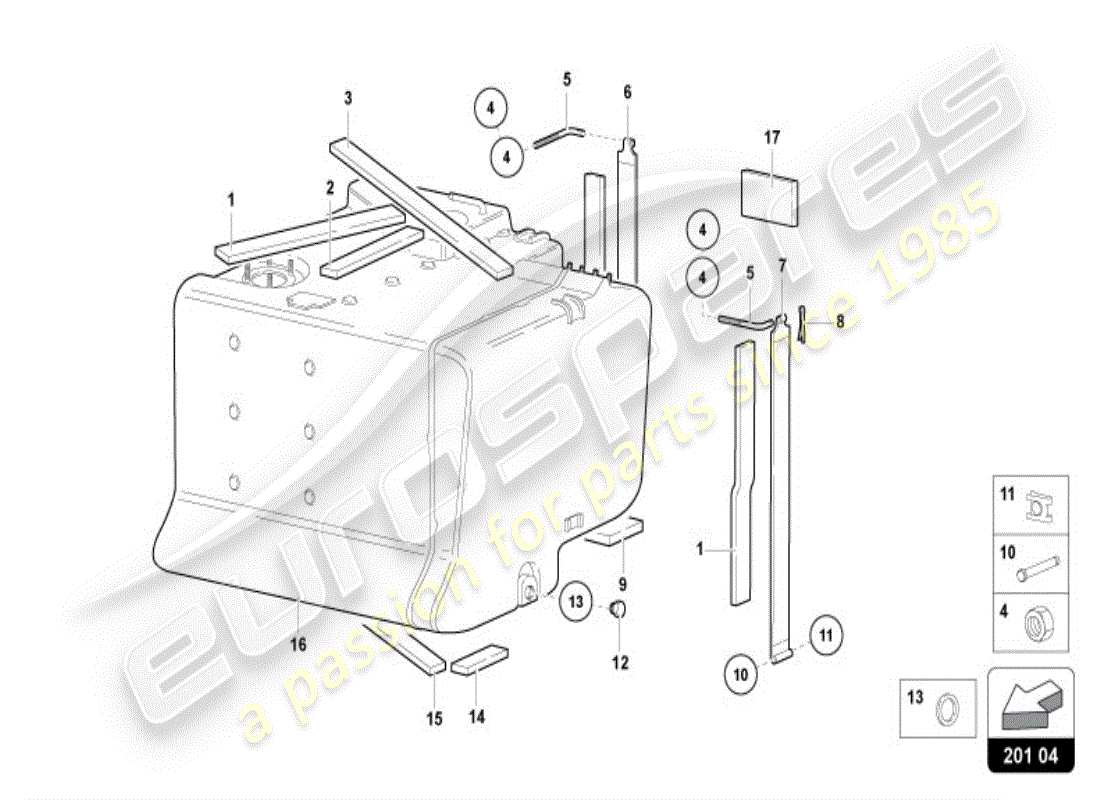

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 001
                                MPN: 006231704
                                GASKET
                                from £46.94
                                from £46.94
                                AERSTOP FA CN/20 5 MM Genuine Lamborghini - New In stock
                                # 002
                                MPN: 009453124
                                GASKET
                                from £4.58
                                from £4.58
                                PETROL PUMP GUARD SEAL Genuine Lamborghini - New (to order)
                                # 003
                                MPN: 006231703
                                GASKET
                                GASKET Genuine Lamborghini - New (to order)
                                # 004
                                MPN: 008200808
                                NUT
                                Supersession
                                Supersession
                                Genuine Lamborghini (no longer available to order)
                                # 005
                                MPN: 006226884
                                TIE ROD
                                Supersession
                                Supersession
                                Genuine Lamborghini (no longer available to order)
                                # 006
                                MPN: 006233764
                                STRAP
                                from £22.15
                                from £22.15
                                CHASSIS TANK CLIP Genuine Lamborghini - New (to order)
                                # 006
                                MPN: 006237360
                                STRAP
                                from £49.75
                                from £49.75
                                CHASSIS TANK FASTENING CLIP Genuine Lamborghini - New (to order)
                                # 007
                                MPN: 006229506
                                STRAP
                                from £25.11
                                from £25.11
                                TANK CHASSIS CLIP Genuine Lamborghini - New (to order)
                                # 008
                                MPN: 008820304
                                SPLIT PIN
                                Supersession
                                Supersession
                                Genuine Lamborghini (no longer available to order)
                                # 009
                                MPN: 006231701
                                GASKET
                                from £37.55
                                from £37.55
                                AERSTOP FA CN/20 Genuine Lamborghini - New (to order)
                                # 010
                                MPN: 006233763
                                PIN
                                from £6.45
                                from £6.45
                                TANK CLIP PIN Genuine Lamborghini - New (to order)
                                # 011
                                MPN: 008580604
                                CLIP
                                from £1.37
                                from £1.37
                                CLIP 11X14.2X6 UNI 8834-6 Genuine Lamborghini - New (to order)
                                # 012
                                MPN: 008931203
                                PLUG
                                from £9.62
                                from £9.62
                                PLUG D.12X1.25X9 CH 19SS Genuine Lamborghini - New (to order)
                                PLUG D.12X1.25X9 CH 19SS Genuine Lamborghini - Used In stock
                                # 014
                                MPN: 006231706
                                GASKET
                                from £26.33
                                from £26.33
                                AERSTOP FA CN/20 Genuine Lamborghini - New In stock
                                # 015
                                MPN: 006231702
                                GASKET
                                from £3.13
                                from £3.13
                                AERSTOP FA CN/20 Genuine Lamborghini - New (to order)
                                # 016
                                MPN: 0062001156
                                FUEL TANK
                                WITH ADAPTER: SEE ILLUSTRATION 133.15 REF. 17
                                from £2,101.57
                                from £2,101.57
                                FUEL TANK COMPLETE Genuine Lamborghini - New (to order)
                                # 016
                                MPN: 0062001895
                                FUEL TANK
                                from £2,215.65
                                from £2,215.65
                                FUEL TANK COMPLETE Genuine Lamborghini - New (to order)
                                # 016
                                MPN: 006233289
                                FUEL TANK
                                from £1,663.87
                                from £1,663.87
                                FUEL TANK WITH PIPES& FILLER Genuine Lamborghini - New (to order)
                                # 017
                                -
                                SHIELD
                                NOT FOR THIS MODEL
                                # 017
                                MPN: 006237368
                                SHIELD
                                from £12.44
                                from £12.44
                                GUARD Genuine Lamborghini - New (to order)
