lamborghini diablo vt (1998) viscous joint parts diagram

301.05.00 - VISCOUS JOINT

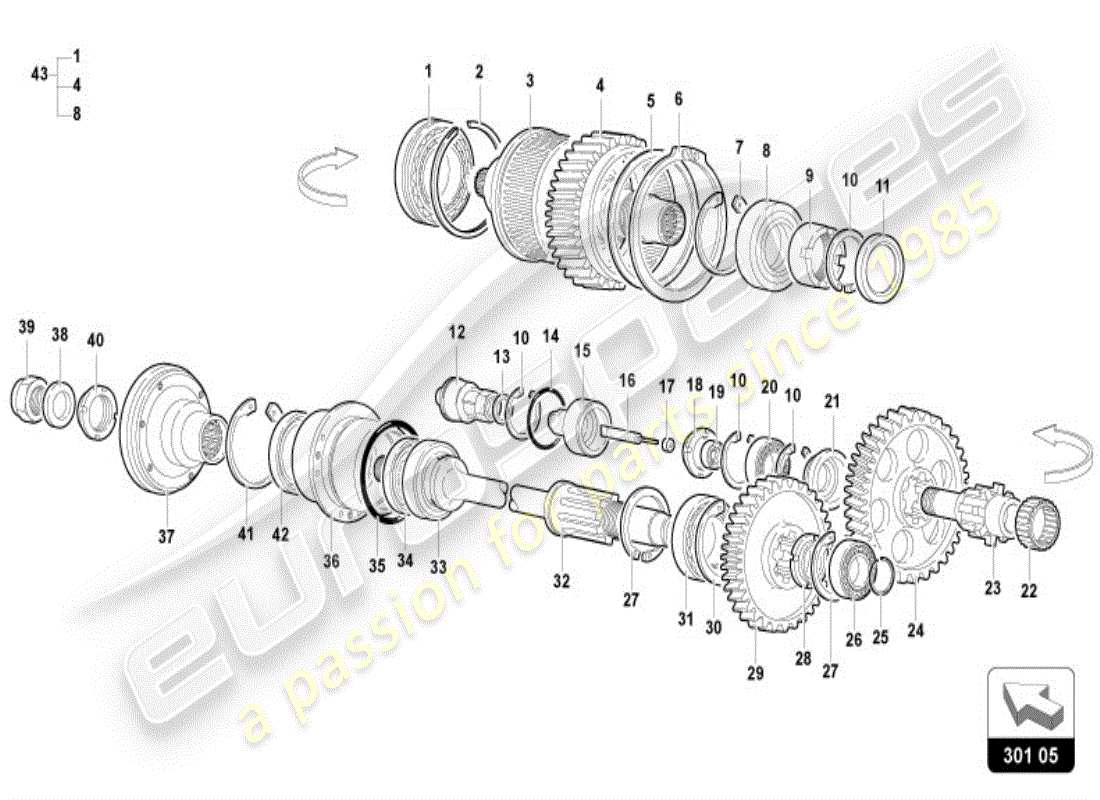

Lamborghini Diablo VT (1998) VISCOUS JOINT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 001
                                                            MPN: 008525013
                                                            BEARING
                                                            from £177.53
                                                            from £177.53
                                                            BEARING Genuine Lamborghini - New (to order)
                                                            # 002
                                                            MPN: 008589001
                                                            RETAINER RING
                                                            from £2.24
                                                            from £2.24
                                                            RETAINING RING Genuine Lamborghini - New (to order)
                                                            # 003
                                                            -
                                                            VISCOUS JOINT
                                                            NOT FOR THIS MODEL
                                                            # 003
                                                            MPN: 002434501
                                                            VISCOUS JOINT
                                                            UNTIL GEARBOX NUMBER 1474
                                                            from £979.47
                                                            from £979.47
                                                            CV JOINT Genuine Lamborghini - New (to order)
                                                            # 003
                                                            MPN: 002437746
                                                            VISCOUS JOINT
                                                            FROM GEARBOX NUMBER 1475
                                                            Lamborghini PART 002437746 Genuine Lamborghini - New (to order)
                                                            # 004
                                                            -
                                                            GEAR
                                                            4WD SEE REF.43
                                                            # 004
                                                            MPN: 002434502
                                                            GEAR
                                                            from £635.82
                                                            from £635.82
                                                            CV JOINT CROWN GEAR Genuine Lamborghini - New (to order)
                                                            # 004
                                                            MPN: 002434637
                                                            GEAR
                                                            Gear Transmission End
                                                            from £222.83
                                                            from £222.83
                                                            BUSHING Genuine Lamborghini - New (to order)
                                                            # 005
                                                            -
                                                            SPACER
                                                            NOT FOR THIS MODEL
                                                            # 005
                                                            MPN: 002434503
                                                            SPACER
                                                            UNTIL GEARBOX NUMBER 1474
                                                            from £327.66
                                                            from £327.66
                                                            O-RING Genuine Lamborghini - New (to order)
                                                            # 005
                                                            MPN: 002437743
                                                            SPACER
                                                            FROM GEARBOX NUMBER 1475
                                                            SPACER Genuine Lamborghini - New (to order)
                                                            # 006
                                                            -
                                                            RETAINER RING
                                                            NOT FOR THIS MODEL
                                                            # 007
                                                            MPN: 008578001
                                                            RETAINER RING
                                                            from £3.86
                                                            from £3.86
                                                            O-RING I 80 UNI 3654 Genuine Lamborghini - New In stock
                                                            # 008
                                                            MPN: 008514001
                                                            BEARING
                                                            from £93.80
                                                            from £93.80
                                                            BEARING Genuine Lamborghini - New (to order)
                                                            # 009
                                                            MPN: 008254004
                                                            RING
                                                            from £90.51
                                                            from £90.51
                                                            M40X1..5 SPECIAL RING NUT Genuine Lamborghini - New (to order)
                                                            # 010
                                                            MPN: 008575201
                                                            RETAINER RING
                                                            from £0.73
                                                            from £0.73
                                                            O-RING I 52 UNI 3654 Genuine Lamborghini - New In stock
                                                            # 011
                                                            MPN: 008613601
                                                            RING
                                                            Supersession
                                                            Supersession
                                                            Genuine Lamborghini (no longer available to order)
                                                            # 012
                                                            -
                                                            ODOMETER POSTPONEMENT
                                                            NOT FOR THIS MODEL
                                                            # 013
                                                            -
                                                            WASHER
                                                            NOT FOR THIS MODEL
                                                            # 014
                                                            MPN: 008605002
                                                            SEAL RING
                                                            from £0.67
                                                            from £0.67
                                                            RING 51 MM OR Genuine Lamborghini - New (to order)
                                                            # 015
                                                            MPN: 002436927
                                                            COVER
                                                            from £133.12
                                                            from £133.12
                                                            GEARBOX COVER Genuine Lamborghini - New (to order)
                                                            # 016
                                                            -
                                                            POST
                                                            NOT FOR THIS MODEL
                                                            # 017
                                                            -
                                                            TERMINAL
                                                            NOT FOR THIS MODEL
                                                            # 018
                                                            MPN: 008252502
                                                            RING
                                                            from £101.99
                                                            from £101.99
                                                            M25X1.5 SPECIAL RINGNUT Genuine Lamborghini - New (to order)
                                                            # 019
                                                            -
                                                            SEAL RING
                                                            NOT FOR THIS MODEL
                                                            # 020
                                                            MPN: 008512500
                                                            BEARING
                                                            from £78.96
                                                            from £78.96
                                                            BEARING Genuine Lamborghini - New In stock
                                                            BEARING Eurospares Approved Part - New In stock
                                                            # 021
                                                            MPN: 002430936
                                                            SPACER
                                                            from £42.53
                                                            from £42.53
                                                            SPACER Genuine Lamborghini - New (to order)
                                                            # 022
                                                            MPN: 008523517
                                                            ROLLER CAGE
                                                            from £13.16
                                                            from £13.16
                                                            BEARING Genuine Lamborghini - New (to order)
                                                            # 023
                                                            MPN: 002431869
                                                            POST
                                                            from £3,190.85
                                                            from £3,190.85
                                                            CV JOINT ENGAGE SHAFT Genuine Lamborghini - New (to order)
                                                            # 024
                                                            MPN: 002433672
                                                            GEAR
                                                            from £1,278.91
                                                            from £1,278.91
                                                            CRANKSHAFT IDLE WHEEL Genuine Lamborghini - New (to order)
                                                            # 025
                                                            MPN: 008582501
                                                            RETAINER RING
                                                            from £3.78
                                                            from £3.78
                                                            O-RING E 25 UNI 7435-75 Genuine Lamborghini - New (to order)
                                                            # 026
                                                            MPN: 008522509
                                                            BEARING
                                                            from £112.94
                                                            from £112.94
                                                            BEARING 25X62X17 Genuine Lamborghini - New In stock
                                                            # 027
                                                            MPN: 008576601
                                                            RETAINER RING
                                                            from £0.53
                                                            from £0.53
                                                            O-RING I 62 UNI 3654 Genuine Lamborghini - New (to order)
                                                            # 028
                                                            MPN: 008253005
                                                            RING
                                                            from £12.35
                                                            from £12.35
                                                            RING NUT MM 30X1,5 Genuine Lamborghini - New (to order)
                                                            # 029
                                                            MPN: 002433673
                                                            GEAR
                                                            from £1,103.55
                                                            from £1,103.55
                                                            CRANKSHAFT DRIVE GEAR Genuine Lamborghini - New (to order)
                                                            # 030
                                                            -
                                                            RETAINER RING
                                                            NOT FOR THIS MODEL
                                                            # 031
                                                            MPN: 008523516
                                                            BEARING
                                                            from £38.37
                                                            from £38.37
                                                            BEARING Genuine Lamborghini - New (to order)
                                                            # 032
                                                            MPN: 002434628
                                                            SEAL RING
                                                            from £401.44
                                                            from £401.44
                                                            FRONT PROPELLER SHAFT Genuine Lamborghini - New (to order)
                                                            # 033
                                                            MPN: 008513000
                                                            BEARING
                                                            from £49.58
                                                            from £49.58
                                                            BEARING Genuine Lamborghini - New (to order)
                                                            # 034
                                                            -
                                                            SEAL RING
                                                            NOT FOR THIS MODEL
                                                            # 035
                                                            MPN: 008606502
                                                            SEAL RING
                                                            from £0.54
                                                            from £0.54
                                                            OR RING Genuine Lamborghini - New In stock
                                                            # 036
                                                            MPN: 002434637
                                                            SHAFT FLANGRY
                                                            from £222.83
                                                            from £222.83
                                                            BUSHING Genuine Lamborghini - New (to order)
                                                            # 037
                                                            MPN: 002434627
                                                            WASHER
                                                            from £702.99
                                                            from £702.99
                                                            FRONT PROPELLER SHAFT & GEARBO X OUTPUT Genuine Lamborghini - New (to order)
                                                            # 038
                                                            -
                                                            WASHER
                                                            NOT FOR THIS MODEL
                                                            # 039
                                                            -
                                                            RING
                                                            NOT FOR THIS MODEL
                                                            # 040
                                                            MPN: 008252505
                                                            RING
                                                            from £50.69
                                                            from £50.69
                                                            D.25X1.5 UNI 5343 RING NUT Genuine Lamborghini - New (to order)
                                                            # 041
                                                            MPN: 008575501
                                                            RETAINER RING
                                                            from £0.91
                                                            from £0.91
                                                            SEEGER I 55 UNI 3654 Genuine Lamborghini - New In stock
                                                            # 043
                                                            -
                                                            VISCOUS COUPLING KIT
                                                            NOT FOR THIS MODEL
                                                            # 043
                                                            MPN: 0024001009
                                                            VISCOUS COUPLING KIT
                                                            from £1,282.24
                                                            from £1,282.24
                                                            CV JOINT NUT SCREW Genuine Lamborghini - New (to order)
