820.03.00 - Air Conditioning

Lamborghini Diablo VT (1998) AIR CONDITIONING Parts Diagram

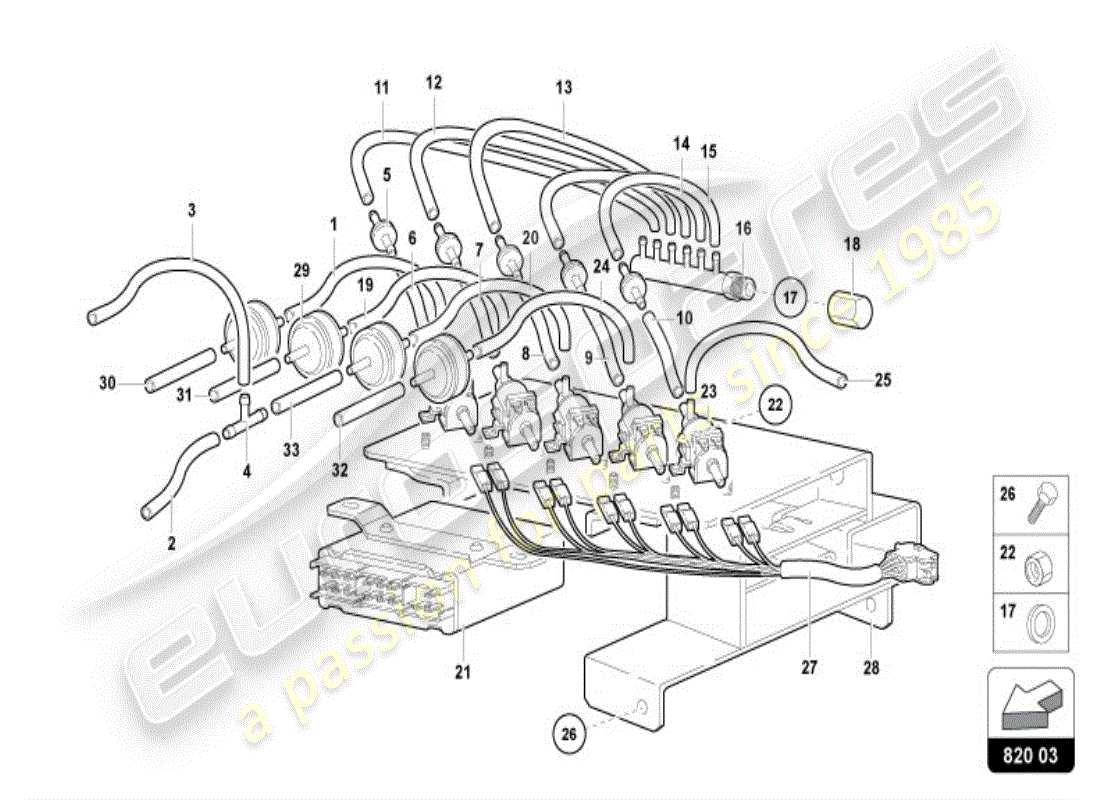

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 001
                                                MPN: 009414613
                                                RED PIPE
                                                from £5.78
                                                from £5.78
                                                SOLENOID ACTUATOR VACUUM PIPE Genuine Lamborghini - New (to order)
                                                # 001
                                                MPN: 009414621
                                                RED PIPE
                                                from £5.78
                                                from £5.78
                                                3 WAY ACTUATOR VACUUM PIPE Genuine Lamborghini - New (to order)
                                                # 002
                                                MPN: 009414621
                                                BLUE PIPE
                                                from £5.78
                                                from £5.78
                                                3 WAY ACTUATOR VACUUM PIPE Genuine Lamborghini - New (to order)
                                                # 002
                                                MPN: 009414650
                                                BLUE PIPE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=850 (L) Genuine Lamborghini - New (to order)
                                                # 003
                                                MPN: 009414620
                                                BLUE PIPE
                                                from £5.78
                                                from £5.78
                                                3 WAY ACTUATOR VACUUM PIPE Genuine Lamborghini - New (to order)
                                                # 003
                                                MPN: 009414649
                                                BLUE PIPE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=170(L) Genuine Lamborghini - New (to order)
                                                # 004
                                                MPN: 007014169
                                                CONNECTION
                                                from £15.81
                                                from £15.81
                                                T UNION T S4 76000 Genuine Lamborghini - New (to order)
                                                # 005
                                                -
                                                NON-RETURN VALVE
                                                NOT FOR THIS MODEL
                                                # 005
                                                MPN: 004621574
                                                NON-RETURN VALVE
                                                from £12.52
                                                from £12.52
                                                VALVE A822 EPG 2108 Genuine Lamborghini - New (to order)
                                                # 006
                                                -
                                                RED PIPE
                                                NOT FOR THIS MODEL
                                                # 006
                                                MPN: 009414612
                                                RED PIPE
                                                from £5.78
                                                from £5.78
                                                ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                                                # 007
                                                -
                                                GREEN PIPE
                                                NOT FOR THIS MODEL
                                                # 007
                                                MPN: 009414611
                                                GREEN PIPE
                                                from £5.78
                                                from £5.78
                                                ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                                                # 008
                                                -
                                                BLUE PIPE
                                                NOT FOR THIS MODEL
                                                # 008
                                                MPN: 009414610
                                                BLUE PIPE
                                                from £5.78
                                                from £5.78
                                                ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                                                # 009
                                                -
                                                WHITE PIPE
                                                NOT FOR THIS MODEL
                                                # 009
                                                MPN: 009414609
                                                WHITE PIPE
                                                from £5.78
                                                from £5.78
                                                ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                                                # 010
                                                -
                                                BLACK PIPE
                                                NOT FOR THIS MODEL
                                                # 010
                                                MPN: 009414608
                                                BLACK PIPE
                                                from £5.78
                                                from £5.78
                                                ONE-WAY VALVE VACUUMPIPE Genuine Lamborghini - New (to order)
                                                # 011
                                                MPN: 009414601
                                                RED PIPE
                                                from £5.78
                                                from £5.78
                                                6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                # 011
                                                MPN: 009414642
                                                RED PIPE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=140 (R) Genuine Lamborghini - New (to order)
                                                # 012
                                                MPN: 009414602
                                                GREEN PIPE
                                                from £5.78
                                                from £5.78
                                                6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                # 012
                                                MPN: 009414644
                                                GREEN PIPE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=140 (V) Genuine Lamborghini - New (to order)
                                                # 013
                                                MPN: 009414604
                                                BLUE PIPE
                                                from £5.78
                                                from £5.78
                                                6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                # 013
                                                MPN: 009414647
                                                BLUE PIPE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=140(L) Genuine Lamborghini - New (to order)
                                                # 014
                                                MPN: 009414603
                                                WHITE PIPE
                                                from £5.78
                                                from £5.78
                                                6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                # 014
                                                MPN: 009414651
                                                WHITE PIPE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=160 (B) Genuine Lamborghini - New (to order)
                                                # 015
                                                MPN: 009414605
                                                BLACK PIPE
                                                from £5.78
                                                from £5.78
                                                6 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                # 015
                                                MPN: 009414653
                                                BLACK PIPE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=170 (N) Genuine Lamborghini - New (to order)
                                                # 016
                                                MPN: 004621565
                                                CONNECTION
                                                from £51.44
                                                from £51.44
                                                6-WAY VACUUM MANIFOLD Genuine Lamborghini - New (to order)
                                                # 017
                                                MPN: 008401008
                                                WASHER
                                                Supersession
                                                Supersession
                                                Genuine Lamborghini (no longer available to order)
                                                # 018
                                                MPN: 009414606
                                                PLUG
                                                from £45.42
                                                from £45.42
                                                6 WAY CAP Genuine Lamborghini - New (to order)
                                                # 019
                                                MPN: 009414614
                                                GREEN PIPE
                                                from £5.78
                                                from £5.78
                                                SOLENOID ACTUATOR VACUUM PIPE Genuine Lamborghini - New (to order)
                                                # 019
                                                MPN: 009414645
                                                GREEN PIPE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=160(V) Genuine Lamborghini - New (to order)
                                                # 020
                                                MPN: 009414615
                                                BLUE PIPE
                                                from £5.78
                                                from £5.78
                                                SOLENOID 3 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                # 020
                                                MPN: 009414648
                                                BLUE PIPE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=125 (L) Genuine Lamborghini - New (to order)
                                                # 021
                                                MPN: 004526659
                                                ELECTRONIC CON. U.
                                                from £3,053.95
                                                from £3,053.95
                                                CONTROL UNIT Genuine Lamborghini - New (to order)
                                                # 022
                                                MPN: 008200401
                                                NUT
                                                from £0.51
                                                from £0.51
                                                M4 UNI 5587/5S/Z NUT Genuine Lamborghini - New (to order)
                                                # 023
                                                MPN: 004627300
                                                ELECTRO-VALVE
                                                ELECTRIC VALVE Genuine Lamborghini - New (to order)
                                                # 024
                                                MPN: 009414616
                                                WHITE PIPE
                                                from £5.78
                                                from £5.78
                                                SOLENOID 3 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                # 024
                                                MPN: 009414651
                                                WHITE PIPE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=160 (B) Genuine Lamborghini - New (to order)
                                                # 025
                                                MPN: 009414617
                                                BLACK PIPE
                                                from £5.78
                                                from £5.78
                                                SOLENOID 3 WAY VACUUM PIPE Genuine Lamborghini - New (to order)
                                                # 025
                                                MPN: 009414654
                                                BLACK PIPE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=755 (N) Genuine Lamborghini - New (to order)
                                                # 026
                                                MPN: 008700449
                                                SCREW
                                                from £2.09
                                                from £2.09
                                                SCREW 1/56819/01 RIF. FIAT Genuine Lamborghini - New (to order)
                                                # 027
                                                MPN: 006130618
                                                ELECT CABLE
                                                from £77.03
                                                from £77.03
                                                FAN WIRING Genuine Lamborghini - New (to order)
                                                # 028
                                                MPN: 009414628
                                                SUPPORT
                                                from £167.54
                                                from £167.54
                                                SOLENOID PLATE Genuine Lamborghini - New (to order)
                                                # 028
                                                MPN: 009914601
                                                SUPPORT
                                                SUPPORT Genuine Lamborghini - New (to order)
                                                # 029
                                                MPN: 009414633
                                                VALVE
                                                from £104.88
                                                from £104.88
                                                E.P.G. DELAY VALVE Genuine Lamborghini - New (to order)
                                                # 030
                                                -
                                                FLEX. HOSE
                                                NON AVAILABLE
                                                # 030
                                                MPN: 009414643
                                                FLEX. HOSE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=190 (R) Genuine Lamborghini - New (to order)
                                                # 031
                                                -
                                                FLEX. HOSE
                                                NON AVAILABLE
                                                # 031
                                                MPN: 009414646
                                                FLEX. HOSE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=850 (V) Genuine Lamborghini - New (to order)
                                                # 032
                                                -
                                                FLEX. HOSE
                                                NON AVAILABLE
                                                # 032
                                                MPN: 009414652
                                                FLEX. HOSE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=735 (B) Genuine Lamborghini - New (to order)
                                                # 033
                                                -
                                                FLEX. HOSE
                                                NON AVAILABLE
                                                # 033
                                                MPN: 009414648
                                                FLEX. HOSE
                                                from £88.90
                                                from £88.90
                                                COMPLESSIVO TUBO L=125 (L) Genuine Lamborghini - New (to order)
