lamborghini diablo vt (1998) interior decor parts diagram

868.07.00 - INTERIOR DECOR

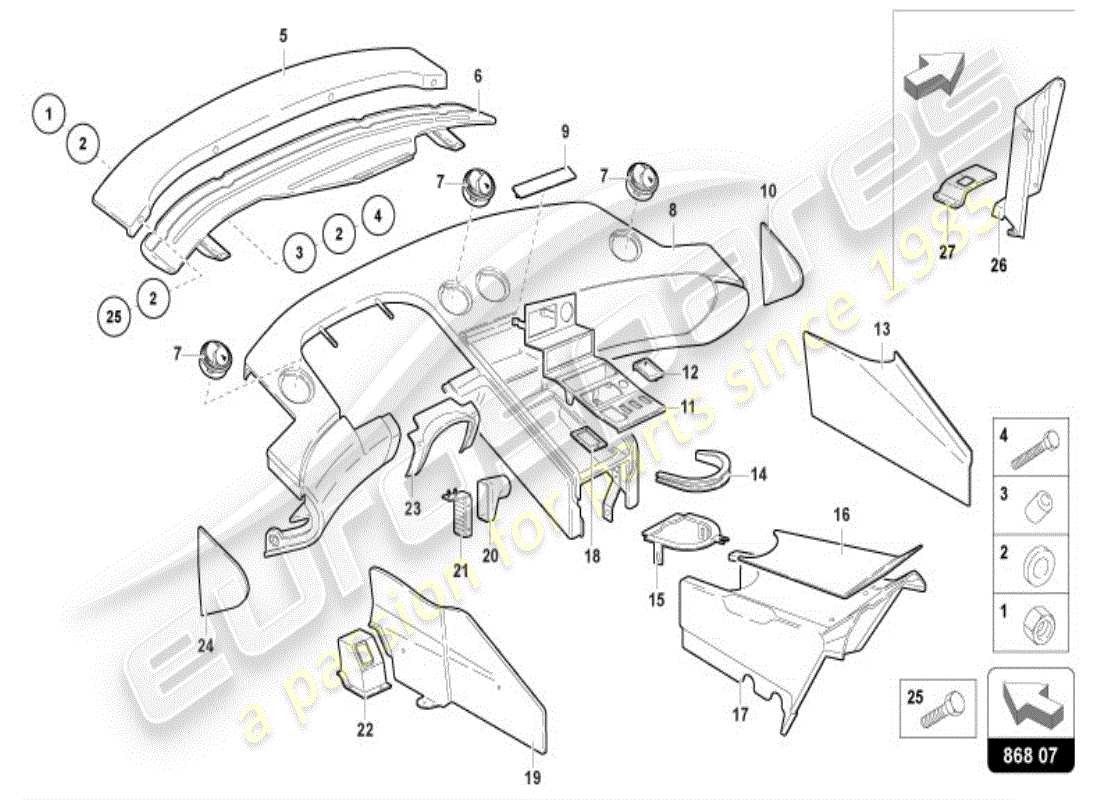

Lamborghini Diablo VT (1998) INTERIOR DECOR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      MPN: 008200606
                                      AIRBAG COVERING
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 002
                                      MPN: 008400606
                                      WASHER
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 003
                                      MPN: 009414129
                                      SPACER
                                      from £53.87
                                      from £53.87
                                      WINDSCREEN AIR VENT DASH SHIM Genuine Lamborghini - New (to order)
                                      # 004
                                      MPN: 008100636
                                      SCREW
                                      from £0.53
                                      from £0.53
                                      SCREW M6X1X35 UNI 5739/8G/ Genuine Lamborghini - New (to order)
                                      # 005
                                      MPN: 009914302
                                      PANEL
                                      from £108.16
                                      from £108.16
                                      FRONT DASHBOARD COVER Genuine Lamborghini - New (to order)
                                      # 006
                                      MPN: 009414019
                                      CONVEYOR
                                      (EUROPE, USA spec vehicles)
                                      from £1,605.84
                                      from £1,605.84
                                      WINDSCREEN AIR VENT Genuine Lamborghini - New (to order)
                                      # 006
                                      MPN: 009414033
                                      CONVEYOR
                                      (UK spec vehicles)
                                      from £786.52
                                      from £786.52
                                      AIR VENT UNDER WINDSCREEN Genuine Lamborghini - New (to order)
                                      # 007
                                      MPN: 009914500
                                      AIR VENT
                                      from £52.64
                                      from £52.64
                                      AIR VENT Genuine Lamborghini - New (to order)
                                      # 008
                                      MPN: 009914100
                                      DASHBOARD PANEL
                                      (EUROPE, USA spec vehicles)
                                      from £597.94
                                      from £597.94
                                      PLAIN DASHBOARD Genuine Lamborghini - New (to order)
                                      # 008
                                      MPN: 009914115
                                      DASHBOARD PANEL
                                      (UK spec vehicles)
                                      from £572.68
                                      from £572.68
                                      CRUSCOTTO GREZZO ROADS/GD Genuine Lamborghini - New (to order)
                                      # 010
                                      MPN: 009914303
                                      SIDE PANEL
                                      RIGHT
                                      from £17.57
                                      from £17.57
                                      RH DASHBOARD SIDE Genuine Lamborghini - New (to order)
                                      # 011
                                      MPN: 009914113
                                      TUNNEL PANEL
                                      (EUROPE, USA spec vehicles)
                                      from £494.84
                                      from £494.84
                                      TUNNEL CONSOLE PANELASSEMBLY Genuine Lamborghini - New (to order)
                                      # 011
                                      MPN: 009914117VS
                                      TUNNEL PANEL
                                      (UK spec vehicles)
                                      Lamborghini PART 009914117VS Genuine Lamborghini - New (to order)
                                      # 012
                                      MPN: 009414112
                                      Frame
                                      from £15.97
                                      from £15.97
                                      Frame Genuine Lamborghini - New (to order)
                                      # 013
                                      MPN: 009414303
                                      PANEL
                                      RIGHT (EUROPE, USA spec vehicles)
                                      from £191.69
                                      from £191.69
                                      RH CONSOLE SIDE Genuine Lamborghini - New (to order)
                                      # 013
                                      MPN: 009958414
                                      PANEL
                                      RIGHT (UK spec vehicles)
                                      from £119.64
                                      from £119.64
                                      PANEL Genuine Lamborghini - New (to order)
                                      # 014
                                      MPN: 009958606
                                      Frame
                                      from £174.92
                                      from £174.92
                                      GEAR LEVER BASE BOARD UPPER FRONT AME Genuine Lamborghini - New (to order)
                                      # 015
                                      MPN: 009958607
                                      PLATE
                                      from £275.31
                                      from £275.31
                                      GEAR LEVER BASE BOARD Genuine Lamborghini - New (to order)
                                      # 016
                                      MPN: 009958605
                                      METAL COVERING
                                      from £62.59
                                      from £62.59
                                      TUNNEL CENTRE PANEL Genuine Lamborghini - New (to order)
                                      # 017
                                      MPN: 009958601
                                      TUNNEL COVERING
                                      from £368.71
                                      from £368.71
                                      RESIN TUNNEL PANEL Genuine Lamborghini - New (to order)
                                      # 018
                                      MPN: 009914112
                                      PLATE
                                      from £6.58
                                      from £6.58
                                      SHOCK ABSORBER PLATE Genuine Lamborghini - New (to order)
                                      # 019
                                      MPN: 009414336
                                      PANEL
                                      LEFT (EUROPE, USA spec vehicles)
                                      from £129.42
                                      from £129.42
                                      LH TUNNEL CONSOLE SIDE Genuine Lamborghini - New (to order)
                                      # 019
                                      MPN: 009914310
                                      PANEL
                                      LEFT (UK spec vehicles)
                                      LEFT SIDE PANEL Genuine Lamborghini - New (to order)
                                      # 020
                                      MPN: 009458356
                                      AIR VENT
                                      from £103.67
                                      from £103.67
                                      DRIVER FEET AIR VENTBUSHING Genuine Lamborghini - New (to order)
                                      # 021
                                      MPN: 009958402
                                      GRILLE
                                      from £26.00
                                      from £26.00
                                      AIR VENT GRID Genuine Lamborghini - New (to order)
                                      # 022
                                      MPN: 009458364
                                      CASE
                                      from £38.46
                                      from £38.46
                                      ACCELERATOR GUIDE BOX Genuine Lamborghini - New (to order)
                                      # 023
                                      MPN: 009414321
                                      COVERING
                                      from £438.35
                                      from £438.35
                                      STEERING COLUMN PANEL Genuine Lamborghini - New (to order)
                                      # 024
                                      MPN: 009914304
                                      SIDE PANEL
                                      LEFT
                                      from £23.13
                                      from £23.13
                                      LH DASHBOARD SIDE Genuine Lamborghini - New (to order)
                                      # 025
                                      MPN: 008700660
                                      SCREW
                                      from £0.53
                                      from £0.53
                                      SCREW M6X16 8G/Z DIN6921 Genuine Lamborghini - New (to order)
                                      # 026
                                      MPN: 009458354
                                      PANEL
                                      (UK spec vehicles)
                                      from £136.81
                                      from £136.81
                                      ACCELERATOR GUIDE PANEL Genuine Lamborghini - New (to order)
                                      # 027
                                      MPN: 009458365
                                      CASE
                                      (UK spec vehicles)
                                      from £158.16
                                      from £158.16
                                      RHD ACCELERATOR BOX Genuine Lamborghini - New (to order)
