103.03.00 - engine block

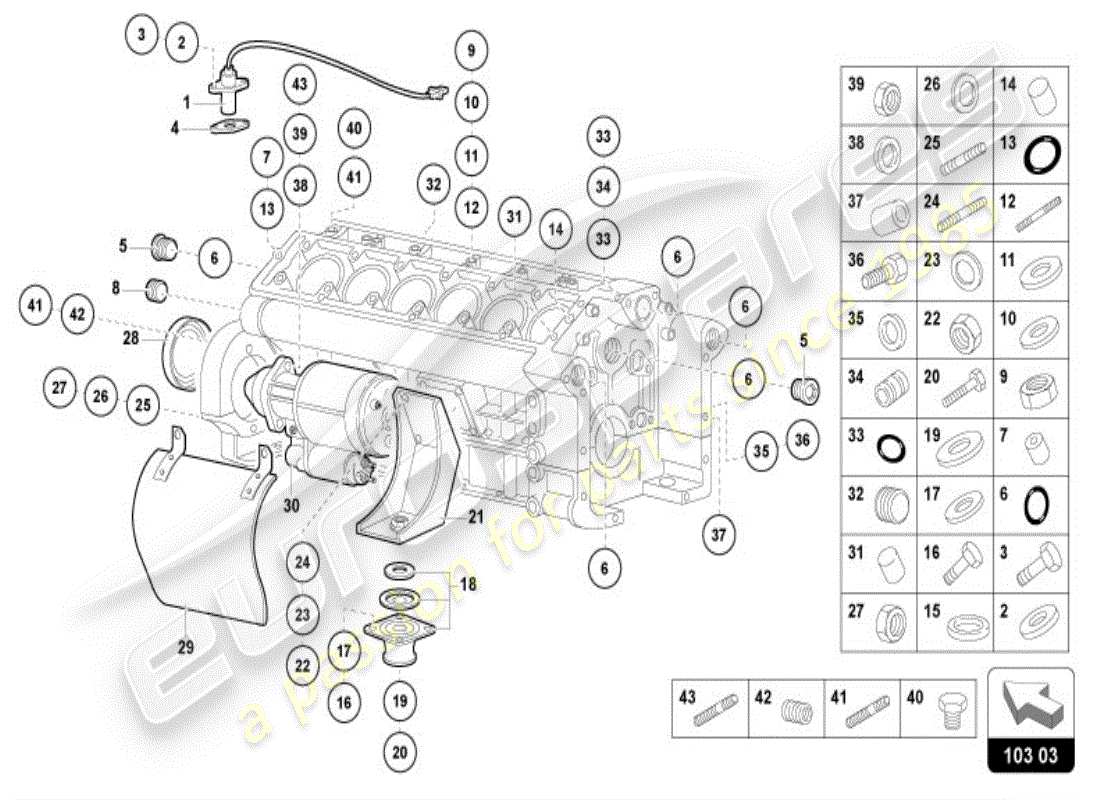

Lamborghini Diablo VT (1999) ENGINE BLOCK Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001625411
SENSOR
NOT FOR THIS MODEL
# 002
MPN: 008410502
WASHER
Supersession
Supersession
# 003
MPN: 008100504
SCREW
Supersession
Supersession
# 004
MPN: 001628601
SPACER
SP 0,2 MM0
# 004
MPN: 001628602
SPACER
SP 0,4 MM0
Supersession
Supersession
# 005
MPN: 001830023
CAP
Supersession
Supersession
# 006
MPN: 008603503
RING
from £2.64
from £2.64
This part replaces part number 008603501
# 007
MPN: 001832161
DOWEL
from £247.46
from £247.46
# 008
MPN: 008933503
CAP
# 009
MPN: 008200809
NUT
Supersession
Supersession
# 010
MPN: 008410806
WASHER
Supersession
Supersession
# 011
MPN: 008400801
WASHER
Supersession
Supersession
# 012
MPN: 008300891
STUD
from £9.63
from £9.63
# 013
MPN: 008601106
RING
INCLUDED IN ENGINE GASKET KIT
# 014
-
DOWEL
NOT FOR THIS MODEL
# 015
MPN: 008401425
WASHER
INCLUDED IN ENGINE GASKET KIT
Supersession
Supersession
# 016
MPN: 008101031
SCREW
Supersession
Supersession
# 017
MPN: 008411014
WASHER
from £0.51
from £0.51
# 018
MPN: 001834734
ELASTIC SUPPORT
from £115.53
from £115.53
# 019
MPN: 001831606
WASHER
Supersession
Supersession
# 020
MPN: 004131471
SCREW
from £21.58
from £21.58
# 021
MPN: 001835941
SUPPORT
from £199.48
from £199.48
# 022
MPN: 008200808
NUT
Supersession
Supersession
# 023
MPN: 008410806
WASHER
Supersession
Supersession
# 024
MPN: 008300814
STUD
from £4.25
from £4.25
# 025
-
STUD
NOT FOR THIS MODEL
# 026
-
WASHER
NOT FOR THIS MODEL
# 027
-
NUT
NOT FOR THIS MODEL
# 028
MPN: 001829403
RING
INCLUDED IN ENGINE GASKET KIT
# 029
MPN: 001635959
SHIELD
from £413.10
from £413.10
# 030
MPN: 001630672
STARTER MOTOR
from £608.24
from £608.24
# 031
MPN: 008850821
WHEAT
# 032
MPN: 008931209
PLUG
# 033
MPN: 008600705
RING
INCLUDED IN ENGINE GASKET KIT
# 034
MPN: 001833995
WHEAT
from £19.94
from £19.94
# 035
MPN: 008400609
WASHER
Supersession
Supersession
# 036
MPN: 008100620
SCREW
from £3.78
from £3.78
# 037
MPN: 008851304
WHEAT
from £40.36
from £40.36
# 038
MPN: 008411213
WASHER
from £1.41
from £1.41
# 039
MPN: 001832869
NUT
# 040
MPN: 008101402
SCREW
from £18.54
from £18.54
# 041
MPN: 008300809
STUD
From engine n. 1910
from £4.94
from £4.94
# 042
MPN: 008210873
BUSHING
From engine n. 1910
# 043
MPN: 008301249
STUD
From engine n. 1910
from £9.79
from £9.79
