103.07.00 - engine block

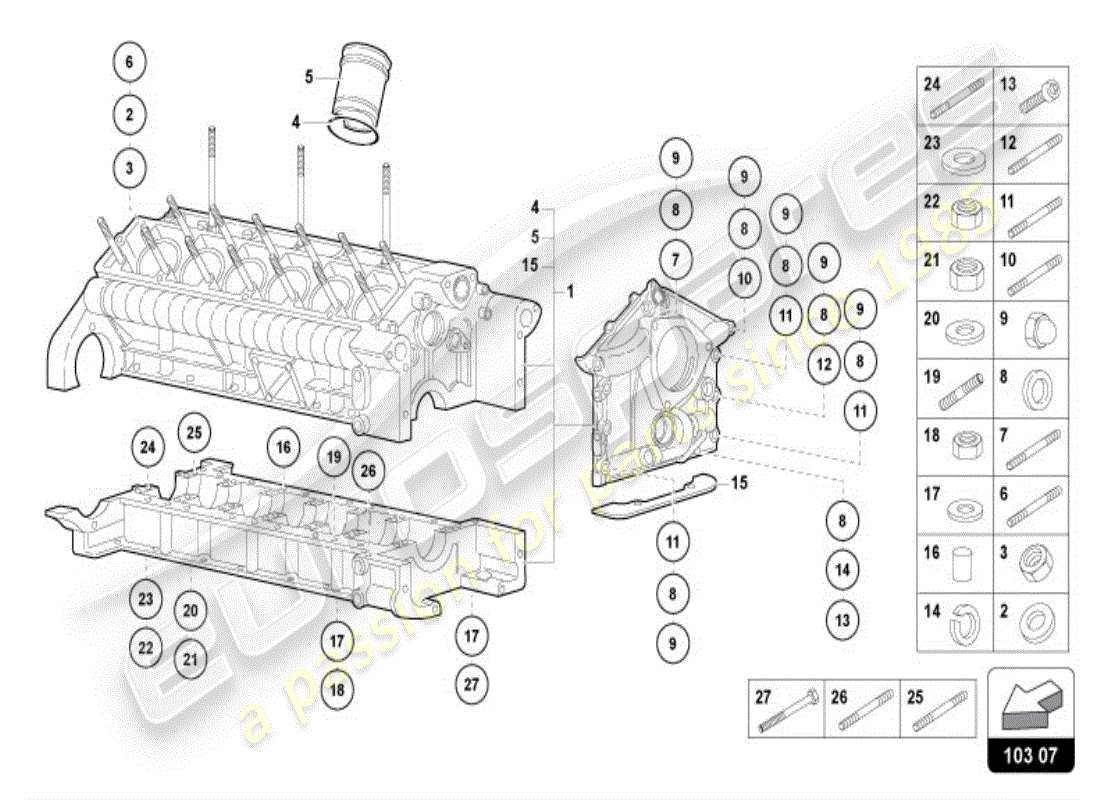

Lamborghini Diablo VT (1999) ENGINE BLOCK Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 400132000
MACHINED ENGINE CRANKCASE
# 002
MPN: 008401230
WASHER
from £33.35
from £33.35
# 003
MPN: 001824761
PRISONER
from £65.71
from £65.71
# 004
MPN: 008608801
SEAL RING
FROM VT99 INCLUDED ALSO IN ENGINE GASKET KIT
# 005
MPN: 001829442
CYLINDER
from £303.14
from £303.14
# 006
MPN: 001120924
DICE
from £23.35
from £23.35
# 007
MPN: 008300904
PRISONER
45MM
from £18.22
from £18.22
# 008
MPN: 008400806
WASHER
Supersession
Supersession
# 009
MPN: 008200816
DICE
from £2.94
from £2.94
# 010
MPN: 008300905
PRISONER
55MM
from £11.95
from £11.95
# 011
MPN: 008300902
PRISONER
35MM
from £5.94
from £5.94
# 012
MPN: 008300903
PRISONER
40MM
from £5.70
from £5.70
# 013
MPN: 008700822
QUICKLY
from £0.53
from £0.53
# 014
MPN: 008410806
WASHER
Supersession
Supersession
# 015
MPN: 001232219
SEAL
FROM VT99 INCLUDED ALSO IN ENGINE GASKET KIT
from £3.04
from £3.04
# 016
MPN: 008851105
WHEAT
# 017
MPN: 008410815
WASHER
from £0.49
from £0.49
# 018
MPN: 008200808
DICE
Supersession
Supersession
# 019
MPN: 008300803
PRISONER
25MM
from £7.71
from £7.71
# 019
MPN: 008300826
PRISONER
35MM
Supersession
Supersession
# 020
MPN: 008400820
WASHER
from £10.22
from £10.22
# 021
MPN: 008200808
DICE
From engine n. 1936
Supersession
Supersession
# 022
MPN: 008201221
DICE
Supersession
Supersession
# 023
MPN: 008401227
WASHER
from £9.55
from £9.55
# 024
MPN: 008301238
PRISONER
from £10.75
from £10.75
# 025
MPN: 008300917
PRISONER
From engine n. 1936
from £8.26
from £8.26
# 026
MPN: 008300884
PRISONER
95MM
from £21.43
from £21.43
# 027
MPN: 008100871
FAST 95MM
from £2.64
from £2.64
