lamborghini diablo vt (1999) right head accessories parts diagram

103.10.00 - RIGHT HEAD ACCESSORIES

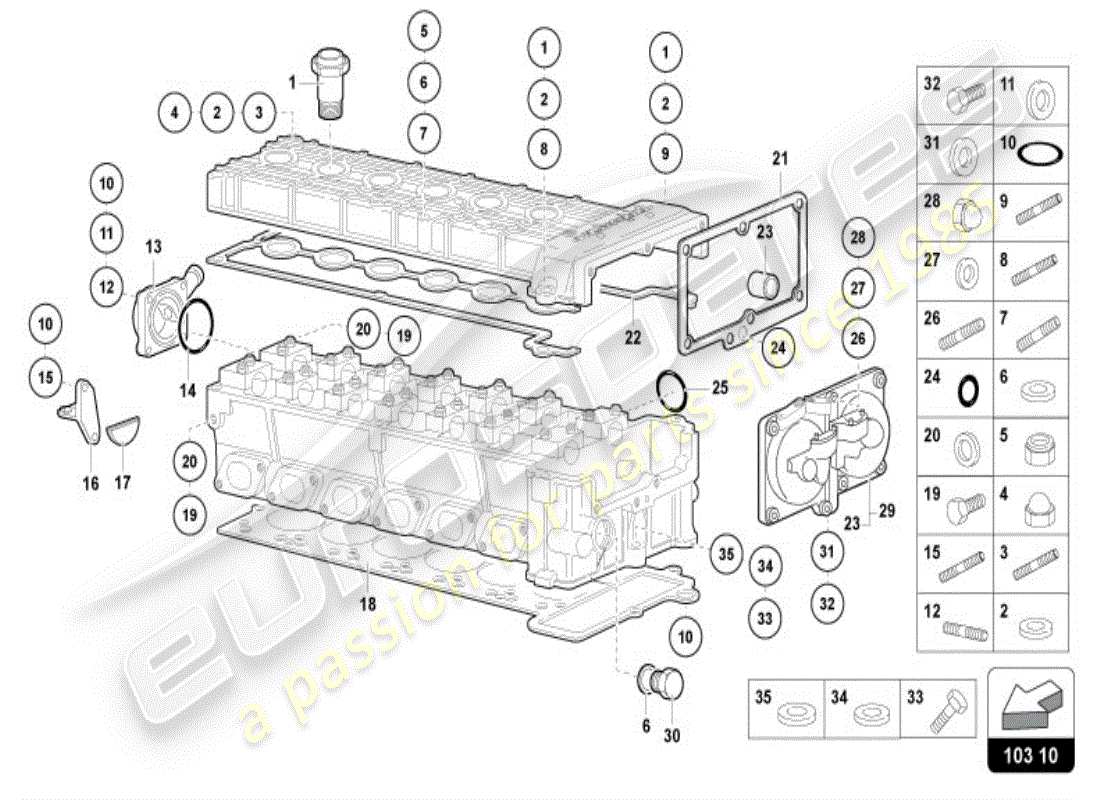

Lamborghini Diablo VT (1999) RIGHT HEAD ACCESSORIES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 001134281
UNION
FROM ENGINE 2220
from £130.71
from £130.71
RH/LH HEAD COVER CONNECTION Genuine Lamborghini - New (to order)
# 002
MPN: 008400606
WASHER
FROM ENGINE 2220
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 003
MPN: 008300649
STUD
FROM ENGINE 2220
from £6.10
from £6.10
SPECIAL STUD M6X47 Genuine Lamborghini - New (to order)
# 004
MPN: 008200605
NUT
FROM ENGINE 2220
from £1.83
from £1.83
M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
# 005
MPN: 008200606
NUT
FROM ENGINE 2220
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 006
MPN: 008402609
WASHER
FROM ENGINE 2220
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 007
MPN: 008300613
STUD
FROM ENGINE 2220
from £3.13
from £3.13
STUD M6X14 UNI 5911 8G/Z Genuine Lamborghini - New (to order)
# 008
MPN: 008300651
STUD
FROM ENGINE 2220
from £7.62
from £7.62
SPECIAL STUD M6X24 Genuine Lamborghini - New (to order)
# 009
MPN: 008300637
STUD
FROM ENGINE 2220
from £9.15
from £9.15
SPECIAL STUD M6X28 Genuine Lamborghini - New (to order)
# 010
MPN: 008601203
SEAL
FROM ENGINE 2220
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 011
MPN: 008410602
WASHER
FROM ENGINE 2220
from £28.42
from £28.42
WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
# 012
MPN: 008300601
STUD
FROM ENGINE 2220
from £5.27
from £5.27
STUD M6X20 UNI 5911/8G/ZD Genuine Lamborghini - New (to order)
# 013
MPN: 001133383
VENT PIPE - COVER
FROM ENGINE 2220
from £111.45
from £111.45
OIL VENT COVER ASSEMBLY Genuine Lamborghini - New (to order)
# 014
MPN: 008606205
SEAL
FROM ENGINE 2220
from £4.10
from £4.10
This part replaces part number 008606201
O-RING Genuine Lamborghini - New (to order)
# 015
MPN: 008300613
STUD
FROM ENGINE 2220
from £3.13
from £3.13
STUD M6X14 UNI 5911 8G/Z Genuine Lamborghini - New (to order)
# 016
MPN: 0011003953
SUPPORT
FROM ENGINE 2220
from £29.45
from £29.45
ACCELERATOR WIRE OUTER SHEATH RETAINER Genuine Lamborghini - New (to order)
# 017
MPN: 0011003411
COVER
FROM ENGINE 2220
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 018
MPN: 0011000987
GASKET
FROM ENGINE 2220
from £169.96
from £169.96
This part replaces part number 001129852 - and 1 more. Click to view details
RH HEAD GASKET Genuine Lamborghini - New (to order)
RH HEAD GASKET Eurospares Approved Part - New In stock
# 019
MPN: 008100839
SCREW
FROM ENGINE 2220
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 020
MPN: 008400818
WASHER
FROM ENGINE 2220
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 021
MPN: 0011003889
GASKET
FROM ENGINE 2220
from £18.60
from £18.60
RH HEAD VARIATOR COVER GASKET Genuine Lamborghini - New (to order)
# 022
MPN: 0011004920
GASKET
FROM ENGINE 2220
GASKET Genuine Lamborghini - New (to order)
# 023
MPN: 0011000038
BUSHING
FROM ENGINE 2220
from £32.00
from £32.00
INTAKE PHASE VARIATOR BUSHING Genuine Lamborghini - New (to order)
# 024
MPN: 008600905
SEAL
FROM ENGINE 2220
from £6.10
from £6.10
This part replaces part number 008600903
O RING Genuine Lamborghini - New In stock
# 025
MPN: 008604703
SEAL
FROM ENGINE 2220
from £5.22
from £5.22
This part replaces part number 008604701
O-RING Genuine Lamborghini - New In stock
# 026
MPN: 008300809
STUD
FROM ENGINE 2220
from £4.94
from £4.94
STUD M8X25 UNI 5911/8G/ZD Genuine Lamborghini - New (to order)
# 027
MPN: 008410810
WASHER
FROM ENGINE 2220
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 028
MPN: 008200816
NUT
FROM ENGINE 2220
from £2.94
from £2.94
SPECIAL NUT Genuine Lamborghini - New In stock
# 029
MPN: 0011006398
COVER
FROM ENGINE 2220
from £542.42
from £542.42
KIT COP.VAR.FASE DX-NO EL.VALV Genuine Lamborghini - New (to order)
# 030
MPN: 008932601
PLUG
FROM ENGINE 2220
Lamborghini PART 008932601 Genuine Lamborghini - New (to order)
# 031
MPN: 008400609
WASHER
FROM ENGINE 2220
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 032
MPN: 008100631
SCREW
FROM ENGINE 2220
from £0.54
from £0.54
SCREW M6X8 UNI 5739 8G Genuine Lamborghini - New (to order)
# 033
MPN: 008100807
SCREW
FROM ENGINE 2220
from £0.58
from £0.58
SCREW M8X40 UNI 5737/8G ZD Genuine Lamborghini - New In stock
# 034
MPN: 008410806
WASHER
FROM ENGINE 2220
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 035
MPN: 008400806
WASHER
FROM ENGINE 2220
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
