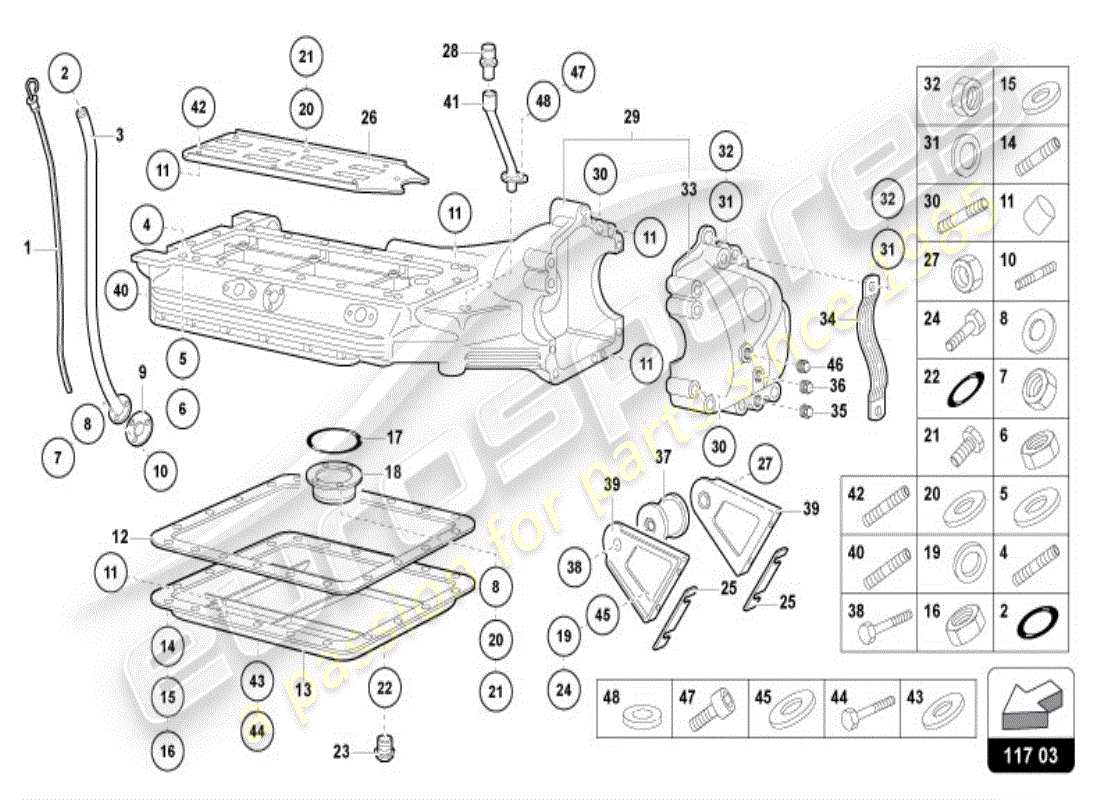

117.03.00 - oil sump
Lamborghini Diablo VT (1999) OIL SUMP Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001837261
OIL LEVEL ROD
from £199.31
from £199.31
# 002
-
RING
NOT FOR THIS MY
# 003
MPN: 001837263
PIPE
from £66.52
from £66.52
# 004
MPN: 008300806
STUD
L = 97 MM
from £3.61
from £3.61
# 004
MPN: 008300839
STUD
28 MM
Supersession
Supersession
# 004
MPN: 008300897
STUD
106 MM
from £9.55
from £9.55
# 005
MPN: 008410810
WASHER
Supersession
Supersession
# 006
MPN: 008200808
NUT
Supersession
Supersession
# 007
MPN: 008100601
NUT
Supersession
Supersession
# 008
-
WASHER
NOT FOR THIS MY
# 009
MPN: 001830006
GASKET
INCLUDED IN ENGINE GASKET KIT
from £4.78
from £4.78
# 010
-
STUD
NOT FOR THIS MY
# 011
MPN: 008850806
DOWEL
Supersession
Supersession
# 012
MPN: 001826521
GASKET
INCLUDED IN ENGINE GASKET KIT
from £79.76
from £79.76
# 013
MPN: 001831852
COVER
from £318.20
from £318.20
# 014
-
STUD
NOT FOR THIS MODEL
# 015
-
WASHER
NOT FOR THIS MODEL
# 016
-
NUT
NOT FOR THIS MODEL
# 017
MPN: 008609302
RING
INCLUDED IN ENGINE GASKET KIT
# 018
MPN: 001832017
FLANGE
from £209.75
from £209.75
# 019
MPN: 008400801
WASHER
Supersession
Supersession
# 020
MPN: 008410602
WASHER
from £27.26
from £27.26
# 021
MPN: 008700644
SCREW
Supersession
Supersession
# 022
MPN: 008402202
WASHER
INCLUDED IN ENGINE GASKET KIT
from £2.73
from £2.73
# 023
MPN: 008932211
CAP
from £14.83
from £14.83
This part replaces part number 008932206
# 024
MPN: 008100862
SCREW
from £0.53
from £0.53
# 025
MPN: 004126766
SHIM
1.0 MM
# 026
MPN: 001827775
PLATE
from £54.80
from £54.80
# 027
MPN: 008201416
NUT
from £1.25
from £1.25
# 028
MPN: 002325257
DIFFERENTIAL GEAR OIL VENT
# 029
MPN: 450132001
oil sump
from £5,894.91
from £5,894.91
# 030
MPN: 0018001643
STUD
from £8.26
from £8.26
# 031
MPN: 008411002
WASHER
Supersession
Supersession
# 032
MPN: 008201001
NUT
Supersession
Supersession
# 033
-
COVER
INCLUDED IN REF. 29
# 034
MPN: 001604328
GROUND CABLE
Supersession
Supersession
# 035
MPN: 008932203
CAP
# 036
MPN: 008932203
CAP
# 037
MPN: 008921415
RUBBER PAD
# 038
MPN: 008101430
SCREW
from £2.24
from £2.24
# 039
MPN: 004126765
BRACKET
from £175.73
from £175.73
# 040
MPN: 008300808
STUD
Supersession
Supersession
# 041
MPN: 0023001636
PIPE
From engine n. 1966
from £56.25
from £56.25
# 042
MPN: 008300809
STUD
from £4.94
from £4.94
# 043
MPN: 008410602
WASHER
from £25.72
from £25.72
# 044
MPN: 008100603
SCREW
from £1.00
from £1.00
# 045
MPN: 008410806
WASHER
Supersession
Supersession
# 046
MPN: 008932602
CAP
from £2.24
from £2.24
# 047
MPN: 008700547
SCREW
from £0.51
from £0.51
# 048
MPN: 008410503
WASHER
Supersession
Supersession
