133.09.00 - LINKAGE

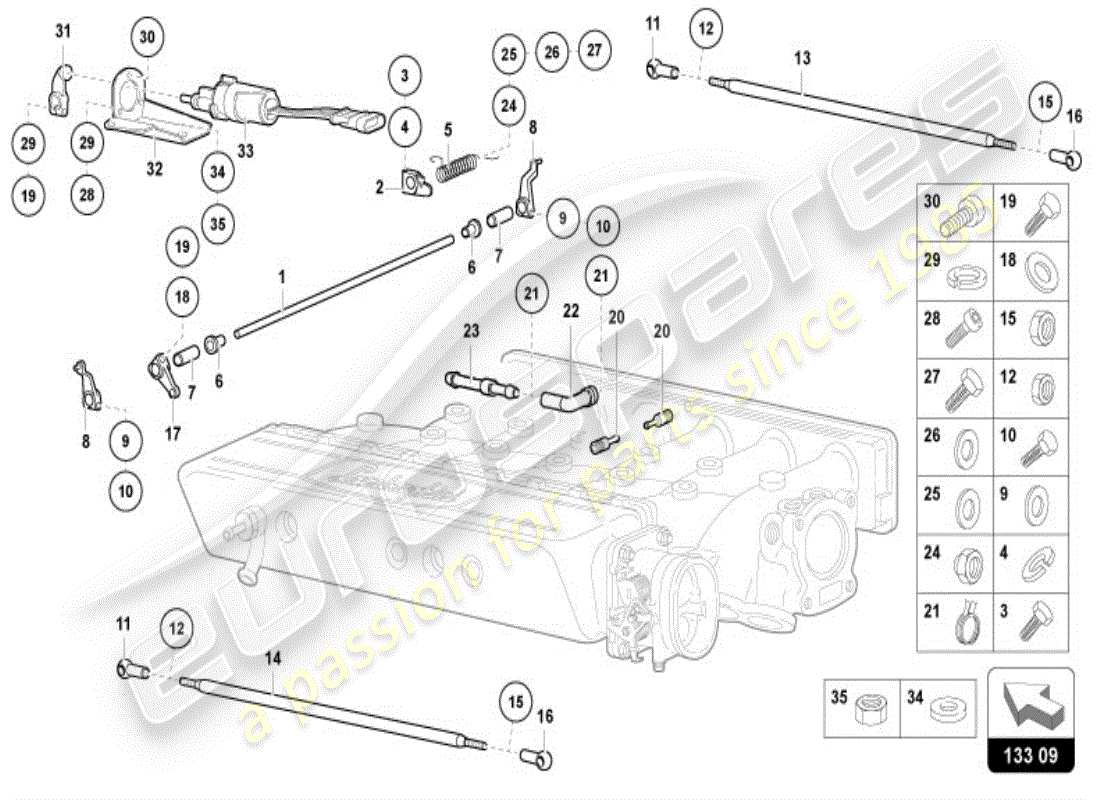

Lamborghini Diablo VT (1999) LINKAGE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001323135
SHAFT
from £21.18
from £21.18
# 002
MPN: 001331005
LEVER
from £24.39
from £24.39
# 003
MPN: 008100601
SCREW
Supersession
Supersession
# 004
MPN: 008410602
WASHER
from £29.39
from £29.39
# 005
MPN: 001335958
SPRING
from £21.35
from £21.35
# 006
MPN: 008801204
BUSHING
from £6.02
from £6.02
# 007
MPN: 001323136
SPACER
from £8.74
from £8.74
# 008
MPN: 0013001358
LEVER
from £53.93
from £53.93
# 009
MPN: 008410602
WASHER
from £29.19
from £29.19
# 010
MPN: 008100601
SCREW
Supersession
Supersession
# 011
MPN: 001300804
COUPLING HEAD
from £7.54
from £7.54
# 012
MPN: 008200504
NUT
from £10.20
from £10.20
# 013
MPN: 001328014
TIE ROD
LEFT
from £231.82
from £231.82
# 014
MPN: 001328016
TIE ROD
RIGHT
from £328.58
from £328.58
# 015
MPN: 008200501
NUT
Supersession
Supersession
# 016
MPN: 001308539
COUPLING HEAD
# 017
MPN: 001301093
LEVER
from £145.86
from £145.86
# 018
MPN: 008410602
WASHER
from £29.39
from £29.39
# 019
MPN: 008100601
SCREW
Supersession
Supersession
# 020
MPN: 001328721
CONNECTION
from £12.84
from £12.84
# 021
MPN: 008830122
STRAP
FROM 12600 - part. compatibile sulle vetture precedenti
from £0.53
from £0.53
# 022
MPN: 001329321
90? CONNECTION
FROM 12600 - part. compatibile sulle vetture precedenti
Supersession
Supersession
# 023
MPN: 001329319
CONNECTION
FROM 12600 - part. compatibile sulle vetture precedenti
from £0.75
from £0.75
# 024
-
NUT
NOT FOR THIS MODEL
# 025
-
WASHER
NOT FOR THIS MODEL
# 026
-
WASHER
NOT FOR THIS MODEL
# 027
-
SCREW
NOT FOR THIS MODEL
# 028
MPN: 008700646
SCREW
from £0.54
from £0.54
# 029
MPN: 008410602
WASHER
from £29.39
from £29.39
# 030
MPN: 008700465
SCREW
from £0.54
from £0.54
# 031
MPN: 001337826
LEVER
from £54.16
from £54.16
# 032
MPN: 001337818
SUPPORT
from £40.84
from £40.84
# 033
MPN: 006137792
CONTROL
from £517.29
from £517.29
# 034
MPN: 008400606
WASHER
Supersession
Supersession
# 035
MPN: 008200606
NUT
Supersession
Supersession
