409.02.00 - FRONT AXLE DIFFERENTIAL BOX

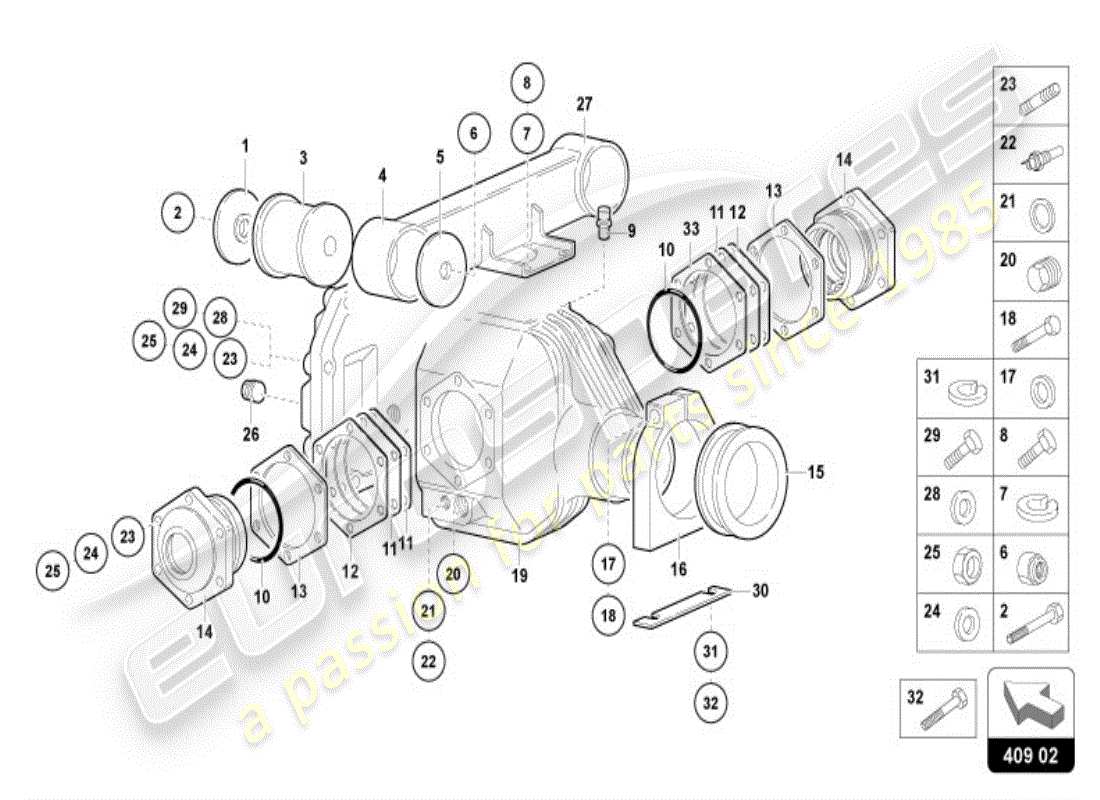

Lamborghini Diablo VT (1999) FRONT AXLE DIFFERENTIAL BOX Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 004134280
WASHER
from £28.80
from £28.80
# 002
MPN: 008101434
SCREW
from £1.93
from £1.93
# 003
MPN: 008921412
SILENTBLOC
Supersession
Supersession
# 004
MPN: 002326142
SUPPORT
from £79.53
from £79.53
# 005
MPN: 008401415
WASHER
from £10.60
from £10.60
# 006
MPN: 008201416
NUT
from £1.22
from £1.22
# 007
MPN: 008410806
WASHER
Supersession
Supersession
# 008
MPN: 008100826
SCREW
from £0.53
from £0.53
# 009
MPN: 002325257
VENT PIPE
# 010
MPN: 008608600
SEAL
# 011
MPN: 0023002142
SHIM
# 012
MPN: 0023002122
SHIM
# 013
MPN: 002334026
SHIM
# 014
MPN: 002334044
FLANGE
from £139.30
from £139.30
# 015
MPN: 002325440
SILENTBLOC
from £31.92
from £31.92
# 016
MPN: 002325441
CLAMP
from £171.63
from £171.63
# 017
MPN: 008411002
WASHER
Supersession
Supersession
# 018
MPN: 008101018
SCREW
from £0.54
from £0.54
# 019
MPN: 002325400
CASE
from £2,335.07
from £2,335.07
# 020
MPN: 008932203
MAGNETIC PLUG
# 021
MPN: 008401425
WASHER
Supersession
Supersession
# 022
MPN: 006033681
TEMPERATURE SENS.
Supersession
Supersession
# 023
MPN: 008300801
STUD
from £4.09
from £4.09
# 024
MPN: 008410810
WASHER
Supersession
Supersession
# 025
MPN: 008200801
NUT
Supersession
Supersession
# 026
MPN: 008932203
PLUG
# 027
MPN: 002325401
COVER
from £154.06
from £154.06
# 028
MPN: 008410810
WASHER
Supersession
Supersession
# 029
MPN: 008100821
SCREW
Supersession
Supersession
# 030
MPN: 004134397
SHIM
1,5 MM
from £6.82
from £6.82
# 030
MPN: 004134398
SHIM
2 MM
from £6.82
from £6.82
# 031
MPN: 008411002
WASHER
Supersession
Supersession
# 032
MPN: 008101031
SCREW
Supersession
Supersession
# 033
MPN: 002334027
SHIM
# 033
MPN: 002336158
SHIM
2MM
