409.03.00 - front axle differential

Lamborghini Diablo VT (1999) FRONT AXLE DIFFERENTIAL Parts Diagram

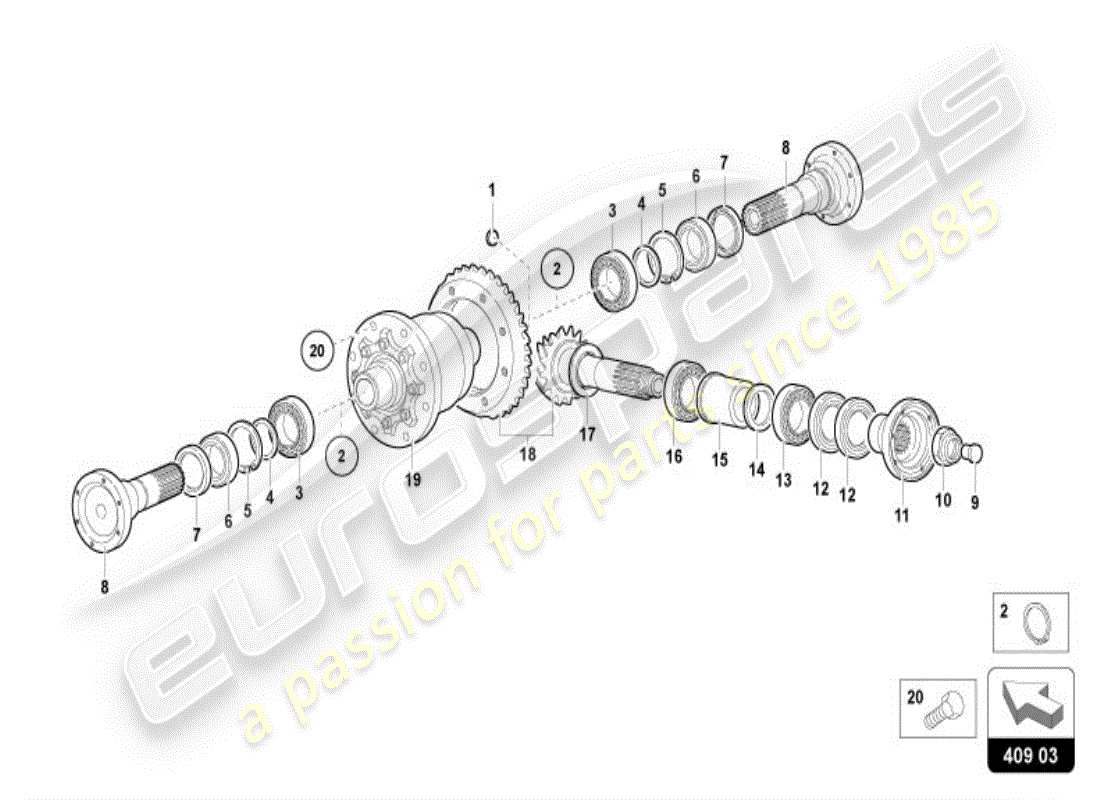

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 001
                                    -
                                    PLUG
                                    NOT FOR THIS MODEL
                                    # 002
                                    MPN: 008582701
                                    RETAINER RING
                                    from £1.47
                                    from £1.47
                                    O-RING E 30 UNI 7435-75 Genuine Lamborghini - New In stock
                                    # 003
                                    MPN: 008544103
                                    BEARING
                                    from £79.92
                                    from £79.92
                                    BEARING Genuine Lamborghini - New (to order)
                                    # 004
                                    MPN: 002325826
                                    SPACER
                                    SPACER Genuine Lamborghini - New (to order)
                                    # 005
                                    MPN: 008576601
                                    RETAINER RING
                                    from £0.53
                                    from £0.53
                                    O-RING I 62 UNI 3654 Genuine Lamborghini - New (to order)
                                    # 006
                                    MPN: 008503012
                                    BEARING
                                    Supersession
                                    Supersession
                                    Genuine Lamborghini (no longer available to order)
                                    # 008
                                    MPN: 002325830
                                    FLANGE
                                    FLANGE Genuine Lamborghini - New (to order)
                                    # 009
                                    MPN: 002334235
                                    RUBBER
                                    from £7.22
                                    from £7.22
                                    FRONT PINION RUBBER WASHER Genuine Lamborghini - New (to order)
                                    # 010
                                    MPN: 008252505
                                    PLUG
                                    from £50.69
                                    from £50.69
                                    D.25X1.5 UNI 5343 RING NUT Genuine Lamborghini - New (to order)
                                    # 011
                                    MPN: 002434627
                                    FLANGE
                                    from £702.99
                                    from £702.99
                                    FRONT PROPELLER SHAFT & GEARBO X OUTPUT Genuine Lamborghini - New (to order)
                                    # 012
                                    MPN: 008614208
                                    SEAL
                                    from £55.60
                                    from £55.60
                                    OIL SEAL 42X72X8 MM Genuine Lamborghini - New In stock
                                    # 013
                                    MPN: 008543101
                                    BEARING
                                    from £87.30
                                    from £87.30
                                    BEARING Genuine Lamborghini - New (to order)
                                    # 014
                                    MPN: 002333787
                                    SHIM
                                    2,8 MM
                                    from £12.60
                                    from £12.60
                                    RING 2.8 MM Genuine Lamborghini - New (to order)
                                    # 014
                                    MPN: 002333788
                                    SHIM
                                    2,9 MM
                                    from £12.60
                                    from £12.60
                                    RING 2.9 MM Genuine Lamborghini - New (to order)
                                    # 014
                                    MPN: 002333789
                                    SHIM
                                    3,0 MM
                                    from £12.60
                                    from £12.60
                                    RING 3 MM Genuine Lamborghini - New (to order)
                                    # 014
                                    MPN: 002333790
                                    SHIM
                                    3,1 MM
                                    from £12.60
                                    from £12.60
                                    RING 3.1 MM Genuine Lamborghini - New (to order)
                                    # 014
                                    MPN: 002333791
                                    SHIM
                                    3,2 MM
                                    from £39.88
                                    from £39.88
                                    RING 3.2 MM Genuine Lamborghini - New (to order)
                                    # 014
                                    MPN: 002334258
                                    SHIM
                                    3,3 MM
                                    from £23.51
                                    from £23.51
                                    RING 3.3 MM Genuine Lamborghini - New (to order)
                                    # 014
                                    MPN: 002334350
                                    SHIM
                                    0,15 MM
                                    from £44.21
                                    from £44.21
                                    RING 0.15 MM Genuine Lamborghini - New (to order)
                                    # 015
                                    MPN: 002325825
                                    SPACER
                                    from £33.62
                                    from £33.62
                                    DIFFERENTIAL PINION SHIM Genuine Lamborghini - New (to order)
                                    # 016
                                    MPN: 008543401
                                    BEARING
                                    from £127.43
                                    from £127.43
                                    BEARING Genuine Lamborghini - New (to order)
                                    # 017
                                    MPN: 002333792
                                    SHIM
                                    2,4 MM
                                    from £15.56
                                    from £15.56
                                    RING 2.4 MM Genuine Lamborghini - New (to order)
                                    # 017
                                    MPN: 002333793
                                    SHIM
                                    2,5 MM
                                    from £15.56
                                    from £15.56
                                    RING 2.5 MM Genuine Lamborghini - New (to order)
                                    # 017
                                    MPN: 002333794
                                    SHIM
                                    2,6 MM
                                    from £34.90
                                    from £34.90
                                    RING 2.6 MM Genuine Lamborghini - New (to order)
                                    # 017
                                    MPN: 002333795
                                    SHIM
                                    2,7 MM
                                    from £34.90
                                    from £34.90
                                    RING 2.7 MM Genuine Lamborghini - New (to order)
                                    # 017
                                    MPN: 002333796
                                    SHIM
                                    2,8 MM
                                    from £34.90
                                    from £34.90
                                    RING 2.8 MM Genuine Lamborghini - New (to order)
                                    # 017
                                    MPN: 002334259
                                    SHIM
                                    2,3 MM
                                    from £56.40
                                    from £56.40
                                    RING 2.3 MM Genuine Lamborghini - New (to order)
                                    # 018
                                    MPN: 002334647
                                    BEVEL SET
                                    from £1,835.25
                                    from £1,835.25
                                    FRONT DIFFERENTIAL TAPER GEAR Genuine Lamborghini - New (to order)
                                    # 019
                                    MPN: 002325823
                                    KIT DIFFERENTIAL
                                    KIT DIFFERENTIAL Genuine Lamborghini - New (to order)
                                    # 020
                                    MPN: 008101062
                                    SCREW
                                    from £3.13
                                    from £3.13
                                    SCREW 10X1.25X20 12.9HEXAG.AUT OB Genuine Lamborghini - New (to order)
