905.06.00 - PHASE SENSOR

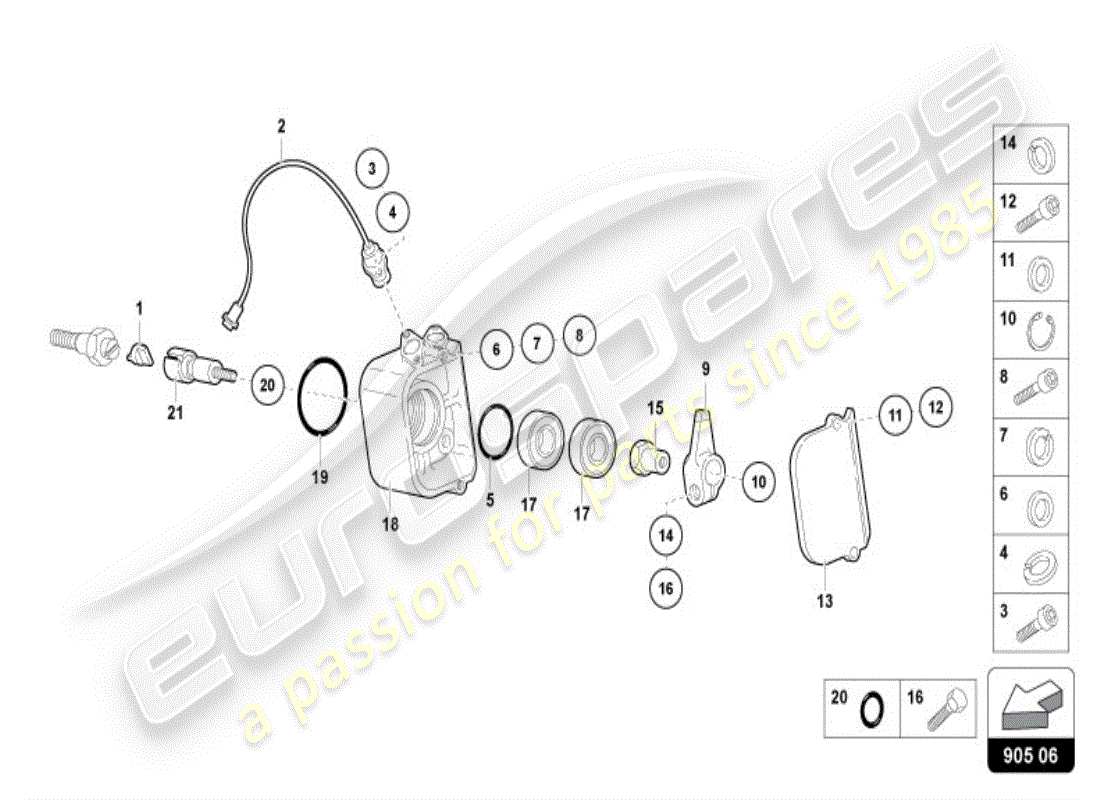

Lamborghini Diablo VT (1999) PHASE SENSOR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 001634052
COUPLING
from £222.03
from £222.03
# 002
MPN: 001625411
TIMING SENSOR
# 003
MPN: 008700512
SCREW
Supersession
Supersession
# 004
MPN: 008410503
WASHER
UNTIL ENGINE 2219
Supersession
Supersession
# 005
MPN: 008603503
SEAL
UNTIL ENGINE 2219
from £2.64
from £2.64
This part replaces part number 008603501
# 006
MPN: 008400606
WASHER
Supersession
Supersession
# 007
MPN: 008410602
WASHER
UNTIL ENGINE 2219
from £28.81
from £28.81
# 008
MPN: 008700627
SCREW
Supersession
Supersession
# 009
MPN: 001632292
PULSE GENERATOR
from £142.19
from £142.19
# 010
MPN: 008573501
RETAINER RING
Supersession
Supersession
# 011
MPN: 008410503
WASHER
Supersession
Supersession
# 012
MPN: 008700512
SCREW
UNTIL ENGINE 2219
Supersession
Supersession
# 013
MPN: 0016001286
COVER
from £13.56
from £13.56
# 014
MPN: 008410602
WASHER
UNTIL ENGINE 2219
from £29.39
from £29.39
# 015
MPN: 001632291
NUT
from £35.71
from £35.71
# 016
MPN: 008700670
SCREW
UNTIL ENGINE 2219
Supersession
Supersession
# 017
MPN: 008501501
BEARING
Supersession
Supersession
# 018
MPN: 0016001285
CASE
from £317.11
from £317.11
# 019
MPN: 008605001
SEAL
from £0.82
from £0.82
# 020
MPN: 008600906
SEAL
UNTIL ENGINE 2219
Supersession
Supersession
# 021
MPN: 001632289
SMALL SHAFT
from £47.74
from £47.74
