lamborghini gallardo coupe (2004) additional coolant pump parts diagram

121.02.00 - ADDITIONAL COOLANT PUMP

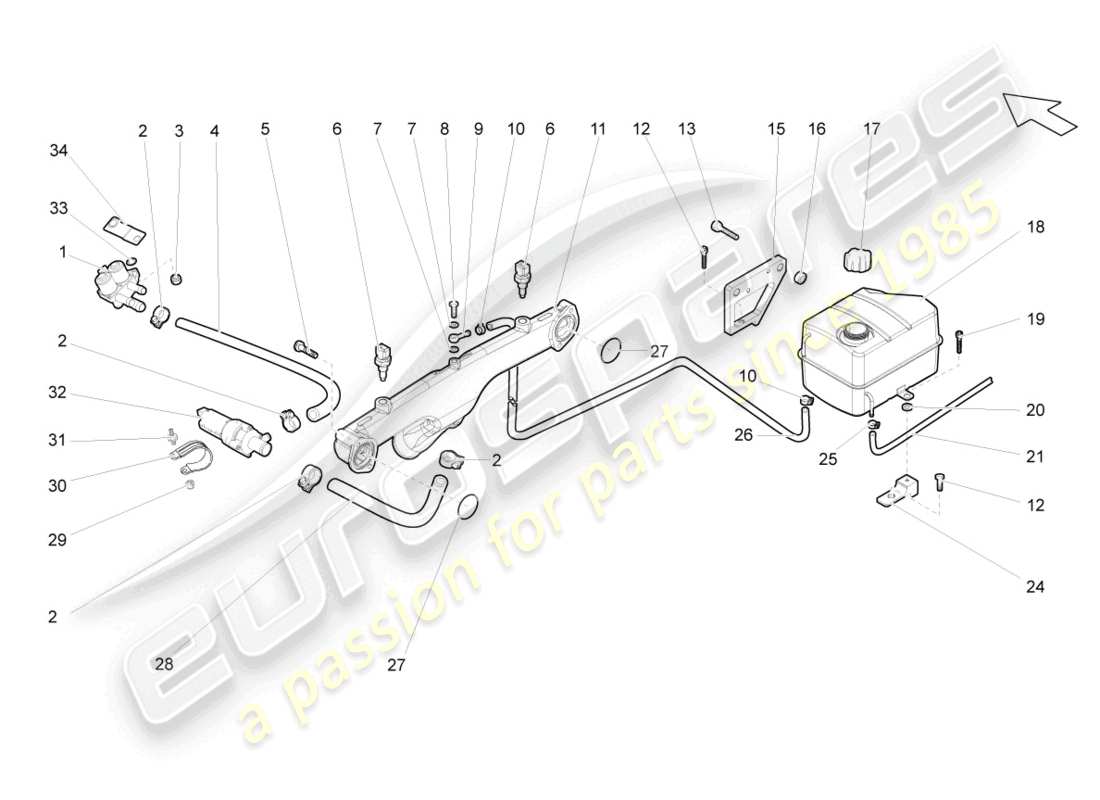

Lamborghini Gallardo Coupe (2004) ADDITIONAL COOLANT PUMP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      MPN: 400820036A
                                      SOLENOID VALVE
                                      from £382.37
                                      from £382.37
                                      SOLENOID VALVE Genuine Lamborghini - New (to order)
                                      # 002
                                      MPN: N0245203
                                      HOSE CLAMP
                                      20-32X9X0,5
                                      from £0.93
                                      from £0.93
                                      HOSE CLIP Genuine Lamborghini - New In stock
                                      HOSE CLAMP Genuine Porsche Part - New (to order)
                                      # 003
                                      MPN: N90367502
                                      SELF-LOCKING COLLAR NUT
                                      M6
                                      from £0.58
                                      from £0.58
                                      HEXAGONAL NUT M6 Genuine Lamborghini - New (to order)
                                      # 004
                                      MPN: 400819362
                                      COOLANT HOSE
                                      from £139.25
                                      from £139.25
                                      HEATING HOSE Genuine Lamborghini - New (to order)
                                      HEATING HOSE Genuine Lamborghini - Used In stock
                                      # 005
                                      MPN: N10117403
                                      SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION)
                                      M6X30
                                      from £0.66
                                      from £0.66
                                      SCREW WITH WASHER Genuine Lamborghini - New (to order)
                                      # 006
                                      -
                                      TEMPERATURE SENSOR
                                      # 006
                                      MPN: 07L919501A
                                      TEMPERATURE SENSOR
                                      from £118.56
                                      from £118.56
                                      This part replaces part number 002024394 - and 1 more. Click to view details
                                      SENSOR Genuine Lamborghini - New (to order)
                                      SENSOR Genuine Lamborghini - Used In stock
                                      # 007
                                      MPN: N0138302
                                      SEAL RING
                                      8X12
                                      from £2.07
                                      from £2.07
                                      This part replaces part number 008400818
                                      WASHER Genuine Lamborghini - New In stock
                                      SEAL RING - A 8 X 12 Genuine Porsche Part - New (to order)
                                      # 008
                                      MPN: WHT000524
                                      BANJO BOLT
                                      M8
                                      from £15.25
                                      from £15.25
                                      This part replaces part number 001733423
                                      BANJO BOLT Genuine Lamborghini - New (to order)
                                      # 009
                                      MPN: N91104301
                                      BANJO FITTING
                                      from £12.40
                                      from £12.40
                                      IMPACT NIPPLE Genuine Lamborghini - New (to order)
                                      IMPACT NIPPLE Genuine Lamborghini - Used In stock
                                      # 010
                                      MPN: N90293002
                                      CLAMP
                                      8-16
                                      from £1.28
                                      from £1.28
                                      HOSE CLIP Genuine Lamborghini - New In stock
                                      # 011
                                      -
                                      COOLANT PIPE
                                      # 011
                                      MPN: 07L121045
                                      COOLANT PIPE
                                      from £147.73
                                      from £147.73
                                      WATER OUTLET Genuine Lamborghini - New (to order)
                                      WATER OUTLET Genuine Lamborghini - Used In stock
                                      # 012
                                      MPN: N90166802
                                      HEXAGON HEAD BOLT (COMBI)
                                      M8X28
                                      from £2.44
                                      from £2.44
                                      SCREW Genuine Lamborghini - New (to order)
                                      # 013
                                      MPN: N10470701
                                      ROUND HD. SCREW
                                      AM6X50
                                      Supersession
                                      Supersession
                                      Genuine Lamborghini (no longer available to order)
                                      # 015
                                      MPN: 400133576
                                      BRACKET
                                      from £21.98
                                      from £21.98
                                      BRACKET Genuine Lamborghini - New (to order)
                                      BRACKET Genuine Lamborghini - Used In stock
                                      # 016
                                      MPN: 400121129A
                                      SPACER HOLDER
                                      from £9.55
                                      from £9.55
                                      SPACER Genuine Lamborghini - New (to order)
                                      # 017
                                      -
                                      END CAP
                                      # 017
                                      MPN: 07L121482
                                      END CAP
                                      from £18.94
                                      from £18.94
                                      PLUG Genuine Lamborghini - New (to order)
                                      # 018
                                      -
                                      RESERVOIR
                                      # 018
                                      MPN: 07L121407
                                      RESERVOIR
                                      from £267.72
                                      from £267.72
                                      OVERFLOW RESERVOIR Genuine Lamborghini - New In stock
                                      OVERFLOW RESERVOIR Genuine Lamborghini - Used In stock
                                      # 019
                                      MPN: N10227805
                                      SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION)
                                      M6X20
                                      from £0.54
                                      from £0.54
                                      This part replaces part number N10227803
                                      PAN HEAD BOLT WITH WASHER Genuine Lamborghini - New In stock
                                      # 020
                                      MPN: 008610903
                                      GROMMET
                                      from £10.14
                                      from £10.14
                                      GROMMET MM 9X12.8X2.5 MM Genuine Lamborghini - New (to order)
                                      # 021
                                      -
                                      COOLANT HOSE
                                      # 021
                                      MPN: 07L121103
                                      COOLANT HOSE
                                      from £38.87
                                      from £38.87
                                      COOLANT HOSE Genuine Lamborghini - New In stock
                                      # 024
                                      MPN: 400133599
                                      BRACKET
                                      from £32.34
                                      from £32.34
                                      BRACKET Genuine Lamborghini - New (to order)
                                      # 025
                                      MPN: N91130601
                                      CLAMP
                                      from £25.33
                                      from £25.33
                                      This part replaces part number 008830817
                                      HOSE CLIP Genuine Lamborghini - New In stock
                                      # 026
                                      -
                                      COOLANT HOSE
                                      # 026
                                      MPN: 07L121109
                                      COOLANT HOSE
                                      from £11.32
                                      from £11.32
                                      COOLANT HOSE Genuine Lamborghini - New (to order)
                                      # 027
                                      MPN: N10129201
                                      O-RING
                                      34,5X2,65
                                      from £3.19
                                      from £3.19
                                      O RING 34.50X2.65-N Genuine Lamborghini - New (to order)
                                      # 028
                                      MPN: 400819159A
                                      CONNECTING PIECE
                                      MOTORE/ ELETTROPOMP
                                      from £40.55
                                      from £40.55
                                      CONNECTING ADAPTER Genuine Lamborghini - New (to order)
                                      CONNECTING ADAPTER Genuine Lamborghini - Used In stock
                                      # 029
                                      MPN: N0150825
                                      HEXAGON COLLAR NUT
                                      M6
                                      from £0.54
                                      from £0.54
                                      HEXAGON FLANGE NUTM6 Genuine Lamborghini - New In stock
                                      shouldered hex. nut Genuine Porsche Part - New (to order)
                                      # 030
                                      MPN: 008834003
                                      CLAMP
                                      1-40X15
                                      from £6.18
                                      from £6.18
                                      CLAMP D1 40X15 W4 Genuine Lamborghini - New (to order)
                                      # 031
                                      MPN: 400972081C
                                      MOUNTING BUFFER
                                      from £11.40
                                      from £11.40
                                      FASTENING PART Genuine Lamborghini - New (to order)
                                      # 032
                                      MPN: 078965561
                                      ADDITIONAL COOLANT PUMP
                                      from £104.92
                                      from £104.92
                                      WATER PUMP Genuine Lamborghini - New (to order)
                                      WATER PUMP Genuine Lamborghini - Used In stock
                                      # 033
                                      MPN: 400864179
                                      SPACER RING
                                      from £1.37
                                      from £1.37
                                      SPACER RING Genuine Lamborghini - New In stock
                                      # 034
                                      MPN: 400820761
                                      BRACKET
                                      from £255.51
                                      from £255.51
                                      BRACKET Genuine Lamborghini - New (to order)
                                      BRACKET Genuine Lamborghini - Used In stock
