lamborghini gallardo coupe (2004) drive shaft rear parts diagram

505.02.00 - DRIVE SHAFT REAR

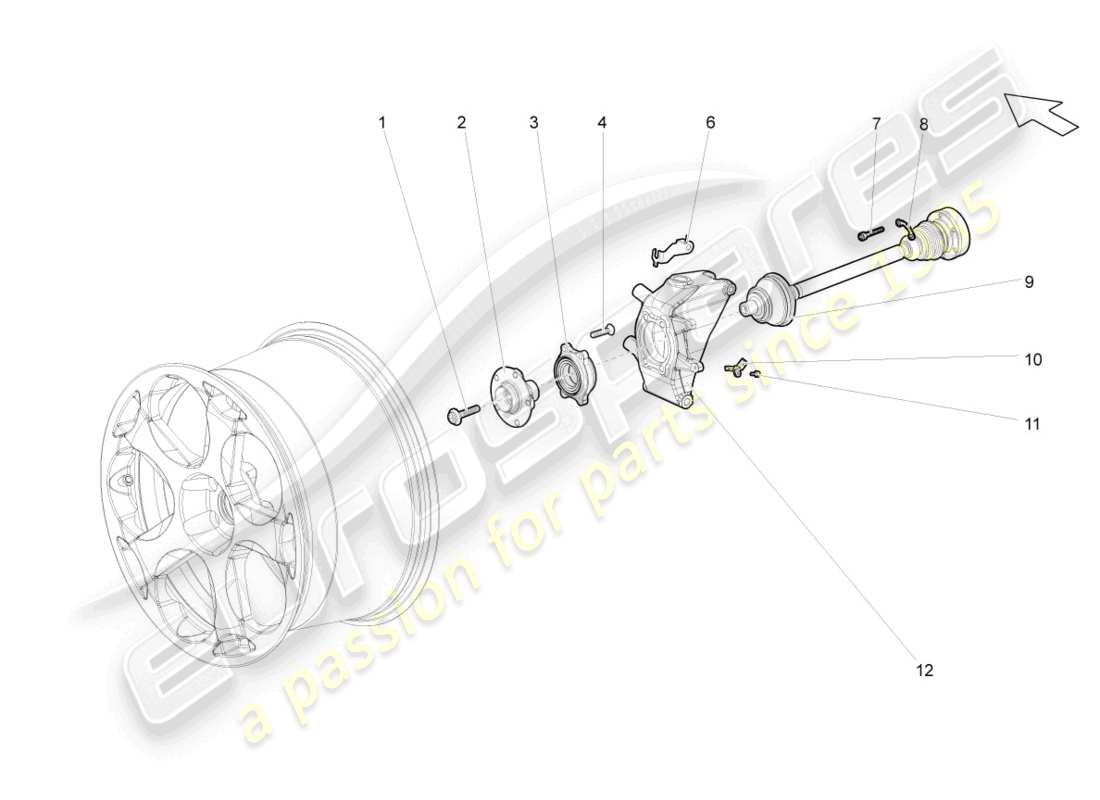

Lamborghini Gallardo Coupe (2004) DRIVE SHAFT REAR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 4B0407643A
          SHOULDERED BOLT
          M16X1,5X72
          from £5.90
          from £5.90
          HEXAGON HEAD BOLT M16X72 Genuine Lamborghini - New In stock
          HEXAGON HEAD BOLT M16X72 Genuine Lamborghini - Used In stock
          # 002
          MPN: 4E0407613A
          WHEEL HUB
          from £295.15
          from £295.15
          WHEEL HUB Genuine Lamborghini - New (to order)
          # 003
          MPN: 4E0407625D
          DOUBLE (ANGLED) BALL BEARING WITH FLANGE
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 004
          MPN: WHT000237A
          BALL SCREW
          M12X1,5X45
          from £2.35
          from £2.35
          TRIPLE SQUARE BOLTM12X1.5X45 Genuine Lamborghini - New (to order)
          BALL SCREW Genuine Porsche Part - New (to order)
          TRIPLE SQUARE BOLTM12X1.5X45 Genuine Lamborghini - Used In stock
          # 006
          MPN: 400615381
          BRACKET
          LEFT
          from £4.10
          from £4.10
          BRACKET Genuine Lamborghini - New (to order)
          BRACKET Genuine Lamborghini - Used In stock
          # 006
          MPN: 400615382
          BRACKET
          RIGHT
          from £4.10
          from £4.10
          BRACKET Genuine Lamborghini - New (to order)
          BRACKET Genuine Lamborghini - Used In stock
          # 007
          MPN: 0025013005
          CYLINDER HEAD BOLT
          from £6.29
          from £6.29
          CYLINDER SCREW M10X1,25X54 Genuine Lamborghini - New (to order)
          # 008
          MPN: 400501357
          SPACER
          from £10.14
          from £10.14
          PLATE Genuine Lamborghini - New (to order)
          # 009
          MPN: 400501211C
          DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS
          LEFT
          from £464.57
          from £464.57
          DRIVE SHAFT Genuine Lamborghini - New (to order)
          # 009
          MPN: 400501212C
          DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS
          RIGHT
          from £454.25
          from £454.25
          DRIVE SHAFT Genuine Lamborghini - New (to order)
          # 010
          MPN: 4E0927803A
          SPEED SENSOR
          RIGHT
          from £14.61
          from £14.61
          SPEED SENSOR Genuine Lamborghini - New (to order)
          SPEED SENSOR Genuine Lamborghini - Used In stock
          # 010
          MPN: 4E0927804A
          SPEED SENSOR
          LEFT
          from £26.56
          from £26.56
          SPEED SENSOR Genuine Lamborghini - New (to order)
          # 011
          MPN: N10226101
          SOCKET HEAD BOLT
          M6X16
          from £0.94
          from £0.94
          CYLINDRIC SCREW Genuine Lamborghini - New (to order)
          # 012
          MPN: 400505433
          WHEEL BEARING HOUSING
          LEFT
          from £1,390.08
          from £1,390.08
          WHEEL BRACKET Genuine Lamborghini - New (to order)
          # 012
          MPN: 400505434
          WHEEL BEARING HOUSING
          RIGHT
          from £1,390.08
          from £1,390.08
          WHEEL BRACKET Genuine Lamborghini - New (to order)
