lamborghini gallardo coupe (2006) piston parts diagram

107.01.00 - PISTON

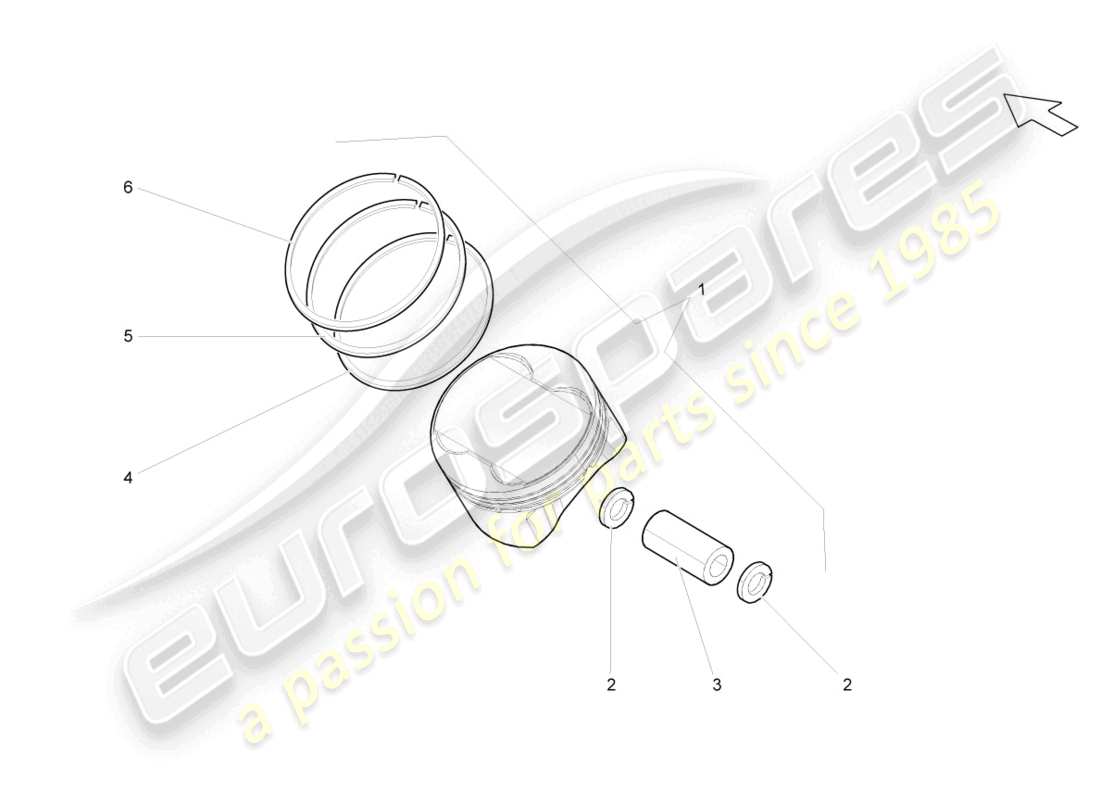

Lamborghini Gallardo Coupe (2006) PISTON Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          -
          PISTON COMPLETE
          # 001
          -
          PISTON COMPLETE
          # 001
          MPN: 07L107100AP
          PISTON COMPLETE
          UNTIL THE VIN 4LA01476 ORDER ALSO N°5 07L107100AQ; FROM VIN 4LA01477 INTERCHANGEA BLE 1 TO 1-CYLINDERS 6-10 07L 107 100 AQ
          from £1,469.89
          from £1,469.89
          # 001
          MPN: 07L107100AQ
          PISTON COMPLETE
          UNTIL THE VIN 4LA01476 ORDER ALSO N°5 07L107100AP; FROM VIN 4LA01477 INTERCHANGEA BLE 1 TO 1-CYLINDERS 1-5 07L 107 100 AP
          from £966.44
          from £966.44
          # 002
          MPN: N0122731
          SECURING RING
          20X1,5
          from £0.47
          from £0.47
          # 003
          -
          PISTON PIN
          # 003
          MPN: 079107411A
          PISTON PIN
          from £90.79
          from £90.79
          # 004
          -
          1 SET: PISTON RINGS
          # 004
          MPN: 07L107321A
          1 SET: PISTON RINGS
          from £144.83
          from £144.83
          # 005
          -
          PISTON RING
          # 005
          MPN: 07L107311A
          PISTON RING
          from £77.22
          from £77.22
          # 006
          -
          PISTON RING, UPPER
          # 006
          MPN: 07L107301A
          PISTON RING, UPPER
          from £235.19
          from £235.19
