lamborghini gallardo coupe (2008) fasteners parts diagram

201.03.00 - fasteners

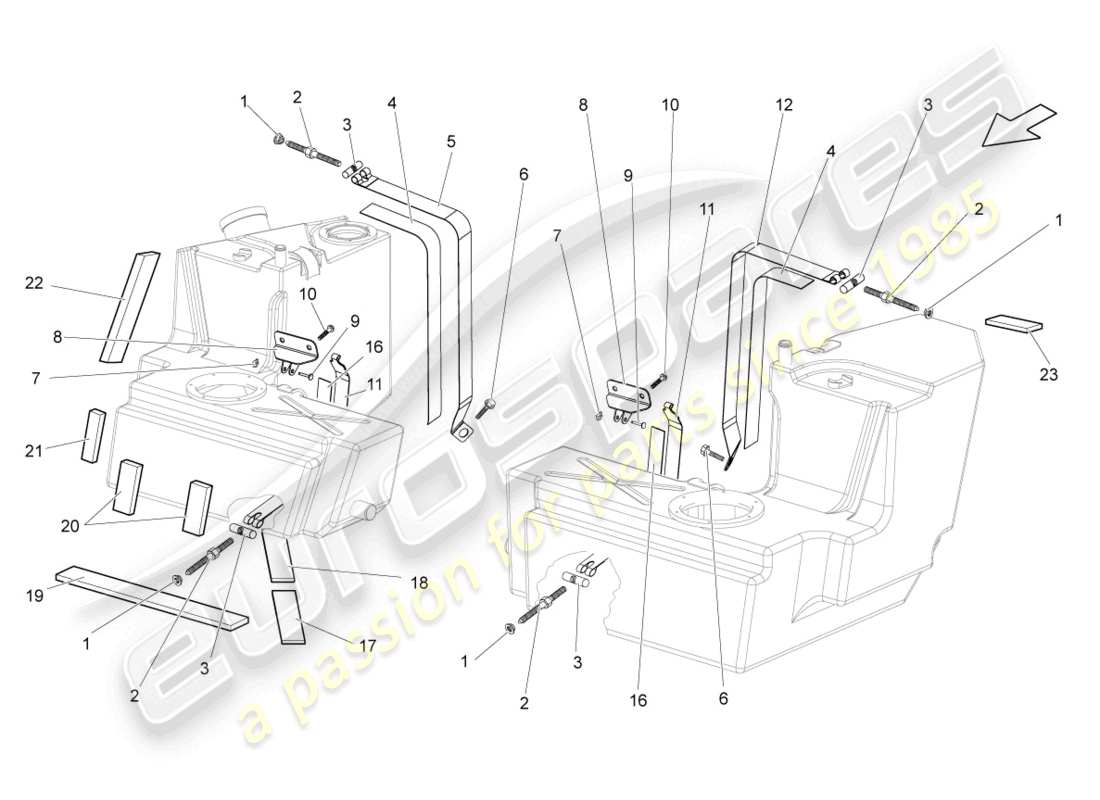

Lamborghini Gallardo Coupe (2008) FASTENERS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: N10609202
HEXAGON COLLAR NUT
M8 (EUROPE spec vehicles)
from £0.47
from £0.47
HEXAGON FLANGE NUT M8 Genuine Lamborghini - New In stock
Genuine Porsche Part (no longer available to order)
# 002
MPN: 400201262
DOUBLE COLLARED STUD
(EUROPE spec vehicles)
from £8.48
from £8.48
SCREW TIE, FUEL TANK Genuine Lamborghini - New (to order)
SCREW TIE, FUEL TANK Genuine Lamborghini - Used In stock
# 003
MPN: 400201452
SECURING PIN
(EUROPE spec vehicles)
from £5.07
from £5.07
STUD, FUEL TANK BAND Genuine Lamborghini - New (to order)
STUD, FUEL TANK BAND Genuine Lamborghini - Used In stock
# 004
MPN: 400201365C
UNDERLAY
(EUROPE spec vehicles)
from £16.59
from £16.59
GASKET F.TANK REAR PART TO BOD Genuine Lamborghini - New (to order)
# 005
MPN: 400201656B
TENSIONING STRAP
RIGHT (EUROPE spec vehicles)
from £29.41
from £29.41
STRAP Genuine Lamborghini - New (to order)
# 006
MPN: N90848003
HEX COLLARED BOLT
M8X18 (EUROPE spec vehicles)
from £2.94
from £2.94
HEXAGON FLANGE M8X18 Genuine Lamborghini - New (to order)
# 007
MPN: N0126453
RETAINING WASHER
(EUROPE spec vehicles)
from £0.53
from £0.53
WASHER Genuine Lamborghini - New In stock
# 008
MPN: 400201657B
RETAINING BAR
(EUROPE spec vehicles)
from £22.54
from £22.54
CLAMPING COLLAR Genuine Lamborghini - New (to order)
# 009
MPN: N91057801
PIN
(EUROPE spec vehicles)
from £11.65
from £11.65
STUD Genuine Lamborghini - New (to order)
# 010
MPN: N90847903
HEXAGON HEAD BOLT (COMBI)
M6X15 (EUROPE spec vehicles)
from £0.59
from £0.59
This part replaces part number N90847901
HEXAGON FLANGE M6 X 15 Genuine Lamborghini - New In stock
BOLT HEX HD (COMBI) Genuine Porsche Part - New (to order)
# 011
MPN: 400201654A
TENSIONING STRAP
(EUROPE spec vehicles)
from £15.76
from £15.76
STRAP Genuine Lamborghini - New (to order)
STRAP Genuine Lamborghini - Used In stock
# 012
MPN: 400201655A
TENSIONING STRAP
LEFT (EUROPE spec vehicles)
from £29.75
from £29.75
STRAP Genuine Lamborghini - New (to order)
# 016
MPN: 400201365B
UNDERLAY
(EUROPE spec vehicles)
from £11.22
from £11.22
GASKET F.TANK EXTERNAL BAND Genuine Lamborghini - New (to order)
# 017
MPN: 400201365A
UNDERLAY
(EUROPE spec vehicles)
from £7.38
from £7.38
CENTRAL GASKET FUEL TANK PROT. Genuine Lamborghini - New (to order)
# 018
MPN: 400201365D
UNDERLAY
(EUROPE spec vehicles)
from £9.81
from £9.81
BACKING Genuine Lamborghini - New (to order)
# 019
MPN: 400201365E
UNDERLAY
(EUROPE spec vehicles)
from £13.91
from £13.91
BACKING Genuine Lamborghini - New (to order)
# 021
MPN: 400201365F
UNDERLAY
(EUROPE spec vehicles)
from £5.36
from £5.36
BACKING Genuine Lamborghini - New (to order)
# 022
MPN: 400201365
UNDERLAY
(EUROPE spec vehicles)
from £22.54
from £22.54
FLANGE FAST.FUEL PUMP Genuine Lamborghini - New (to order)
