lamborghini gallardo coupe (2008) rear axle parts diagram

505.05.00 - rear axle

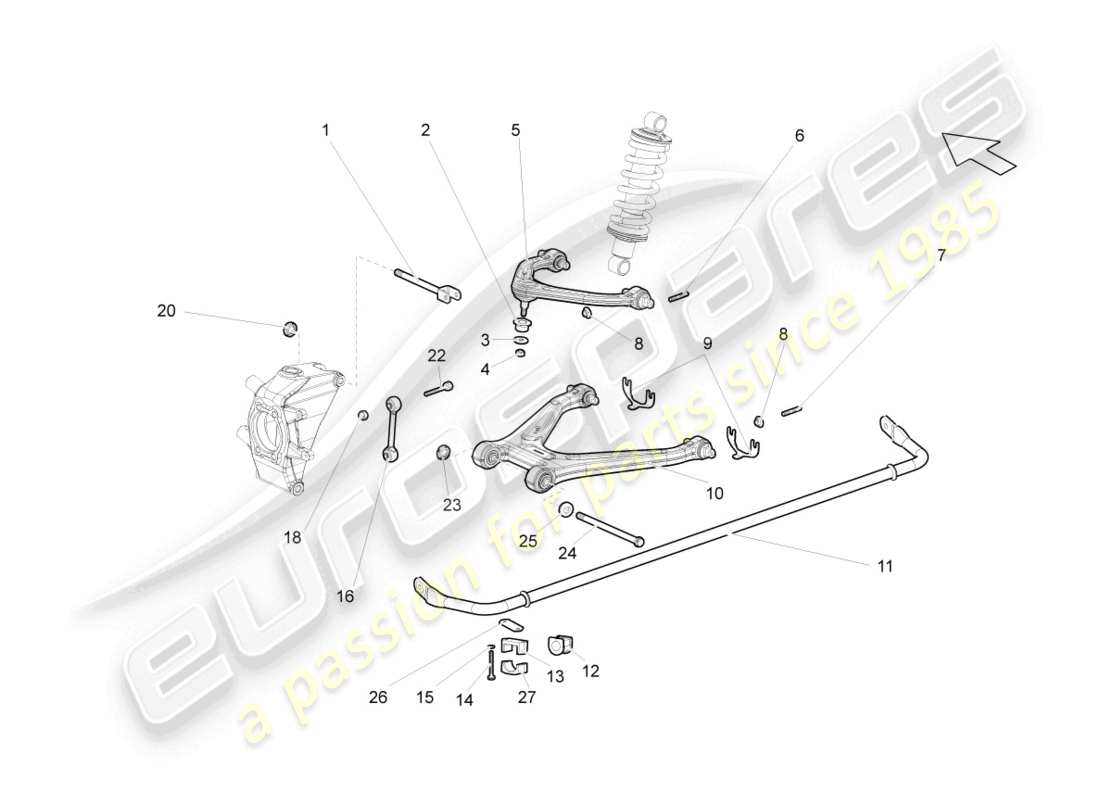

Lamborghini Gallardo Coupe (2008) REAR AXLE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 400505183D
SECURING ELEMENT
(EUROPE spec vehicles)
from £21.66
from £21.66
FASTENING PART Genuine Lamborghini - New In stock
FASTENING PART Genuine Lamborghini - Used In stock
# 002
MPN: 400407171B
BUSH
(EUROPE spec vehicles)
from £251.51
from £251.51
THREADED BUSH Genuine Lamborghini - New (to order)
# 003
MPN: 400505179B
SPACER BUSH
(EUROPE spec vehicles)
from £29.65
from £29.65
SPACER Genuine Lamborghini - New (to order)
# 004
MPN: N90323706
HEXAGON COLLAR NUT SELF-LOCKING
M12X1,5 (EUROPE spec vehicles)
from £2.68
from £2.68
This part replaces part number N90323704
HEXAGON CLAMP NUT Genuine Lamborghini - New In stock
# 004
MPN: WHT000874
CLAMPING NUT
M12X1,5 (EUROPE spec vehicles)
from £5.95
from £5.95
NUT Genuine Lamborghini - New (to order)
# 005
MPN: 400505323B
WISHBONE
UPPER (EUROPE spec vehicles)
from £715.15
from £715.15
This part replaces part number 400505323 - and 2 more. Click to view details
track control arm Genuine Lamborghini - New (to order)
track control arm Genuine Lamborghini - Used In stock
# 006
MPN: N91062101
THREADED PIN
M8X23 (EUROPE spec vehicles)
from £14.41
from £14.41
STUD Genuine Lamborghini - New (to order)
# 007
MPN: N91062001
THREADED PIN
M8X31 (EUROPE spec vehicles)
from £11.48
from £11.48
STUD Genuine Lamborghini - New (to order)
# 008
MPN: N90226404
HEXAGON COLLAR NUT SELF-LOCKING
M8 (EUROPE spec vehicles)
from £1.26
from £1.26
HEX.NUT W/ FLANGE Genuine Lamborghini - New In stock
SHOULDERED HEX. NUT, Genuine Porsche Part - New (to order)

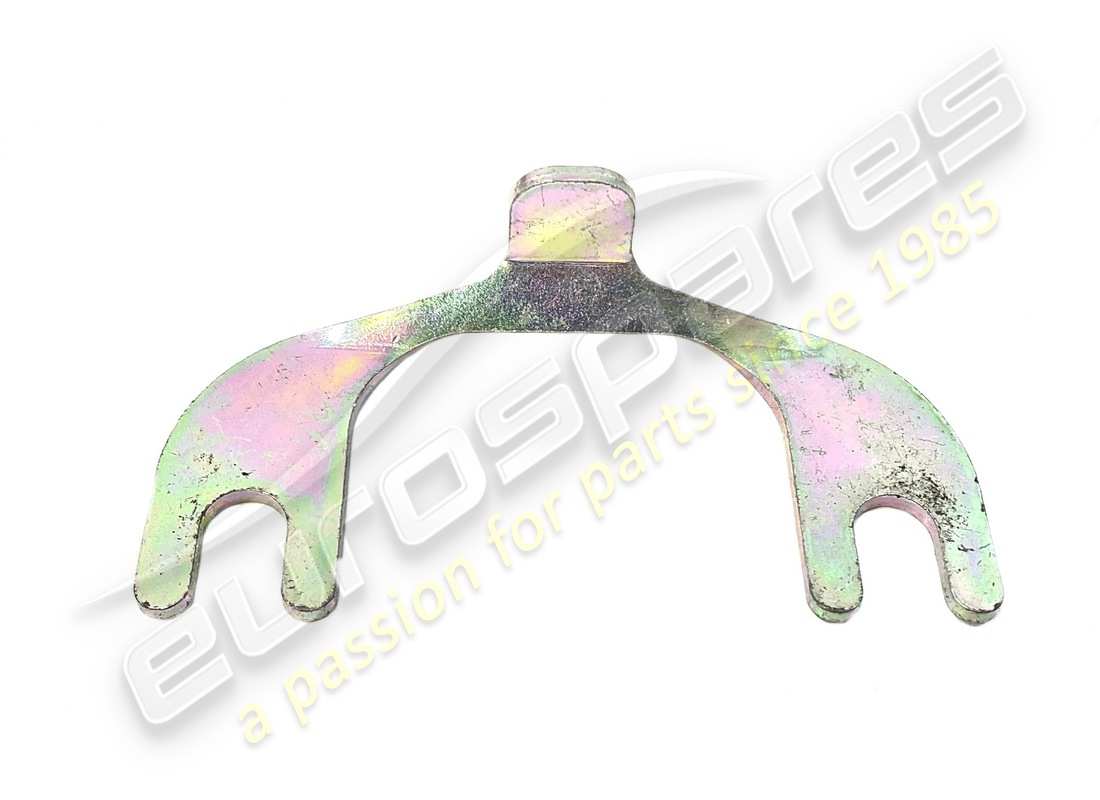

# 009
MPN: 400407203
BALANCING PLATE
0,5 (EUROPE spec vehicles)
from £59.81
from £59.81
This part replaces part number 400407379
INTERMEDIATE SHIM Genuine Lamborghini - New In stock

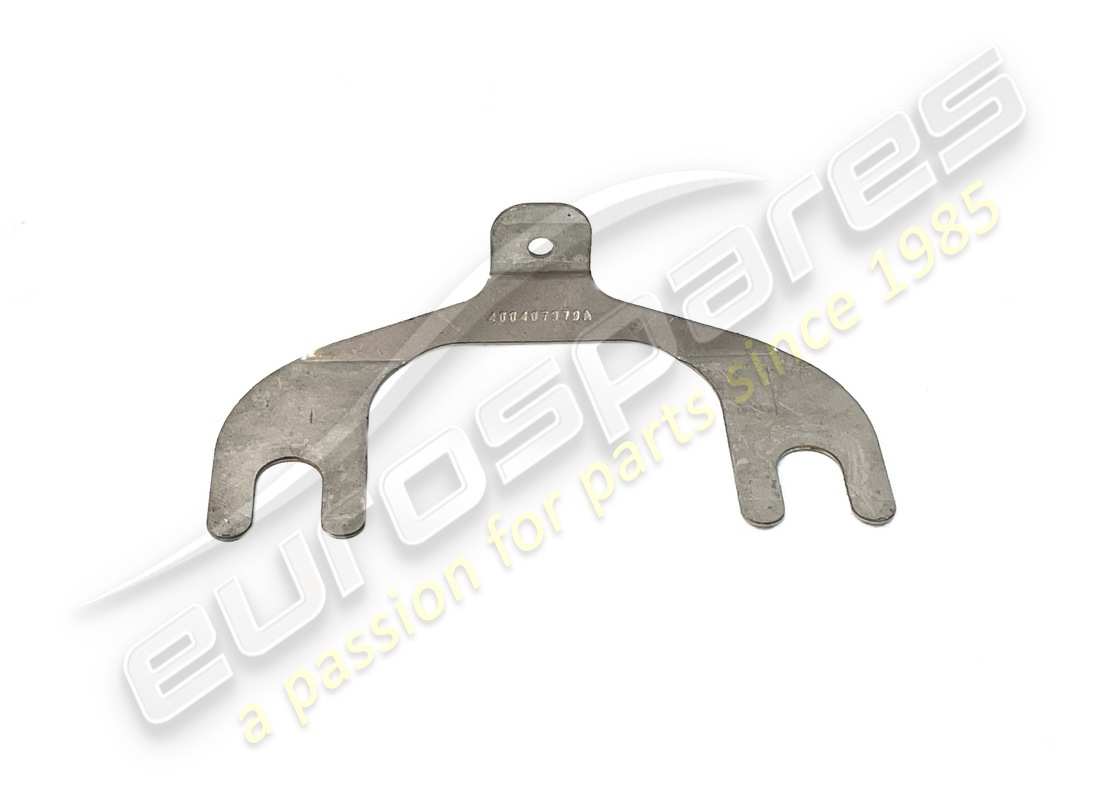

# 009
MPN: 400407379A
BALANCING PLATE
1,0 (EUROPE spec vehicles)
from £19.52
from £19.52
CAMBER ADJUSTMENT Genuine Lamborghini - New (to order)

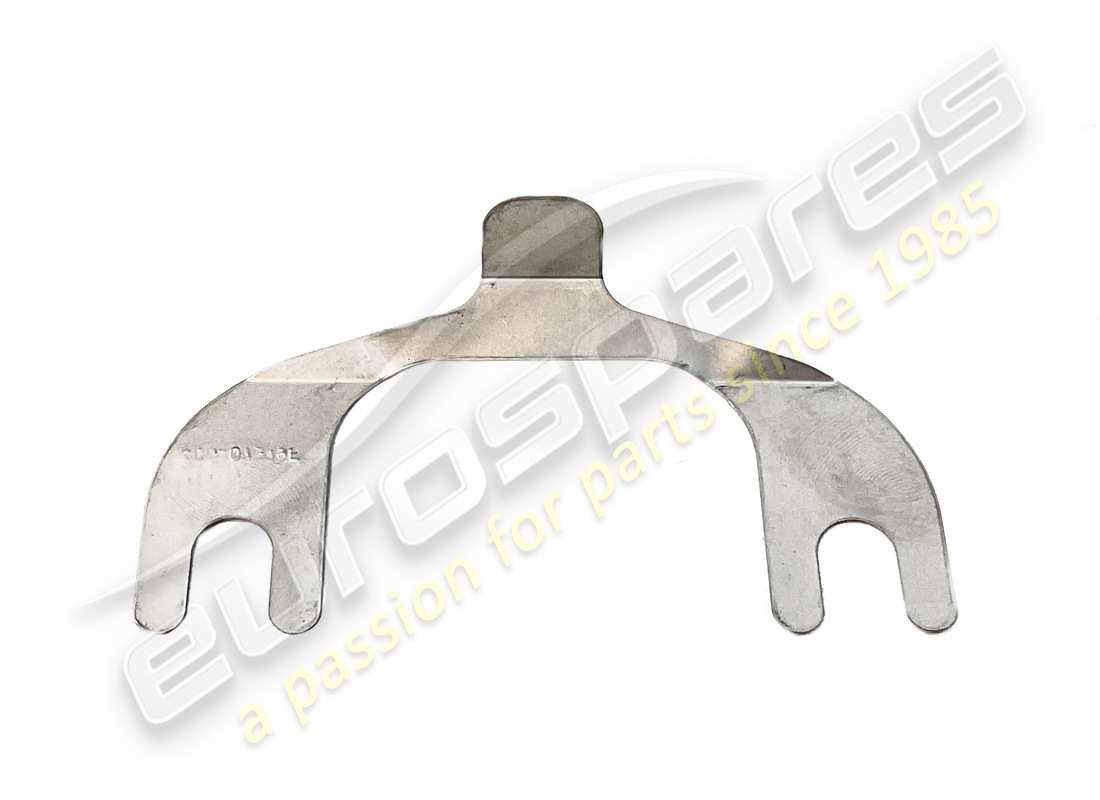

# 009
MPN: 400407379B
BALANCING PLATE
1,5 (EUROPE spec vehicles)
from £7.62
from £7.62
CAMBER ADJUSTMENT Genuine Lamborghini - New (to order)
# 009
MPN: 400407379C
BALANCING PLATE
2,0 (EUROPE spec vehicles)
from £7.62
from £7.62
CAMBER ADJUSTMENT Genuine Lamborghini - New In stock

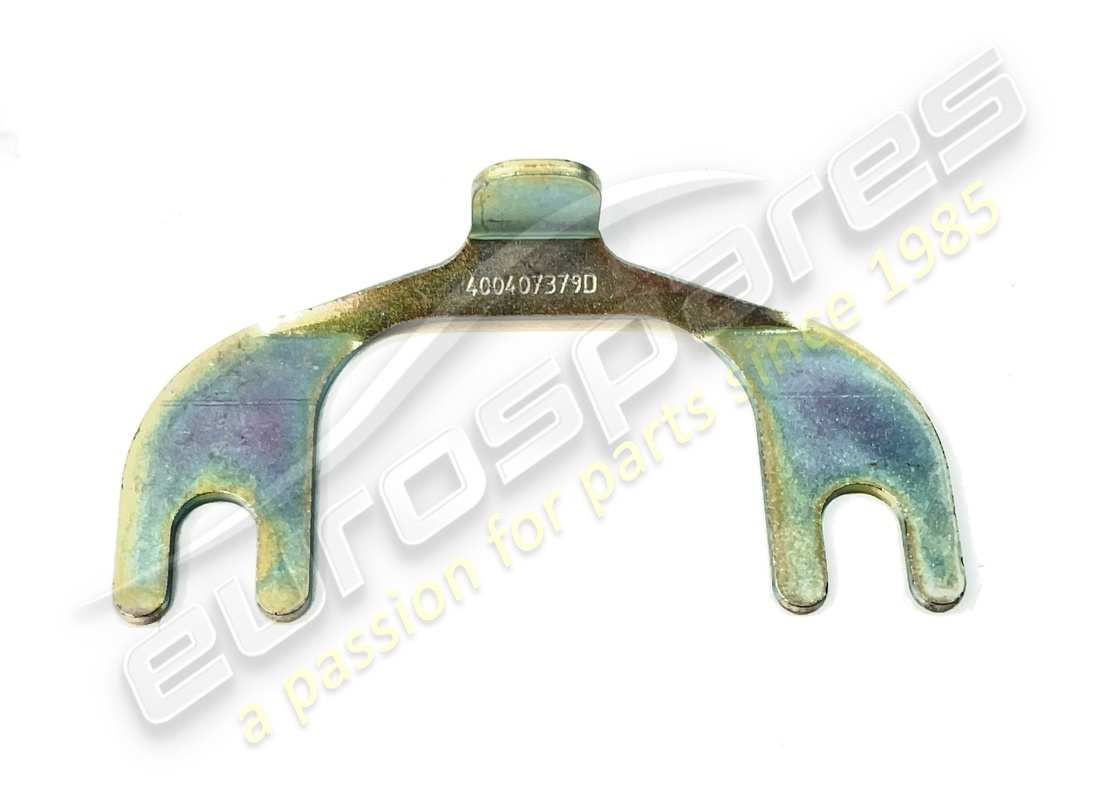

# 009
MPN: 400407379D
BALANCING PLATE
2,5 (EUROPE spec vehicles)
from £7.62
from £7.62
CAMBER ADJUSTMENT Genuine Lamborghini - New (to order)
# 009
MPN: 400407379E
BALANCING PLATE
3,0 (EUROPE spec vehicles)
from £83.78
from £83.78
CAMBER ADJUSTMENT Genuine Lamborghini - New In stock
# 009
MPN: 400407379F
BALANCING PLATE
0,3 (EUROPE spec vehicles)
from £165.97
from £165.97
CAMBER ADJUSTMENT 0.3MM Genuine Lamborghini - New In stock

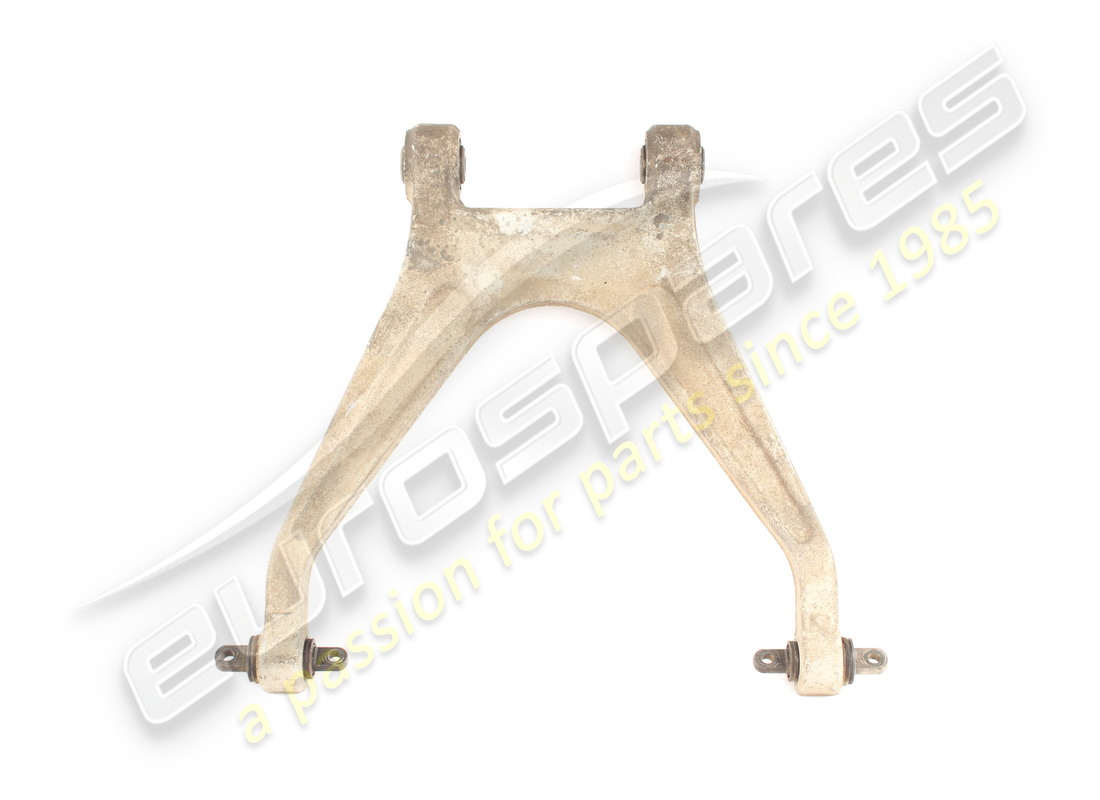

# 010
MPN: 400505311B
WISHBONE
LOWER (EUROPE spec vehicles)
from £1,703.22
from £1,703.22
This part replaces part number 400505311 - and 2 more. Click to view details
track control arm Genuine Lamborghini - New (to order)
track control arm Genuine Lamborghini - Used In stock
# 011
MPN: 400511409C
ANTI-ROLL BAR
(EUROPE spec vehicles)
from £95.52
from £95.52
stabilizer Genuine Lamborghini - New (to order)
stabilizer Genuine Lamborghini - Used In stock
# 012
MPN: 8Z0411314
RUBBER BUSH
(EUROPE spec vehicles)
from £17.59
from £17.59
BEARING Genuine Lamborghini - New (to order)
# 013
MPN: 400511036
ANTI-ROLL BAR BEARING BRACKET
UPPER (EUROPE spec vehicles)
from £115.95
from £115.95
stabilizer Genuine Lamborghini - New (to order)
# 014
MPN: WHT000923
SCREW WITH INT. SERRATIONS
M6X52 (EUROPE spec vehicles)
from £4.86
from £4.86
VITE SUPP.BARRA STABI. M6X52 Genuine Lamborghini - New (to order)
# 015
MPN: WHT001197A
WASHER
12X6,4X0,5 (EUROPE spec vehicles)
from £0.53
from £0.53
This part replaces part number WHT001197
WASHER Genuine Lamborghini - New In stock

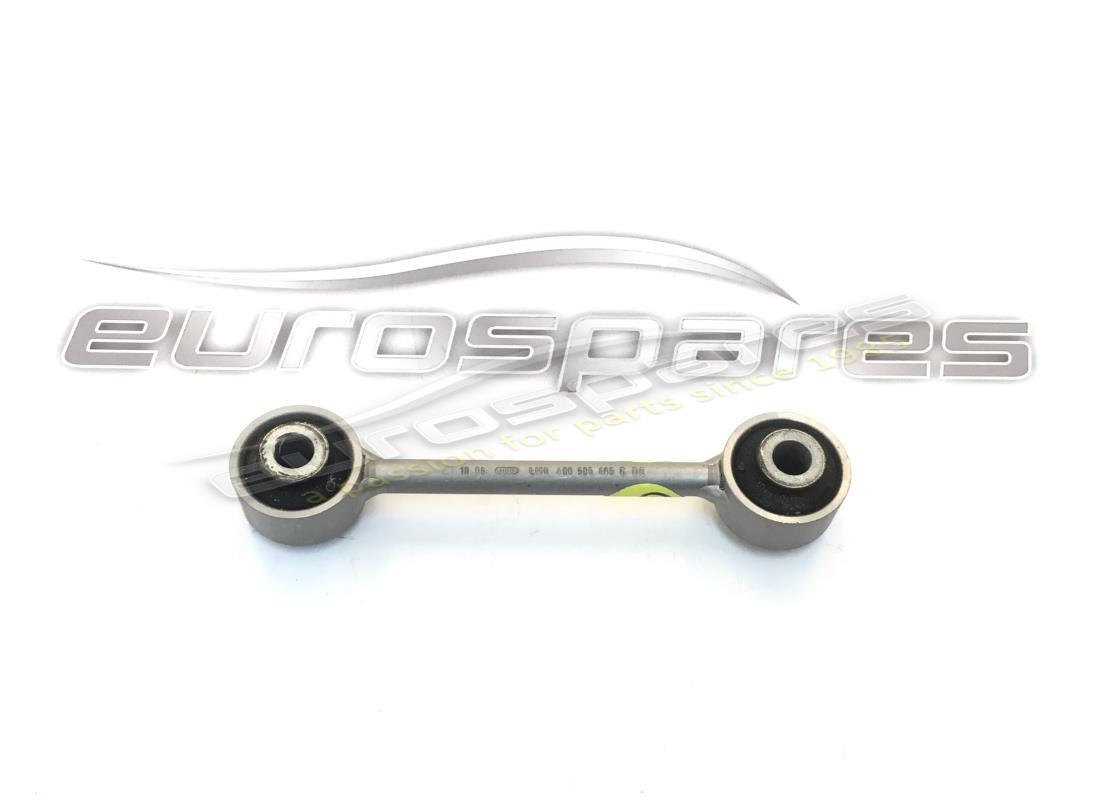

# 016
MPN: 400505465C
COUPLING ROD
(EUROPE spec vehicles)
from £31.88
from £31.88
CONNECTING LINK Genuine Lamborghini - New In stock
CONNECTING LINK Genuine Lamborghini - Used In stock
# 018
MPN: N10286110
HEXAGON COLLAR NUT SELF-LOCKING
M10 (EUROPE spec vehicles)
from £1.07
from £1.07
This part replaces part number N10286102
PREV.TORQUE TYPE M10 Genuine Lamborghini - New In stock
Genuine Porsche Part (no longer available to order)
# 020
MPN: N90323706
HEXAGON COLLAR NUT SELF-LOCKING
M12X1,5 (EUROPE spec vehicles)
from £2.68
from £2.68
This part replaces part number N90323704
HEXAGON CLAMP NUT Genuine Lamborghini - New In stock
# 022
MPN: N10699601
BOLT,HEX.HD.WITH SHOUL.(COMBI)
M10X60 (EUROPE spec vehicles)
from £2.34
from £2.34
HEXAGON FLANGE Genuine Lamborghini - New (to order)
BOLT,HEX.HD.WITH SHOUL.(COMBI) Genuine Porsche Part - New (to order)
# 023
MPN: N10268603
HEXAGON NUT
M14X1,5 (EUROPE spec vehicles)
from £4.19
from £4.19
HEX.HEAD CLAMPING NUT Genuine Lamborghini - New (to order)
# 024
MPN: 400505119
HEX COLLARED BOLT
(EUROPE spec vehicles)
from £89.81
from £89.81
This part replaces part number 400505445
FIXING SCREW Genuine Lamborghini - New In stock
# 025
MPN: 400407739
SHIM
1MM (EUROPE spec vehicles)
from £2.54
from £2.54
SPACER BUSH 1 MM Genuine Lamborghini - New In stock
# 025
MPN: 400407740
SHIM
1,5MM (EUROPE spec vehicles)
from £1.66
from £1.66
SPACER BUSH 1,5 MM Genuine Lamborghini - New In stock
# 025
MPN: 400407742
SHIM
2MM (EUROPE spec vehicles)
from £1.90
from £1.90
SPACER BUSH 2 MM Genuine Lamborghini - New In stock
# 025
MPN: 400407749
SHIM
0,5MM (EUROPE spec vehicles)
from £1.30
from £1.30
SPACER BUSH 0,5 MM Genuine Lamborghini - New In stock
# 026
MPN: 400411175A
DISTANCE PLATE
(EUROPE spec vehicles)
from £83.78
from £83.78
SPACER PLATE Genuine Lamborghini - New (to order)
# 027
MPN: 400511035
ANTI-ROLL BAR BEARING BRACKET
LOWER (EUROPE spec vehicles)
from £32.67
from £32.67
stabilizer Genuine Lamborghini - New (to order)
