lamborghini gallardo coupe (2008) gas discharge headlight parts diagram

941.01.00 - GAS DISCHARGE HEADLIGHT

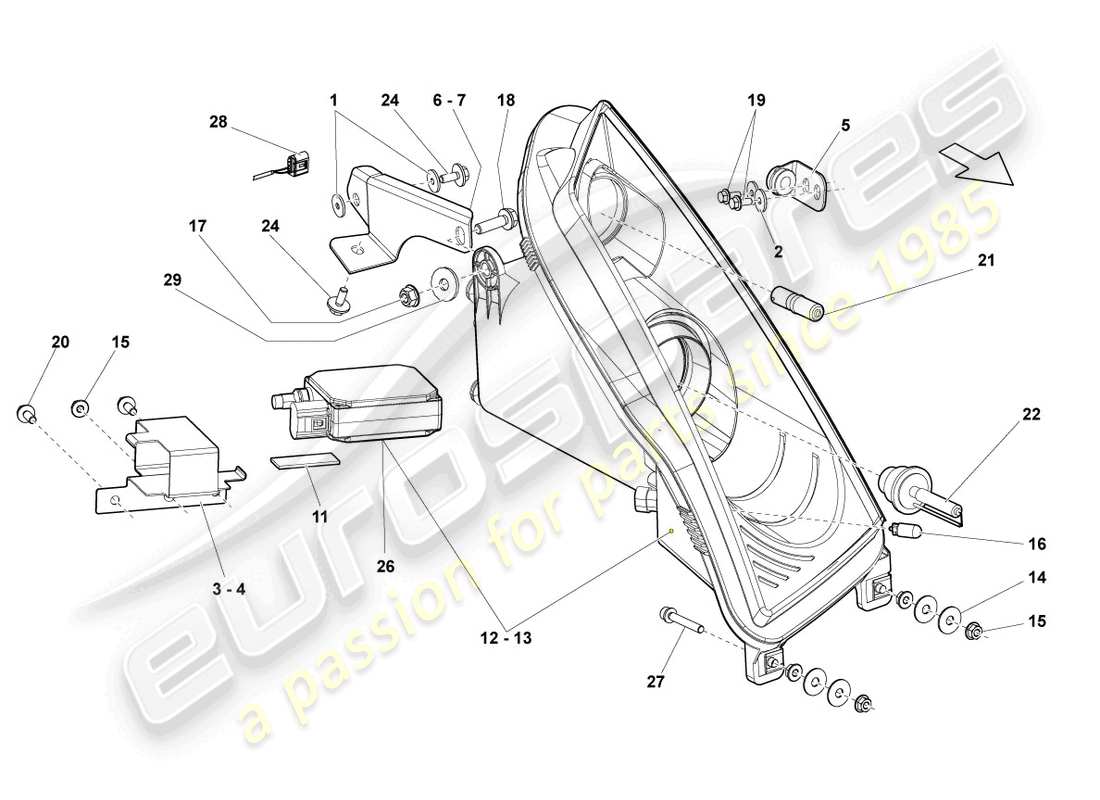

Lamborghini Gallardo Coupe (2008) GAS DISCHARGE HEADLIGHT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 000
MPN: 400955487
SHIM
(EUROPE spec vehicles)
from £12.26
from £12.26
INTERMEDIATE PIECE Genuine Lamborghini - New (to order)
INTERMEDIATE PIECE Genuine Lamborghini - Used In stock
# 000
MPN: N91045401
CABLE TIES
5.0X140 (EUROPE spec vehicles)
from £0.53
from £0.53
CABLE TIE Genuine Lamborghini - New (to order)
# 001
MPN: 410407295
COMPENSATION WASHER
1,0 (EUROPE spec vehicles)
from £2.76
from £2.76
SPACER RING Genuine Lamborghini - New (to order)
# 002
MPN: WHT000778
WASHER
30X36X1 (EUROPE spec vehicles)
from £0.51
from £0.51
WASHER 5.3X15X1.5 ISO7093-1 Genuine Lamborghini - New In stock
# 003
MPN: 400907461
RETAINER FOR CONTROL UNIT
LEFT (EUROPE spec vehicles)
from £7.46
from £7.46
BRACKET Genuine Lamborghini - New (to order)
BRACKET Genuine Lamborghini - Used In stock
# 004
MPN: 400907462
RETAINER FOR CONTROL UNIT
RIGHT (EUROPE spec vehicles)
from £7.46
from £7.46
BRACKET Genuine Lamborghini - New (to order)
BRACKET Genuine Lamborghini - Used In stock
# 005
MPN: 400941455
BRACKET
(EUROPE spec vehicles)
from £85.46
from £85.46
BRACKET Genuine Lamborghini - New (to order)
# 006
MPN: 400941613
MOUNTING FOR MAIN BEAM HEADL.
LEFT (EUROPE spec vehicles)
from £29.21
from £29.21
BRACKET Genuine Lamborghini - New In stock
BRACKET Genuine Lamborghini - Used In stock
# 007
MPN: 400941614
MOUNTING FOR MAIN BEAM HEADL.
RIGHT (EUROPE spec vehicles)
from £29.21
from £29.21
BRACKET Genuine Lamborghini - New (to order)
BRACKET Genuine Lamborghini - Used In stock
# 011
MPN: 400959645
SOUND ABSORBER PIECE
(EUROPE spec vehicles)
from £0.94
from £0.94
sound absorber Genuine Lamborghini - New (to order)
# 012
MPN: 401941003E
GAS DISCHARGE HEADLIGHT
LEFT (EUROPE spec vehicles)
from £2,981.45
from £2,981.45
headlamp Genuine Lamborghini - New (to order)
# 013
MPN: 401941004E
GAS DISCHARGE HEADLIGHT
RIGHT (EUROPE spec vehicles)
from £1,639.80
from £1,639.80
GAS DISCHARGE HEADLIGHT RIGHT Genuine Lamborghini - New (to order)
GAS DISCHARGE HEADLIGHT RIGHT Genuine Lamborghini - Used In stock
# 014
MPN: N0116945
WASHER
7X22 (EUROPE spec vehicles)
from £0.53
from £0.53
This part replaces part number N0116946
WASHER 7.1X22X1.3 Genuine Lamborghini - New In stock
# 015
MPN: N01508213
HEXAGON COLLAR NUT
M6 (EUROPE spec vehicles)
from £0.47
from £0.47
This part replaces part number 008200614 which we have in stock - and 2 more. Click to view details
HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
shouldered hex. nut Genuine Porsche Part - New In stock
# 016
MPN: N10445502
HALOGEN BULB 'LONGLIFE'
6W (EUROPE spec vehicles)
from £10.56
from £10.56
BULB Genuine Lamborghini - New In stock
# 017
MPN: N02300313
HEXAGON COLLAR NUT SELF-LOCKING
M8 (EUROPE spec vehicles)
from £1.26
from £1.26
This part replaces part number N0230038
PREV.TORQUE TYPE M8 Genuine Lamborghini - New (to order)
SHOULDERED HEX. NUT, Genuine Porsche Part - New (to order)
# 018
MPN: N0903168
HEXAGON HEAD BOLT (COMBI)
M8X30 (EUROPE spec vehicles)
from £1.09
from £1.09
HEX. BOLT WITH Genuine Lamborghini - New In stock
# 019
MPN: N10338302
SETTING SCREW
M5X12 (EUROPE spec vehicles)
from £0.47
from £0.47
This part replaces part number N10338301
HEXAGON FLANGE BOL Genuine Lamborghini - New In stock
SET SCREW Genuine Porsche Part - New (to order)
# 020
MPN: N10338903
HEX COLLARED BOLT
M6X16 (EUROPE spec vehicles)
from £0.53
from £0.53
HEXAGON FLANGE Genuine Lamborghini - New (to order)
BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
# 021
MPN: N10445601
HALOGEN BULB
21W (EUROPE spec vehicles)
from £16.51
from £16.51
BULB Genuine Lamborghini - New (to order)
# 022
MPN: N10445703
GAS DISCHARGE LAMP
35W (EUROPE spec vehicles)
from £113.91
from £113.91
DISCHARGE LAMP Genuine Lamborghini - New In stock
# 024
MPN: N90847903
HEXAGON HEAD BOLT (COMBI)
M6X15 (EUROPE spec vehicles)
from £0.59
from £0.59
This part replaces part number N90847901
HEXAGON FLANGE M6 X 15 Genuine Lamborghini - New In stock
BOLT HEX HD (COMBI) Genuine Porsche Part - New (to order)
# 026
MPN: 3B0941641
CONTROL UNIT FOR GAS DISCHARGE LAMP
(EUROPE spec vehicles)
from £541.06
from £541.06
HEADLAMP ECU Genuine Lamborghini - New In stock
HEADLAMP ECU Genuine Lamborghini - Used In stock
# 027
MPN: N10709301
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
M6X38 (EUROPE spec vehicles)
from £0.56
from £0.56
HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
# 028
MPN: 400998003
REPAIR SET
(EUROPE spec vehicles)
from £1.56
from £1.56
repair kit Genuine Lamborghini - New In stock
# 029
MPN: N0116974
WASHER
10,1X30X1,5 (EUROPE spec vehicles)
from £0.56
from £0.56
WASHER Genuine Lamborghini - New In stock
