091 - Front Bumpers

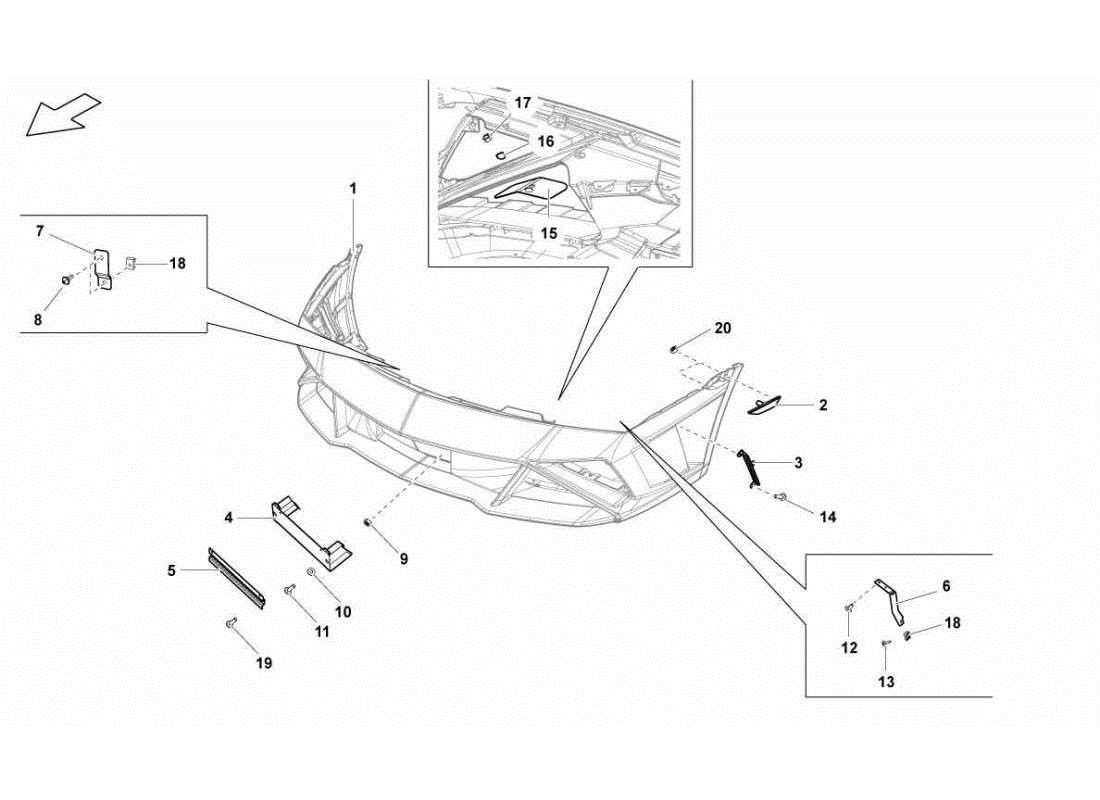

Lamborghini Gallardo STS II SC FRONT BUMPERS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
-
FRONT BUMPER ASSEMBLY (SEE TABLE 807.09 REF.1)
# 002
MPN: 400945119B
FRONT LEFT SIDE MARKER
from £141.37
from £141.37
# 002
MPN: 400945119D
FRONT LEFT SIDE MARKER (WHITE COLORED - OPTIONAL)
Supersession
Supersession
# 002
MPN: 400945120B
FRONT RIGHT SIDE MARKER
from £141.37
from £141.37
This part replaces part number 400945120
# 002
MPN: 400945120D
FRONT RIGHT SIDE MARKER (WHITE COLORED - OPTIONAL)
Supersession
Supersession
# 003
MPN: 400807925D
LEFT GRID
from £73.00
from £73.00
# 003
MPN: 400807925E
LEFT GRID (STYLE PACKAGE)
from £230.86
from £230.86
# 003
MPN: 400807926D
RIGHT GRID
from £132.73
from £132.73
# 003
MPN: 400807926E
RIGHT GRID (STYLE PACKAGE)
from £230.86
from £230.86
# 004
MPN: 400807287B
LICENSE PLATE HOLDER
from £60.53
from £60.53
# 005
MPN: 400807287C
License Plate Holder (valid Only For China)
from £60.53
from £60.53
# 006
MPN: 400807193A
LH BRACKET
from £25.60
from £25.60
# 006
MPN: 400807194A
RH BRACKET
from £25.60
from £25.60
# 007
MPN: 400807677
BRACKET
from £18.83
from £18.83
# 008
MPN: N10569501
SCREW M5X16
from £1.26
from £1.26
# 009
MPN: 400807955
RIVETED CAP NUT M6
# 010
MPN: N01166623
WASHER
from £0.94
from £0.94
This part replaces part number WHT000909
# 011
MPN: N10451404
SCREW M6X16
from £0.47
from £0.47
# 012
MPN: 4E0831701
SCREW
from £0.64
from £0.64
# 013
MPN: N90772802
SCREW M6X16
# 014
MPN: N90986803
SCREW ST4.2X13.0
from £0.63
from £0.63
This part replaces part number N90986801
# 015
MPN: 400807471
LH BRACKET
from £114.57
from £114.57
# 015
MPN: 400807472
RH BRACKET
from £114.57
from £114.57
# 016
MPN: 400807175
SPACER
from £108.09
from £108.09
# 017
MPN: N01118312
SELFLOCK M6 NUT
from £1.15
from £1.15
This part replaces part number 008200606
# 018
MPN: N90981701
CLIP
from £0.57
from £0.57
# 019
MPN: N10637302
SCREW M5X20 (VALID ONLY FOR CHINA)
from £0.63
from £0.63
# 020
MPN: N10017307
NUT M5
from £1.16
from £1.16
