107 - Doors

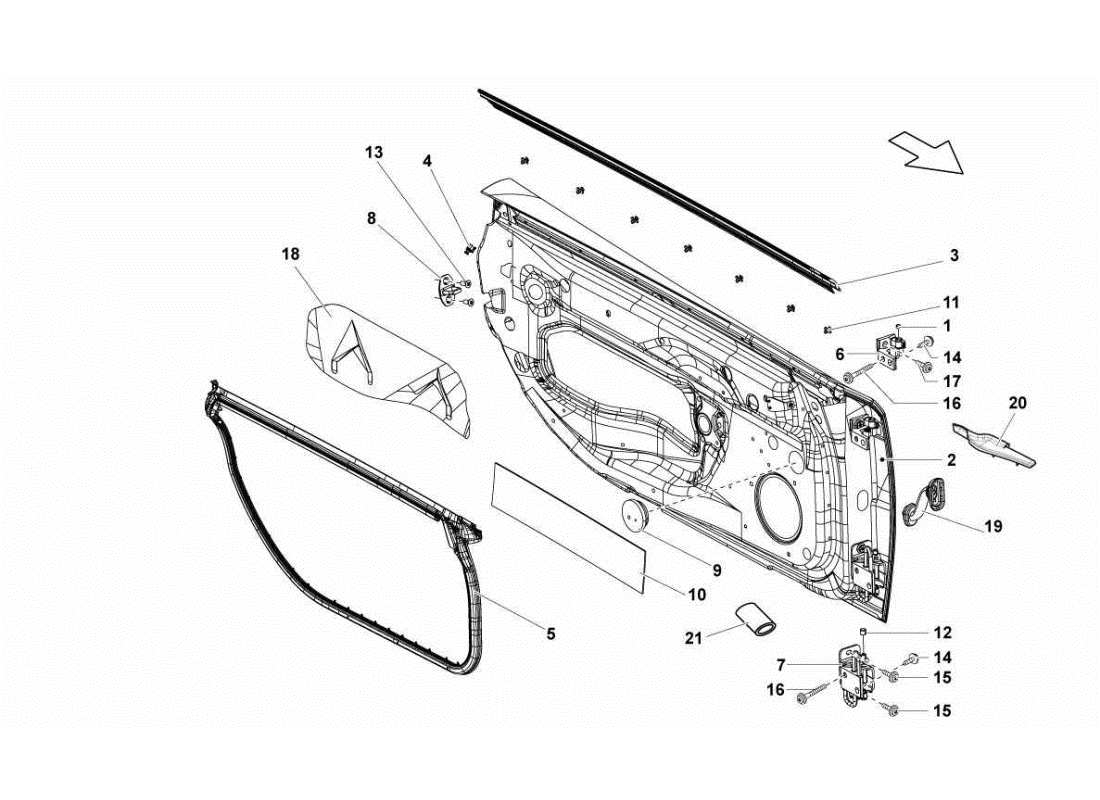

Lamborghini Gallardo STS II SC DOORS Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 1H0837947
SCREW COVER
from £0.53
from £0.53
# 002
MPN: 400831021
DOOR, LH
from £2,467.50
from £2,467.50
DOOR Genuine Lamborghini - New (other) In stock
Valid for LHS - GTR Gallardo - Spec only - Inner cut out
Valid for LHS - GTR Gallardo - Spec only - Inner cut out
# 002
MPN: 400831022
DOOR, RH
from £1,680.00
from £1,680.00
# 003
MPN: 400837477A
GLASS WEATHERSTRIP, LH
from £90.36
from £90.36
# 003
MPN: 400837478A
GLASS WEATHERSTRIP, RH
from £90.36
from £90.36
# 004
MPN: 400837497
COUPLING RING, LH
from £3.38
from £3.38
# 004
MPN: 400837498
COUPLING RING, RH
from £3.38
from £3.38
# 005
MPN: 400837911C
DOOR WEATHERSTRIP, OUTER LH
from £106.28
from £106.28
# 005
MPN: 400837912C
DOOR WEATHERSTRIP, OUTER RH
from £193.24
from £193.24
# 006
MPN: 4E0831401A
HINGE, UPPER LH
from £25.07
from £25.07
# 006
MPN: 4E0831402A
HINGE, UPPER RH
from £25.07
from £25.07
# 007
MPN: 4E0831411C
HINGE, LOWER LH
from £37.09
from £37.09
# 007
MPN: 4E0831412C
HINGE, LOWER RH
from £37.09
from £37.09
# 008
MPN: 8E0837033
CLOSING BRACKET
from £6.57
from £6.57
# 009
MPN: 8E0971841E
BUSHING
from £7.40
from £7.40
# 010
MPN: 420837805
INSULATING COVERING
from £12.84
from £12.84
# 011
MPN: 8L3837199B
WINDOW COVERING FASTENER
from £0.62
from £0.62
# 012
MPN: 8L3837947
SCREW COVER
from £0.53
from £0.53
# 013
MPN: N91017401
SCREW M8X22
from £0.78
from £0.78
# 014
MPN: WHT001237
SCREW M8X40
from £0.94
from £0.94
# 015
MPN: WHT001230
SCREW M8X27
from £2.55
from £2.55
This part replaces part number 8L0837453
# 016
MPN: N91060501
SCREW M8X130X80
from £32.86
from £32.86
# 017
MPN: 8H0831701
SCREW M10X34
from £1.21
from £1.21
# 018
MPN: 400863979
LH INSULATION
from £12.49
from £12.49
# 018
MPN: 400863980
RH INSULATION
from £12.49
from £12.49
# 019
MPN: 8P3959845A
SHEATH
from £5.85
from £5.85
# 020
MPN: 400863051
LH COVER
from £3.38
from £3.38
# 020
MPN: 400863052
RH COVER
from £3.38
from £3.38
# 021
MPN: 3B0971790
SLEEVE
from £0.64
from £0.64
