lamborghini gallardo spyder (2008) tail light parts diagram

945.01.00 - TAIL LIGHT

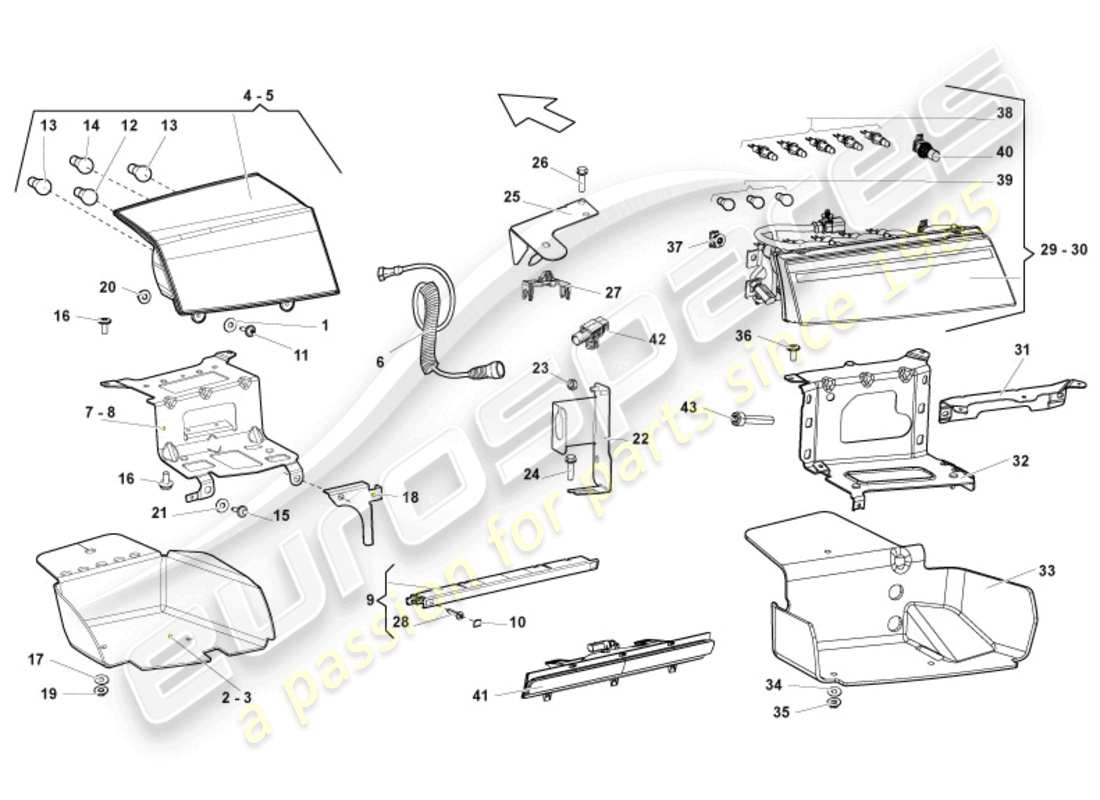

Lamborghini Gallardo Spyder (2008) TAIL LIGHT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: WHT000778
          WASHER
          30X36X1
          from £0.53
          from £0.53
          WASHER 5.3X15X1.5 ISO7093-1 Genuine Lamborghini - New In stock
          # 004
          MPN: 400945096H
          TAIL LIGHT
          STANDARD - WITHOUT SIDE MARKER - WHITE COLORED SIDE TURN SIGNAL LIGHTS-RIGHT (EUROPE, UK spec vehicles)
          from £1,357.65
          from £1,357.65
          This part replaces part number 400945096 - and 1 more. Click to view details
          RH REAR LAMP Genuine Lamborghini - New (to order)
          # 004
          MPN: 400945096J
          TAIL LIGHT
          DARK COLORED SHIELD - WITHOUT SIDE MARKER - WHITE COLORED SIDE TURN SIGNAL LIGHTS-RIGHT - TINTED (EUROPE, UK spec vehicles)
          from £1,264.76
          from £1,264.76
          REAR COMBINATION Genuine Lamborghini - New (to order)
          # 004
          MPN: 400945096K
          TAIL LIGHT
          STANDARD - WITH DARK COLOURED SIDE TURN SIGNAL-RIGHT (USA spec vehicles)
          from £824.27
          from £824.27
          REAR COMBINATION Genuine Lamborghini - New (to order)
          # 004
          MPN: 400945096L
          TAIL LIGHT
          DARK COLORED SHIELD-RIGHT - TINTED (USA spec vehicles)
          from £712.63
          from £712.63
          REAR COMBINATION Genuine Lamborghini - New (to order)
          # 005
          MPN: 400945095H
          TAIL LIGHT
          LEFT (EUROPE, UK spec vehicles)
          from £1,657.26
          from £1,657.26
          This part replaces part number 400945095
          LH REAR LAMP Genuine Lamborghini - New (to order)
          # 005
          MPN: 400945095J
          TAIL LIGHT
          DARK COLORED SHIELD-LEFT (EUROPE, UK spec vehicles)
          from £1,264.76
          from £1,264.76
          This part replaces part number 400945095F
          REAR COMBINATION Genuine Lamborghini - New (to order)
          # 005
          MPN: 400945095K
          TAIL LIGHT
          STANDARD - WITH DARK COLOURED SIDE TURN SIGNAL --LEFT (USA spec vehicles)
          from £1,085.95
          from £1,085.95
          REAR COMBINATION Genuine Lamborghini - New (to order)
          # 005
          MPN: 400945095L
          TAIL LIGHT
          DARK COLORED SHIELD-LEFT (USA spec vehicles)
          from £1,622.37
          from £1,622.37
          REAR COMBINATION Genuine Lamborghini - New (to order)
          # 006
          -
          ADAPTER CABLE LOOM
          SEE ILLUSTRATION : 971.06,29
          # 007
          MPN: 407945568A
          MOUNTING FOR TAIL LIGHT
          RIGHT
          from £99.88
          from £99.88
          This part replaces part number 407945568
          BRACKET Genuine Lamborghini - New (to order)
          # 008
          MPN: 407945569A
          MOUNTING FOR TAIL LIGHT
          LEFT
          from £99.88
          from £99.88
          This part replaces part number 407945569
          BRACKET Genuine Lamborghini - New (to order)
          # 009
          MPN: 4B9945097A
          ADDITIONAL BRAKE LIGHT
          from £78.59
          from £78.59
          HIGH-MOUNTED STOP Genuine Lamborghini - New (to order)
          # 010
          MPN: 4B9945289
          COVER
          from £0.53
          from £0.53
          COVER,BRAKE LAMP, HIGH POSITIONED Genuine Lamborghini - New In stock
          # 011
          MPN: WHT000757
          HEXAGON SOCKET HEAD BOLT, COUNTERSUNK
          M6X16
          from £3.18
          from £3.18
          This part replaces part number 008700685
          SCREW Genuine Lamborghini - New In stock
          # 012
          MPN: N0177326
          bulb 'Longlife'
          21W
          from £3.62
          from £3.62
          BULB Genuine Lamborghini - New In stock
          # 013
          MPN: N0177383
          BULB
          P21/5W- 12V21.5W-21/5W
          from £5.45
          from £5.45
          BULB Genuine Lamborghini - New In stock
          # 014
          MPN: N10256402
          BULB, BLUE GLASS
          PY21W12V21W-21W
          from £18.93
          from £18.93
          LAMP Genuine Lamborghini - New In stock
          # 015
          MPN: N10404501
          SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
          M4X16
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 016
          MPN: N90847903
          HEXAGON HEAD BOLT (COMBI)
          M6X15
          from £0.61
          from £0.61
          This part replaces part number N90847901
          HEXAGON FLANGE M6 X 15 Genuine Lamborghini - New In stock
          BOLT HEX HD (COMBI) Genuine Porsche Part - New (to order)
          # 017
          MPN: N0116946
          WASHER
          7X22
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 018
          MPN: 400945568
          SECURING PLATE
          RIGHT
          from £51.28
          from £51.28
          BRACKET Genuine Lamborghini - New (to order)
          # 018
          MPN: 400945569
          SECURING PLATE
          LEFT
          from £128.22
          from £128.22
          BRACKET Genuine Lamborghini - New (to order)
          # 019
          MPN: N01508213
          HEXAGON COLLAR NUT
          M6
          from £0.47
          from £0.47
          This part replaces part number 008200614 which we have in stock - and 2 more. Click to view details
          HEXAGON FLANGE NUT M6 Genuine Lamborghini - New In stock
          shouldered hex. nut Genuine Porsche Part - New In stock
          Genuine Bentley Part (no longer available to order)
          # 020
          MPN: N10227805
          SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION)
          M6X20
          from £0.53
          from £0.53
          This part replaces part number N10227803
          PAN HEAD BOLT WITH WASHER Genuine Lamborghini - New In stock
          Genuine Bentley Part (no longer available to order)
          # 021
          MPN: N10663401
          FITTED WASHER
          M4X8X1
          from £0.53
          from £0.53
          WASHER Genuine Lamborghini - New In stock
          FITTED WASHER Genuine Bentley Part - New (to order)
          # 022
          -
          BRACKET
          FOR COUPÈ MODEL
          # 023
          -
          HEXAGON COLLAR NUT
          FOR COUPÈ MODEL
          # 024
          -
          HEX COLLARED BOLT
          FOR COUPÈ MODEL
          # 025
          MPN: 407971830A
          BRACKET
          from £59.76
          from £59.76
          BRACKET,PLUG Genuine Lamborghini - New (to order)
          # 026
          MPN: N10621601
          HEX SOCKET OVAL HEAD COLLARED
          M4X12
          from £1.01
          from £1.01
          HEXALOBULAR SOCKETM4X12 Genuine Lamborghini - New In stock
          HEX SOCKET OVAL HEAD COLLARED Genuine Porsche Part - New (to order)
          HEX SOCKET OVAL HEAD COLLARED Genuine Bentley Part - New (to order)
          # 027
          MPN: 1K0937545M
          BRACKET FOR CONNECTOR HOUSING
          from £1.92
          from £1.92
          COUPLING RETAINER B 9.50X6.50 Genuine Lamborghini - New In stock
          BRACKET FOR CONNECTOR HOUSING Genuine Bentley Part - New (to order)
          # 028
          -
          COVER PLUG
          CANNOT BE SOLD SEPARATELY - IT IS PART OF REF. 9
          # 029
          -
          TAIL LIGHT
          VALID FROM MODEL YEAR 09-LEFT
          # 030
          -
          TAIL LIGHT
          VALID FROM A MODEL YEAR 09-RIGHT
          # 031
          -
          BRACKET
          VALID FROM A MODEL YEAR 09-LEFT
          # 031
          -
          BRACKET
          VALID FROM A MODEL YEAR 09-RIGHT
          # 032
          -
          MOUNTING FOR TAIL LIGHT
          VALID FROM A MODEL YEAR 09-LEFT
          # 032
          -
          MOUNTING FOR TAIL LIGHT
          VALID FROM A MODEL YEAR 09-RIGHT
          # 033
          -
          HEAT INSULATION
          VALID FROM A MODEL YEAR 09-LEFT
          # 033
          -
          HEAT INSULATION
          VALID FROM A MODEL YEAR 09-RIGHT
          # 034
          -
          WASHER
          VALID FROM A MODEL YEAR 09
          # 035
          -
          HEXAGON COLLAR NUT
          VALID FROM A MODEL YEAR 09
          # 036
          -
          HEXAGON HEAD BOLT (COMBI)
          VALID FROM A MODEL YEAR 09
          # 037
          -
          COMPENSATING PIECE
          VALID FROM A MODEL YEAR 09
          # 038
          -
          BULB, YELLOW GLASS
          VALID FROM A MODEL YEAR 09
          # 039
          -
          BULB
          VALID FROM A MODEL YEAR 09
          # 040
          -
          BULB CARRIER WITH BULB
          VALID FROM A MODEL YEAR 09
          # 041
          -
          REAR FOG LIGHT
          VALID FROM A MODEL YEAR 09
          # 042
          -
          BRACKET FOR CONNECTOR HOUSING
          VALID FROM A MODEL YEAR 09
          # 043
          -
          SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD
          VALID FROM A MODEL YEAR 09
