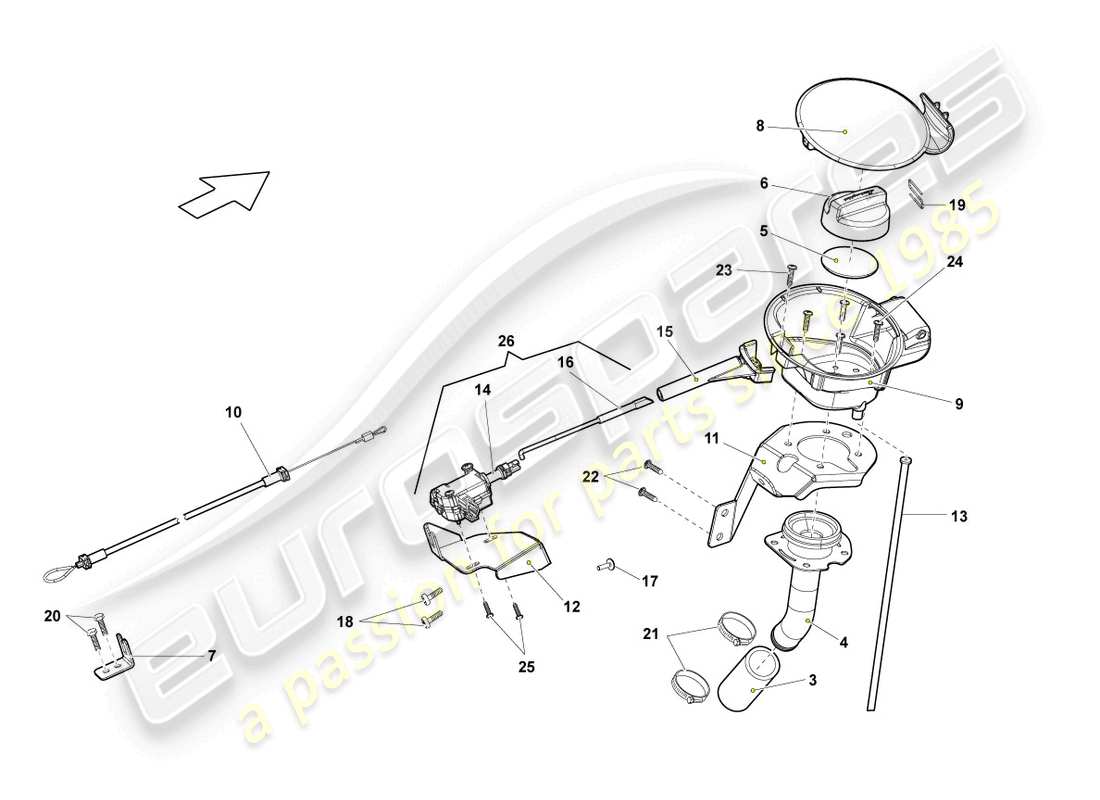

201.05.00 - FUEL FILLER FLAP

Lamborghini LP560-4 Coupe (2009) FUEL FILLER FLAP Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 003
                            MPN: 400201609
                            FUEL HOSE
                            from £14.49
                            from £14.49
                            Filling hose Genuine Lamborghini - New (to order)
                            # 004
                            MPN: 408201137
                            FUEL FILLER NECK
                            from £151.51
                            from £151.51

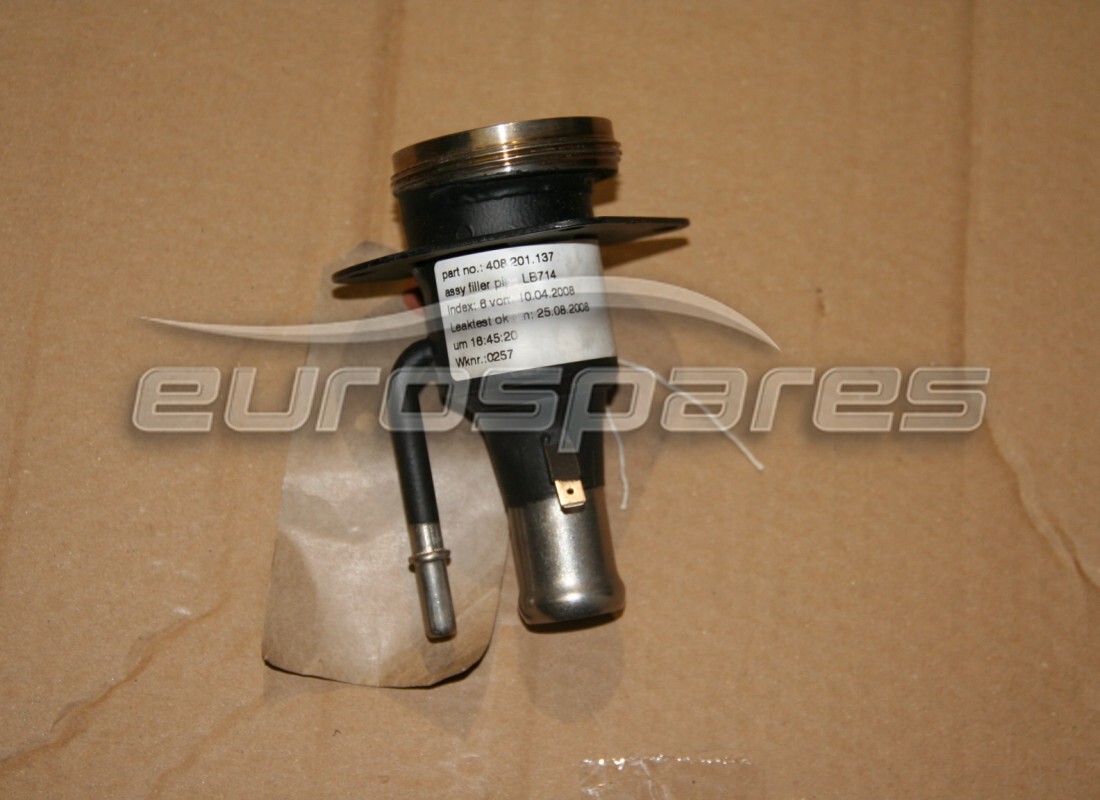

                            FUEL FILLER Genuine Lamborghini - New In stock
                            FUEL FILLER Genuine Lamborghini - Used In stock
                            # 005
                            MPN: 400201557
                            SEAL
                            from £355.90
                            from £355.90
                            SEALING WASHER Genuine Lamborghini - New (to order)
                            # 006
                            MPN: 400201587A
                            FUEL TANK CAP
                            from £578.33
                            from £578.33
                            TAPPO BENZINA Genuine Lamborghini - New (to order)
                            # 007
                            -
                            BRACKET
                            NOT AVAILABLE - NOT FOR THIS MODEL - SEE ILLUSTRATION : 825.06
                            # 008
                            MPN: 400809909
                            FUEL FILLER FLAP
                            from £61.66
                            from £61.66
                            TANK FLAP Genuine Lamborghini - New (to order)
                            TANK FLAP Genuine Lamborghini - Used In stock
                            TANK FLAP Genuine Lamborghini - New (other) In stock
                            PANITED
                            # 009
                            MPN: 400809933B
                            POT
                            from £148.04
                            from £148.04
                            INSERT,FUEL FILLER Genuine Lamborghini - New (to order)
                            # 010
                            MPN: 400809977A
                            BOWDEN CABLE
                            from £23.54
                            from £23.54
                            BOWDEN CABLE Genuine Lamborghini - New (to order)
                            # 011
                            MPN: 400810965A
                            BRACKET
                            from £40.46
                            from £40.46
                            BRACKET Genuine Lamborghini - New (to order)
                            # 012
                            MPN: 400959849B
                            BRACKET
                            from £27.06
                            from £27.06
                            BRACKET Genuine Lamborghini - New (to order)
                            # 013
                            MPN: 8Z0809937
                            HOSE
                            610MM
                            from £1.60
                            from £1.60
                            WATER OUTLET PIPE Genuine Lamborghini - New In stock
                            # 014
                            MPN: 8Z0810773A
                            THROTTLE CONTROL ELEMENT
                            from £18.27
                            from £18.27
                            This part replaces part number 407998375
                            MOTOR Genuine Lamborghini - New In stock
                            # 015
                            MPN: 8Z0810901
                            ADAPTER
                            from £2.27
                            from £2.27
                            ACTUATOR SUPPORT Genuine Lamborghini - New In stock
                            # 016
                            -
                            CONNECTING ROD
                            CANNOT BE SOLD SEPARATELY - INCLUDED IN REF. 26
                            # 017
                            MPN: N90732103
                            HEXAGON SOCKET OVAL HEAD BOLT
                            4X16
                            from £0.47
                            from £0.47
                            SCREW TP4X16-Q Genuine Lamborghini - New In stock
                            HEXAGON SOCKET OVAL HEAD Genuine Porsche Part - New (to order)
                            # 018
                            MPN: N10082911
                            HEXAGON HEAD BOLT (COMBI)
                            M6X16
                            from £0.53
                            from £0.53
                            HEXAGON HEAD BOLT M6X16-S1-N Genuine Lamborghini - New In stock
                            BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
                            # 019
                            MPN: 1J0809931
                            SPRING
                            from £2.54
                            from £2.54
                            SPRING Genuine Lamborghini - New In stock
                            # 020
                            -
                            HEXAGON BOLT
                            NOT AVAILABLE - NOT FOR THIS MODEL - SEE ILLUSTRATION : 825.06
                            # 021
                            MPN: N91115401
                            SPRING BAND CLAMP
                            A20-32X9
                            from £3.35
                            from £3.35
                            HOSE CLAMP Genuine Lamborghini - New (to order)
                            # 022
                            MPN: N10082911
                            HEXAGON HEAD BOLT (COMBI)
                            M6X16
                            from £0.53
                            from £0.53
                            HEXAGON HEAD BOLT M6X16-S1-N Genuine Lamborghini - New In stock
                            BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
                            # 023
                            MPN: N90732103
                            HEXAGON SOCKET OVAL HEAD BOLT
                            4X16
                            from £0.47
                            from £0.47
                            SCREW TP4X16-Q Genuine Lamborghini - New In stock
                            HEXAGON SOCKET OVAL HEAD Genuine Porsche Part - New (to order)
                            # 024
                            MPN: N90944603
                            OVAL HEXAGON SOCKET HEAD BOLT
                            M5X12
                            from £0.73
                            from £0.73
                            OVAL HEXAGON SOCKET HEAD BOLT M5 X 12 Genuine Lamborghini - New In stock
                            OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                            # 025
                            -
                            HEXAGON BOLT
                            CANNOT BE SOLD SEPARATELY - INCLUDED IN REF. 14
                            # 026
                            MPN: 408959776
                            THROTTLE CONTROL ELEMENT
                            from £22.58
                            from £22.58
                            LOCKING MOTOR Genuine Lamborghini - New (to order)
                            LOCKING MOTOR Genuine Lamborghini - Used In stock
                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
