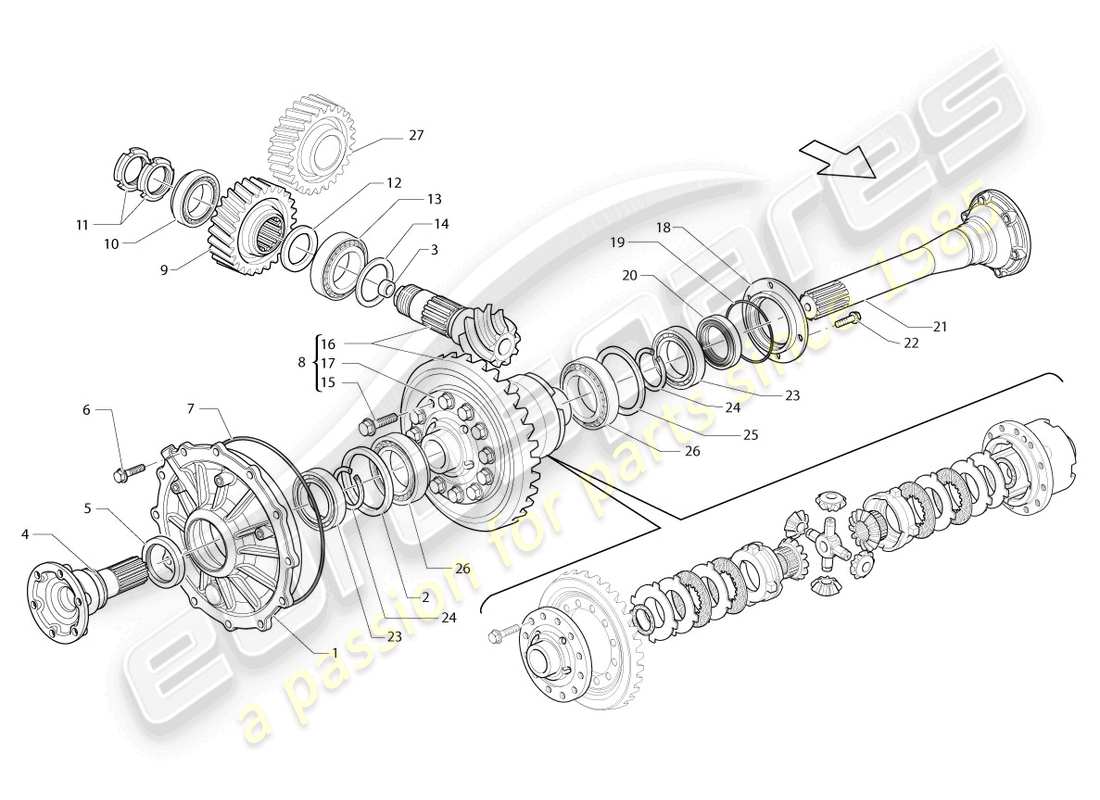

301.21.00 - DIFFERENTIAL

Lamborghini LP560-4 Coupe FL II (2013) DIFFERENTIAL Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 086525127A
              FLANGE
              from £544.72
              from £544.72
              # 002
              MPN: 086525126
              SPACER RING
              6,8
              from £74.53
              from £74.53
              # 002
              MPN: 086525126A
              SPACER RING
              6,6
              from £74.53
              from £74.53
              # 002
              MPN: 086525126B
              SPACER RING
              6,4
              from £74.53
              from £74.53
              # 002
              MPN: 086525126C
              SPACER RING
              6,2
              from £74.53
              from £74.53
              # 002
              MPN: 086525126D
              SPACER RING
              6,0
              from £74.53
              from £74.53
              # 002
              MPN: 086525126E
              SPACER RING
              5,8
              from £74.53
              from £74.53
              # 002
              MPN: 086525126F
              SPACER RING
              5,5
              from £74.53
              from £74.53
              # 003
              MPN: 086311357
              SPACER SLEEVE
              from £28.76
              from £28.76
              # 004
              MPN: 086525356D
              FLANGED SHAFT
              from £428.88
              from £428.88
              # 005
              MPN: 086525596
              SHAFT OIL SEAL
              55X70X8
              from £32.39
              from £32.39
              # 006
              -
              HEXAGON BOLT
              # 007
              MPN: N91029101
              O-RING
              215,49X3,53
              from £23.65
              from £23.65
              # 008
              MPN: 086525021F
              DIFFERENTIAL
              4WD - 25/45
              from £4,232.42
              from £4,232.42
              # 009
              MPN: 086311347A
              GEAR
              from £314.73
              from £314.73
              # 010
              MPN: 086525251
              TAPER ROLLER BEARING
              38,1X80,035X 24,608
              from £199.74
              from £199.74
              # 011
              MPN: 086307291
              CASTELLATED NUT
              M36X1,5
              from £48.94
              from £48.94
              # 012
              MPN: 086525231
              SPACER RING
              4,0
              from £64.08
              from £64.08
              # 012
              MPN: 086525271F
              SPACER RING
              3,25
              from £64.08
              from £64.08
              # 012
              MPN: 086525271G
              SPACER RING
              4,75
              from £64.08
              from £64.08
              # 013
              MPN: 086311211
              TAPER ROLLER BEARING
              44,45X88,9X 30,162
              from £162.13
              from £162.13
              # 014
              MPN: 086525241
              SPACER RING
              2,0
              from £86.90
              from £86.90
              # 014
              MPN: 086525271D
              SPACER RING
              1,75
              from £86.90
              from £86.90
              # 014
              MPN: 086525271E
              SPACER RING
              2,25
              from £86.90
              from £86.90
              # 015
              -
              HEXAGON BOLT
              # 016
              -
              PINION GEAR SET
              # 017
              -
              DIFFERENTIAL
              # 018
              MPN: 086301184A
              COVER
              from £118.03
              from £118.03
              # 019
              -
              O-RING
              # 020
              MPN: 086525597
              SHAFT OIL SEAL
              55X72X8
              from £30.53
              from £30.53
              # 021
              MPN: 086525357D
              FLANGED SHAFT
              LEFT
              from £428.88
              from £428.88
              # 022
              -
              HEXAGON BOLT
              # 023
              MPN: 086525777A
              BALL BEARING
              50X80X16
              from £66.41
              from £66.41
              This part replaces part number 086525777
              # 024
              MPN: 086525125
              SECURING RING
              from £4.88
              from £4.88
              # 025
              -
              SPACER RING
              # 025
              -
              SPACER RING
              # 025
              -
              SPACER RING
              # 025
              MPN: 086525271
              SPACER RING
              3,3
              from £54.13
              from £54.13
              # 026
              MPN: 086311124
              TAPER ROLLER BEARING
              50,8X92,075X 24,608
              from £143.54
              from £143.54
              # 027
              -
              GEAR
