701.13.00 - REAR PANEL

Lamborghini LP560-4 Spider (2009) REAR PANEL Parts Diagram

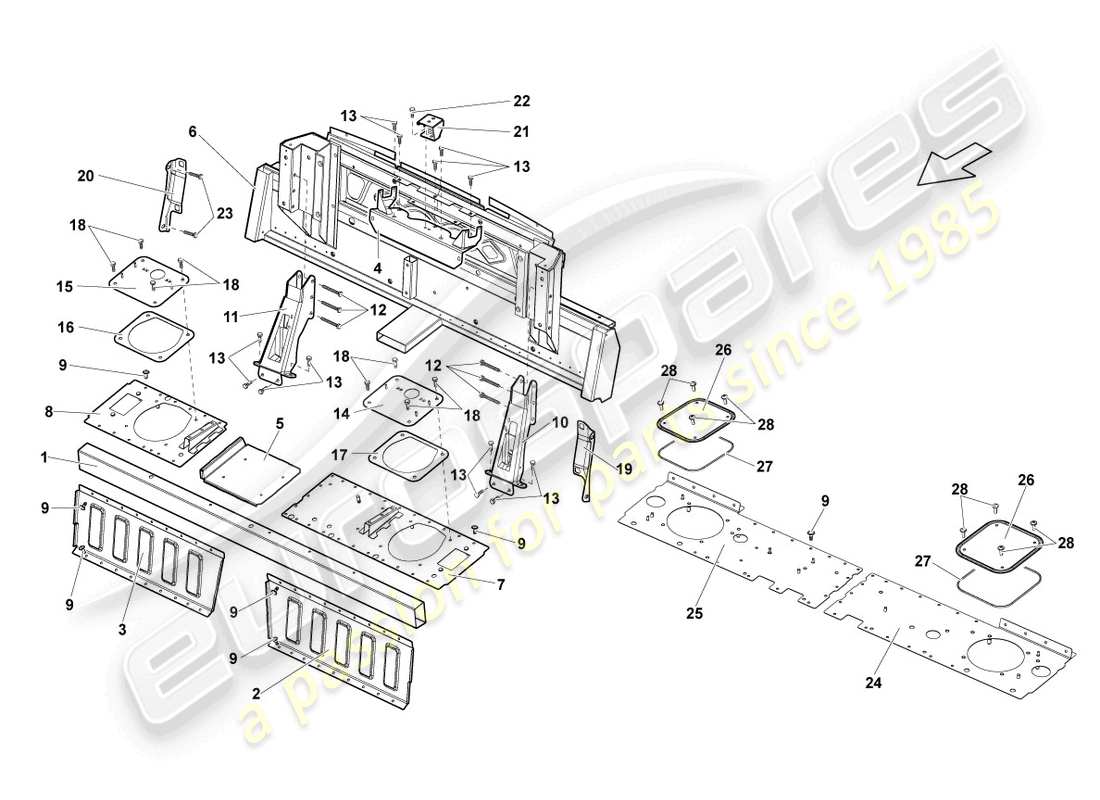

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 407803221A
            CROSS MEMBER FOR FLOOR
            from £546.45
            from £546.45
            # 002
            MPN: 408801275A
            BOTTOM PLATE
            LEFT REAR
            from £237.78
            from £237.78
            # 003
            MPN: 408801276A
            BOTTOM PLATE
            RIGHT REAR
            from £237.78
            from £237.78
            # 004
            MPN: 407803145
            CROSS MEMBER
            from £36.48
            from £36.48
            # 005
            -
            REAR SHELF PANEL
            # 006
            MPN: 407813467A
            REAR PANEL
            from £2,598.25
            from £2,598.25
            # 007
            -
            REAR SHELF PANEL
            # 008
            -
            REAR SHELF PANEL
            # 009
            MPN: N90919302
            HEXAGON SOCKET OVAL HEAD BOLT
            from £0.47
            from £0.47
            # 010
            MPN: 407803227A
            BRACE
            LEFT
            from £108.66
            from £108.66
            # 011
            MPN: 407803228A
            BRACE
            RIGHT
            from £108.66
            from £108.66
            # 012
            MPN: 407813975
            HEXAGON SOCKET HEAD BOLT
            M8X70
            from £0.52
            from £0.52
            # 013
            MPN: N91000203
            OVAL HEXAGON SOCKET HEAD BOLT
            M8X25-H
            from £3.28
            from £3.28
            # 014
            -
            COVER
            # 015
            -
            COVER
            # 016
            -
            SEAL
            # 017
            -
            SEAL
            # 018
            -
            HEXAGON HEAD BOLT (COMBI)
            # 019
            MPN: 407803581
            RETAINING BRACKET
            LEFT
            from £58.73
            from £58.73
            # 020
            MPN: 407803582
            RETAINING BRACKET
            RIGHT
            from £58.73
            from £58.73
            # 021
            MPN: 407827876
            BRACKET
            from £9.87
            from £9.87
            # 022
            MPN: N90693702
            HEXAGON BOLT
            M5X20
            from £0.53
            from £0.53
            # 023
            MPN: N10347804
            HEXAGON SOCKET HEAD BOLT (COMBI)
            M8X20
            from £1.07
            from £1.07
            # 024
            MPN: 407813503A
            REAR SHELF PANEL
            LEFT
            from £255.07
            from £255.07
            # 025
            MPN: 407813504A
            REAR SHELF PANEL
            RIGHT
            from £266.31
            from £266.31
            # 026
            MPN: 420803961
            COVER FOR SENDER
            LEFT A. RIGHT
            from £4.16
            from £4.16
            # 027
            MPN: 420803963
            SEAL RING
            LEFT A. RIGHT
            from £3.77
            from £3.77
            # 028
            MPN: N90780901
            OVAL HEXAGON SOCKET HEAD BOLT
            M6X16
            from £0.53
