857.12.00 - ROOF AND PILLAR LININGS

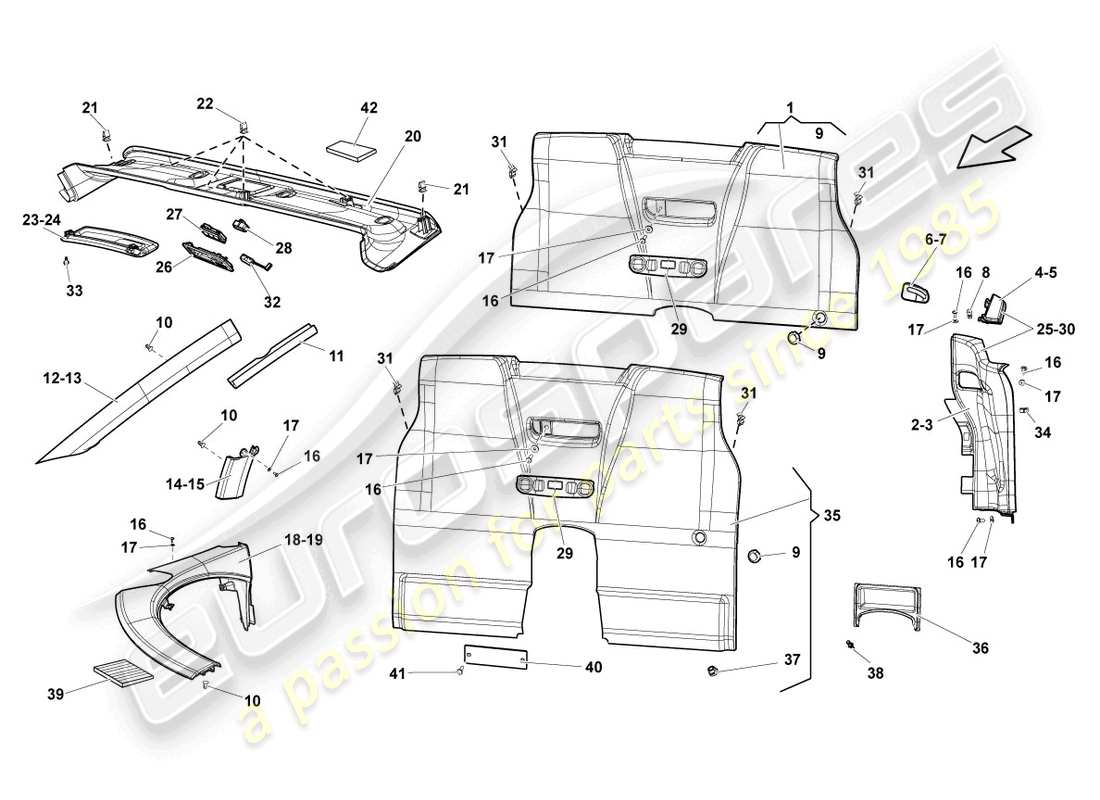

Lamborghini LP560-4 Spider (2009) ROOF AND PILLAR LININGS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            -
                            REAR PANEL TRIM
                            # 002
                            -
                            C-PILLAR TRIM
                            # 003
                            -
                            C-PILLAR TRIM
                            # 004
                            MPN: 407871303C
                            COVER
                            SUPPLY VIN-LEFT
                            from £198.01
                            from £198.01
                            # 004
                            MPN: 407871304C
                            COVER
                            SUPPLY VIN-RIGHT
                            from £198.01
                            from £198.01
                            # 005
                            -
                            COVER
                            # 006
                            MPN: 407868529
                            TRIM PLATE FOR SEAT BELT GUIDE
                            LEFT
                            from £10.89
                            from £10.89
                            # 006
                            MPN: 407868530
                            TRIM PLATE FOR SEAT BELT GUIDE
                            RIGHT
                            from £19.80
                            from £19.80
                            # 007
                            -
                            TRIM PLATE FOR SEAT BELT GUIDE
                            # 008
                            MPN: 893839821
                            CLIP
                            from £0.63
                            from £0.63
                            # 009
                            MPN: 407813519
                            SEALING PLUGS, CR
                            SUPPLY VIN
                            from £27.36
                            from £27.36
                            # 010
                            MPN: 400867299
                            CLIP
                            from £10.86
                            from £10.86
                            # 011
                            MPN: 407857361
                            FOAM PROFILE
                            LEFT
                            from £20.37
                            from £20.37
                            # 011
                            MPN: 407857362
                            FOAM PROFILE
                            RIGHT
                            from £20.37
                            from £20.37
                            # 012
                            MPN: 400867233A
                            A-PILLAR TRIM
                            LEATHER INTERIOR - SUPPLY VIN-LEFT
                            from £476.42
                            from £476.42
                            # 012
                            MPN: 400867233B
                            A-PILLAR TRIM
                            ARTIFICIAL LEATHER INTERIOR - SUPPLY VIN-LEFT
                            from £262.03
                            from £262.03
                            # 012
                            MPN: 400867234A
                            A-PILLAR TRIM
                            LEATHER INTERIOR - SUPPLY VIN-RIGHT
                            from £476.42
                            from £476.42
                            # 012
                            MPN: 400867234B
                            A-PILLAR TRIM
                            ARTIFICIAL LEATHER INTERIOR - SUPPLY VIN-RIGHT
                            from £166.75
                            from £166.75
                            # 013
                            -
                            A-PILLAR TRIM
                            # 014
                            MPN: 400867269A
                            A-PILLAR TRIM
                            LEATHER INTERIOR - SUPPLY VIN-LEFT
                            from £181.19
                            from £181.19
                            # 014
                            MPN: 400867269B
                            A-PILLAR TRIM
                            ARTIFICIAL LEATHER INTERIOR - SUPPLY VIN-LEFT
                            from £181.19
                            from £181.19
                            # 014
                            MPN: 400867270A
                            A-PILLAR TRIM
                            LEATHER INTERIOR - SUPPLY VIN-RIGHT
                            from £181.19
                            from £181.19
                            # 014
                            MPN: 400867270B
                            A-PILLAR TRIM
                            ARTIFICIAL LEATHER INTERIOR - SUPPLY VIN-RIGHT
                            from £181.19
                            from £181.19
                            # 015
                            -
                            A-PILLAR TRIM
                            # 016
                            MPN: N10569501
                            ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD
                            M5X16
                            from £1.26
                            from £1.26
                            # 017
                            MPN: WHT000778
                            WASHER
                            30X36X1
                            from £0.49
                            from £0.49
                            # 018
                            MPN: 400858345B
                            INSTRUMENT PANEL TRIM
                            LEATHER INTERIOR - SUPPLY VIN-LEFT OUTER
                            from £1,117.55
                            from £1,117.55
                            # 018
                            MPN: 400858346B
                            INSTRUMENT PANEL TRIM
                            LEATHER INTERIOR - SUPPLY VIN-RIGHT OUTER
                            from £1,117.55
                            from £1,117.55
                            # 019
                            -
                            INSTRUMENT PANEL TRIM
                            # 020
                            MPN: 407867512A
                            ROOF FRAME TRIM
                            ARTIFICIAL LEATHER INTERIOR - SUPPLY VIN
                            from £784.66
                            from £784.66
                            # 021
                            MPN: 4A0867276A
                            CLIP
                            16,5
                            from £0.62
                            from £0.62
                            # 022
                            MPN: 4A0867276
                            CLIP
                            22,3
                            from £0.58
                            from £0.58
                            # 023
                            MPN: 407857551A
                            SUN VISOR
                            ALCANTARA - SUPPLY VIN-LEFT
                            from £496.95
                            from £496.95
                            # 023
                            MPN: 407857552A
                            SUN VISOR
                            ALCANTARA - SUPPLY VIN-RIGHT
                            from £496.95
                            from £496.95
                            # 024
                            -
                            SUN VISOR
                            # 025
                            MPN: 407868257G
                            B-PILLAR TRIM
                            ARTIFICIAL LEATHER INTERIOR - SUPPLY VIN-LEFT
                            from £1,154.29
                            from £1,154.29
                            # 025
                            MPN: 407868258G
                            B-PILLAR TRIM
                            ARTIFICIAL LEATHER INTERIOR - SUPPLY VIN-RIGHT
                            from £634.86
                            from £634.86
                            # 026
                            MPN: 407858340D
                            TRIM
                            from £16.76
                            from £16.76
                            # 026
                            MPN: 407858340E
                            TRIM
                            from £285.34
                            from £285.34
                            # 027
                            MPN: 8N0959719
                            CONTROLS FOR GARAGE DOOR OPERATION
                            from £137.48
                            from £137.48
                            # 028
                            MPN: 407919234
                            CONTROL LAMP FOR AIRBAG
                            from £14.62
                            from £14.62
                            # 029
                            MPN: 407947111
                            interior light
                            from £200.69
                            from £200.69
                            # 030
                            -
                            B-PILLAR TRIM
                            # 031
                            MPN: 400868563A
                            CLIP
                            from £34.94
                            from £34.94
                            This part replaces part number 400868563
                            # 032
                            MPN: 400862373
                            MICROPHONE FOR HANDS- FREE DEVICE
                            from £8.76
                            from £8.76
                            # 033
                            MPN: WHT001194
                            HEXAGON SOCKET HEAD BOLT
                            M5X14
                            from £0.53
                            from £0.53
                            # 034
                            MPN: N90356204
                            SPEED NUT
                            M5X16,6X17
                            from £0.53
                            from £0.53
                            # 035
                            MPN: 407868573E
                            REAR PANEL TRIM
                            WITH PREDISPOSITI ON FOR USB/ CD CHANGER - SUPPLY VIN
                            from £2,334.53
                            from £2,334.53
                            # 036
                            MPN: 407868823
                            TRIM
                            from £53.27
                            from £53.27
                            # 037
                            MPN: 7L6127477
                            RUBBER BUSH
                            from £4.03
                            from £4.03
                            # 038
                            MPN: WHT002783
                            BALL PIN
                            M6X12
                            from £2.25
                            from £2.25
                            # 039
                            MPN: 400857431
                            FOAM PROFILE
                            from £8.51
                            from £8.51
                            # 040
                            -
                            Badge
                            # 041
                            -
                            COUNTERSUNK BOLT
                            # 042
                            MPN: 410817432
                            STOP BUFFER
                            from £0.89
                            from £0.89
