201.05.00 - FUEL SYSTEM

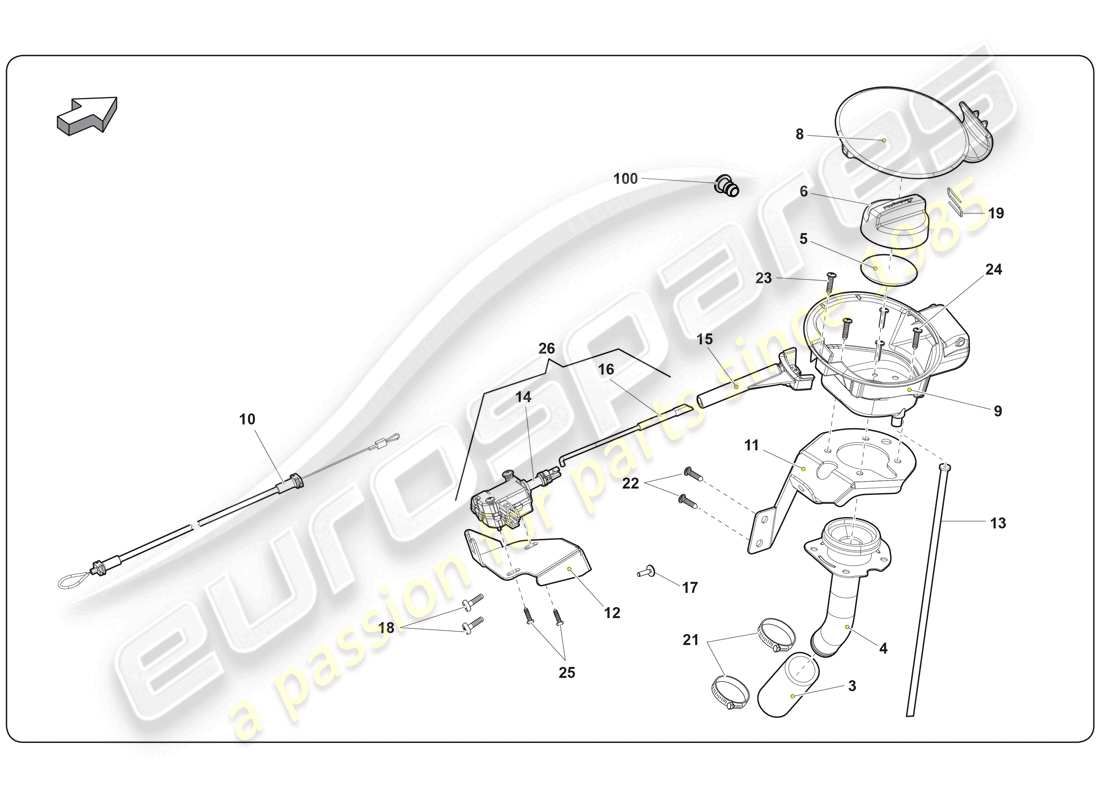

Lamborghini Super Trofeo (2009-2014) FUEL SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 003
        MPN: 400201609
        FUEL FILLER PIPE
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £14.74
        from £14.74
        Filling hose Genuine Lamborghini - New (to order)
        # 004
        MPN: 408201137
        FUEL FILLER ASSY. UPPER
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £154.48
        from £154.48
        FUEL FILLER Genuine Lamborghini - New In stock
        FUEL FILLER Genuine Lamborghini - Used In stock
        # 005
        MPN: 400201557
        GASKET
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £362.85
        from £362.85
        SEALING WASHER Genuine Lamborghini - New (to order)
        # 006
        MPN: 400201587A
        FUEL FILLER PLUG
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £589.64
        from £589.64
        This part replaces part number 006219224
        TAPPO BENZINA Genuine Lamborghini - New (to order)
        # 008
        MPN: 400809909
        FUEL FILLER LID
        from £70.13
        from £70.13
        TANK FLAP Genuine Lamborghini - New (to order)
        TANK FLAP Genuine Lamborghini - Used In stock
        TANK FLAP Genuine Lamborghini - New (other) In stock
        PANITED
        # 009
        MPN: 400809933B
        FUEL FILLER TANK
        from £150.90
        from £150.90
        INSERT,FUEL FILLER Genuine Lamborghini - New (to order)
        # 010
        MPN: 400809977A
        FUEL FILLER LID MANUAL OPENING CABLE
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £24.02
        from £24.02
        BOWDEN CABLE Genuine Lamborghini - New (to order)
        Alternative (#0R1400476) ENGINE BAY IN CARBON FIBER KIT FOR LP570 Genuine Lamborghini - New (to order)
        # 011
        MPN: 400810965A
        FUEL TANK SUPPORT BRACKET
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £41.26
        from £41.26
        BRACKET Genuine Lamborghini - New (to order)
        # 012
        MPN: 400959849B
        ACTUATOR SUPPORT BRACKET
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £27.56
        from £27.56
        BRACKET Genuine Lamborghini - New (to order)
        # 013
        MPN: 8Z0809937
        WATER DRAIN PIPE
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £1.61
        from £1.61
        WATER OUTLET PIPE Genuine Lamborghini - New In stock
        # 014
        MPN: 8Z0810773A
        ACTUATOR
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £18.59
        from £18.59
        This part replaces part number 407998375
        FUEL FLAP RELEASE MOTOR Genuine Lamborghini - New (to order)
        # 015
        MPN: 8Z0810901
        ACTUATOR ROD SUPPORT
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £2.27
        from £2.27
        ACTUATOR SUPPORT Genuine Lamborghini - New In stock
        # 016
        MPN: 408862177
        HORIZONTAL ACTUATOR ROD
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        HORIZONTAL ACTUATOR ROD Genuine Lamborghini - New (to order)
        # 017
        MPN: N90732103
        SCREW 4.0X16
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £0.47
        from £0.47
        SCREW TP4X16-Q Genuine Lamborghini - New In stock
        HEXAGON SOCKET OVAL HEAD Genuine Porsche Part - New (to order)
        HEXAGON SOCKET OVAL HEAD BOLT Genuine Bentley Part - New (to order)
        # 018
        MPN: N10082911
        SCREW M6X16.00
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £0.53
        from £0.53
        HEXAGON HEAD BOLT M6X16-S1-N Genuine Lamborghini - New In stock
        BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
        # 019
        MPN: 1J0809931
        SPRING
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £2.49
        from £2.49
        SPRING Genuine Lamborghini - New In stock
        # 021
        MPN: N91115401
        CLAMP
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £2.52
        from £2.52
        HOSE CLAMP Genuine Lamborghini - New (to order)
        SPRING BAND CLAMP Genuine Bentley Part - New (to order)
        # 022
        MPN: N10082911
        SCREW M6X16.00
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £0.53
        from £0.53
        HEXAGON HEAD BOLT M6X16-S1-N Genuine Lamborghini - New In stock
        BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
        # 023
        MPN: N90732103
        SCREW 4.0X16
        from £0.47
        from £0.47
        SCREW TP4X16-Q Genuine Lamborghini - New In stock
        HEXAGON SOCKET OVAL HEAD Genuine Porsche Part - New (to order)
        HEXAGON SOCKET OVAL HEAD BOLT Genuine Bentley Part - New (to order)
        # 024
        MPN: N90944603
        SCREW M5X12
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £0.55
        from £0.55
        OVAL HEXAGON SOCKET HEAD BOLT M5 X 12 Genuine Lamborghini - New In stock
        OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
        OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
        # 026
        MPN: 408959776
        ACTUATOR ASSEMBLY
        (Fitment: | Standard for MY09 || Standard for MY10 |)
        from £23.00
        from £23.00
        LOCKING MOTOR Genuine Lamborghini - New (to order)
        LOCKING MOTOR Genuine Lamborghini - Used In stock
        # 100
        MPN: 400201334
        BREATHER JOINT
        (Fitment: | Standard for MY10 |)
        from £129.10
        from £129.10
        CONNECTING PIECE Genuine Lamborghini - New (to order)
