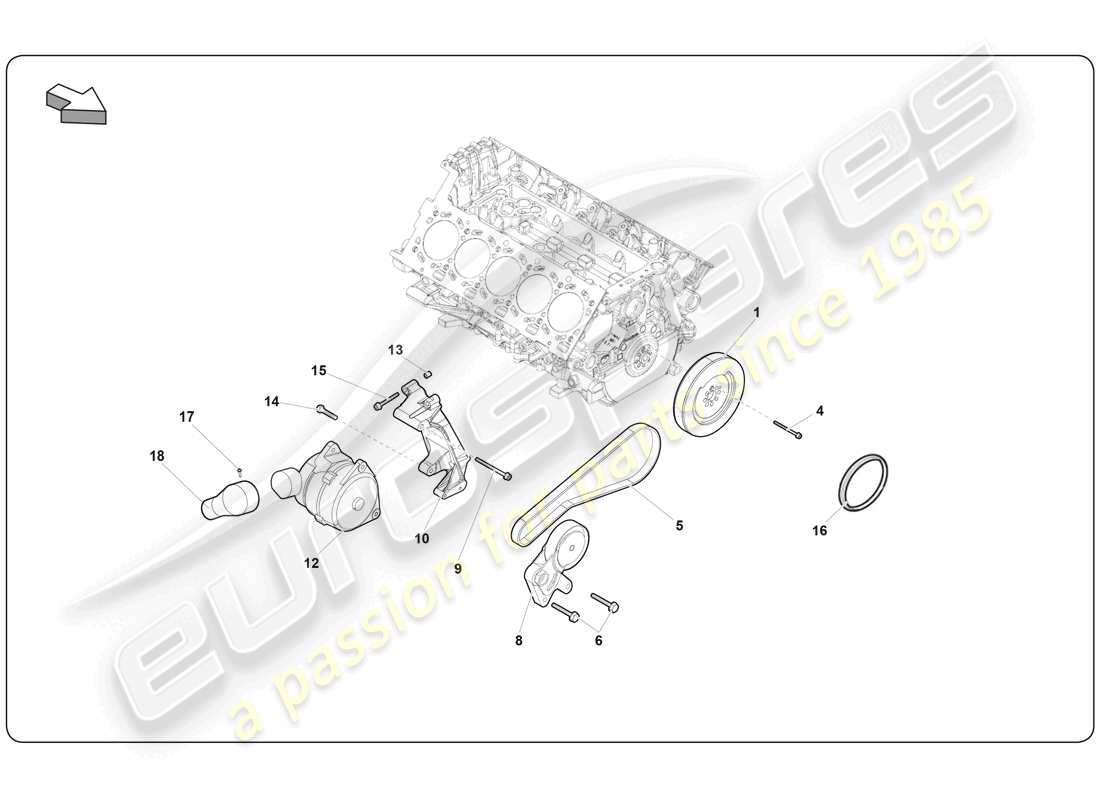

903.01.00 - ALTERNATOR

Lamborghini Super Trofeo (2009-2014) ALTERNATOR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 001
                              MPN: 07L105251Q
                              DAMPER
                              from £178.50
                              from £178.50
                              VIBRATION DAMPER Genuine Lamborghini - New (to order)
                              VIBRATION DAMPER Genuine Lamborghini - Used In stock
                              # 004
                              MPN: N91005902
                              SCREW M8X25
                              from £1.80
                              from £1.80
                              12-POINT SOCKET Genuine Lamborghini - New In stock
                              HEXAGONAL SOCKET HEAD Genuine Porsche Part - New (to order)
                              # 005
                              MPN: 07L903137T
                              BELT
                              from £119.81
                              from £119.81
                              POLY-V-BELT W17HDZ Genuine Lamborghini - New In stock
                              # 006
                              MPN: N10156206
                              SCREW M6X30
                              from £0.87
                              from £0.87
                              HEXALOBULAR SOCKETM6X30 Genuine Lamborghini - New In stock
                              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                              # 008
                              MPN: 07L903133G
                              CHAIN TIGHTENER
                              from £107.28
                              from £107.28
                              TENSIONING ROLLER Genuine Lamborghini - New In stock
                              TENSIONING ROLLER Genuine Lamborghini - Used In stock
                              # 009
                              -
                              SCREW
                              # 010
                              MPN: 07L903805S
                              SUPPORT
                              from £64.93
                              from £64.93
                              BRACKET Genuine Lamborghini - New (to order)
                              BRACKET Genuine Lamborghini - Used In stock
                              # 012
                              MPN: 079903021R
                              ALTERNATOR
                              from £682.25
                              from £682.25
                              ALTERNATOR Genuine Lamborghini - New (to order)
                              ALTERNATOR Genuine Lamborghini - Used In stock
                              # 013
                              MPN: 077115143D
                              BUSHING
                              from £8.73
                              from £8.73
                              This part replaces part number 077115143
                              SLEEVE Genuine Lamborghini - New (to order)
                              # 014
                              MPN: N10610001
                              SCREW M8X90
                              from £2.43
                              from £2.43
                              HEXAGON FLANGE M8X90 Genuine Lamborghini - New In stock
                              BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
                              # 015
                              MPN: N91151001
                              SCREW M10X50
                              from £2.94
                              from £2.94
                              12-POINT SOCKET Genuine Lamborghini - New (to order)
                              # 016
                              MPN: 07L103051D
                              SEAL
                              Supersession
                              Supersession
                              Genuine Lamborghini (no longer available to order)
                              # 017
                              MPN: 07L109084B
                              VVT
                              from £667.22
                              from £667.22
                              camshaft Genuine Lamborghini - New (to order)
                              # 018
                              MPN: 07L109083D
                              VVT
                              from £420.91
                              from £420.91
                              camshaft Genuine Lamborghini - New (to order)
