lamborghini lp580-2 coupe (2019) breather line parts diagram

103.07.00 - breather line

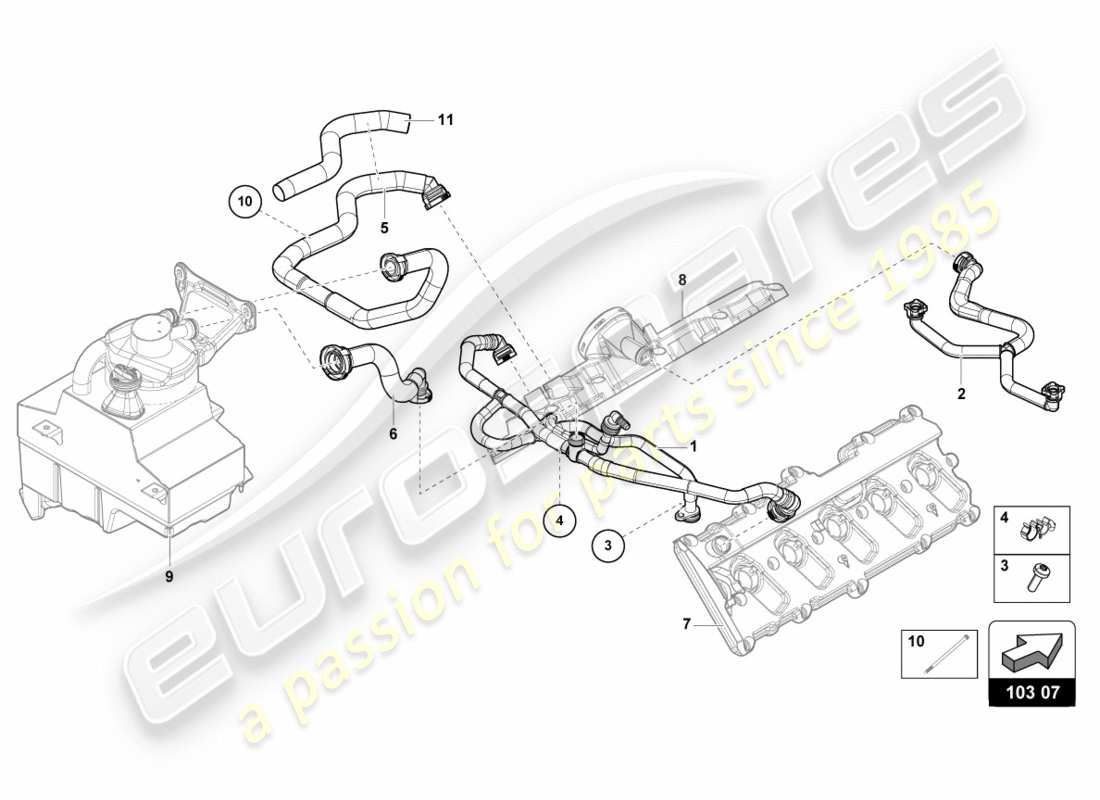

Lamborghini LP580-2 COUPE (2019) BREATHER LINE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Price
            # 001
            MPN: 07L103209AC
            VENT HOSE
            from £143.10
            from £143.10
            # 002
            MPN: 07L103209AB
            VENT HOSE
            from £48.69
            from £48.69
            # 003
            MPN: N10196103
            OVAL SOCKET HEAD BOLT WITH HEX DRIVE
            M6X18
            from £0.78
            from £0.78
            # 004
            MPN: N10733501
            RETAINER FOR BREATHER HOSE
            from £2.90
            from £2.90
            # 005
            MPN: 4S0103218B
            breather line
            from £22.13
            from £22.13
            # 006
            MPN: 4S0103211
            breather line
            from £16.34
            from £16.34
            # 007
            -
            CYLINDER HEAD COVER WITH GASKET
            # 008
            -
            CYLINDER HEAD COVER WITH GASKET
            # 009
            -
            OIL CONTAINER
            # 010
            MPN: 8A0971850C
            CABLE TIES
            7,6X302
            from £0.62
            from £0.62
            # 011
            -
            HEAT SHIELD
