lamborghini performante coupe (2020) doors parts diagram

837.01.00 - Doors

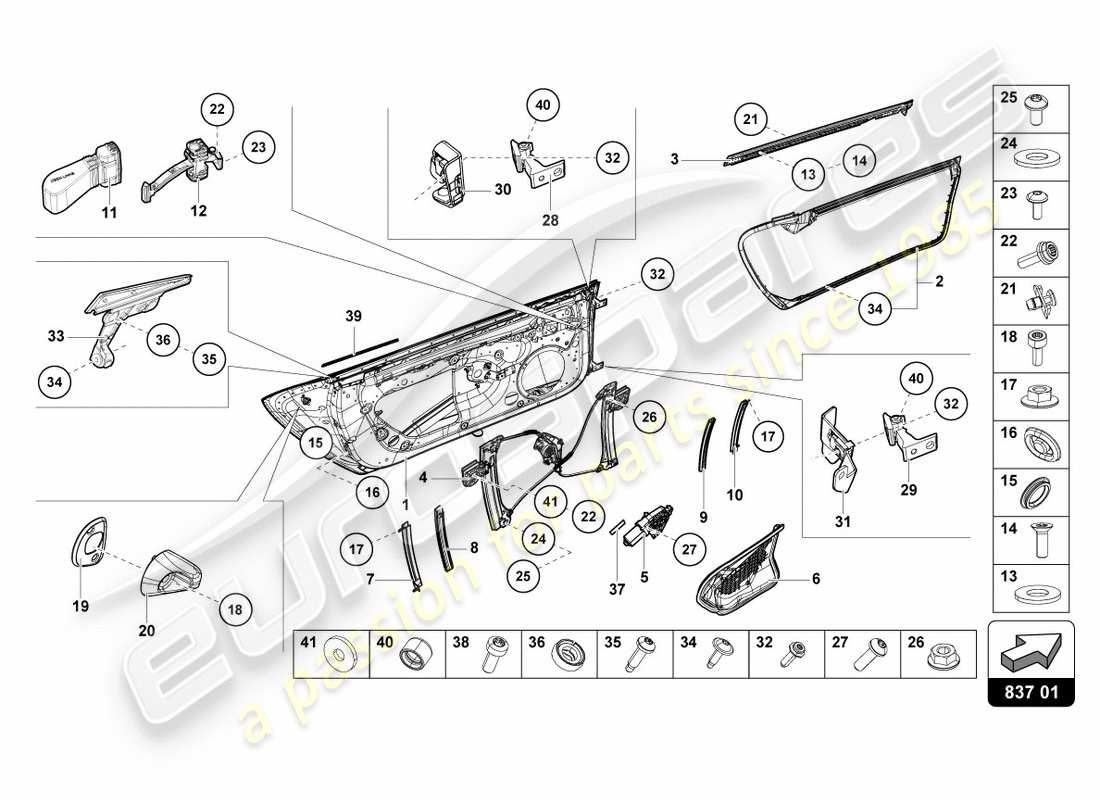

Lamborghini PERFORMANTE COUPE (2020) DOORS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 4T8831051F
          DOOR
          CONTACT YOUR AREA MANAGER-LEFT
          from £2,026.83
          from £2,026.83
          This part replaces part number 4T8831051E - and 1 more. Click to view details

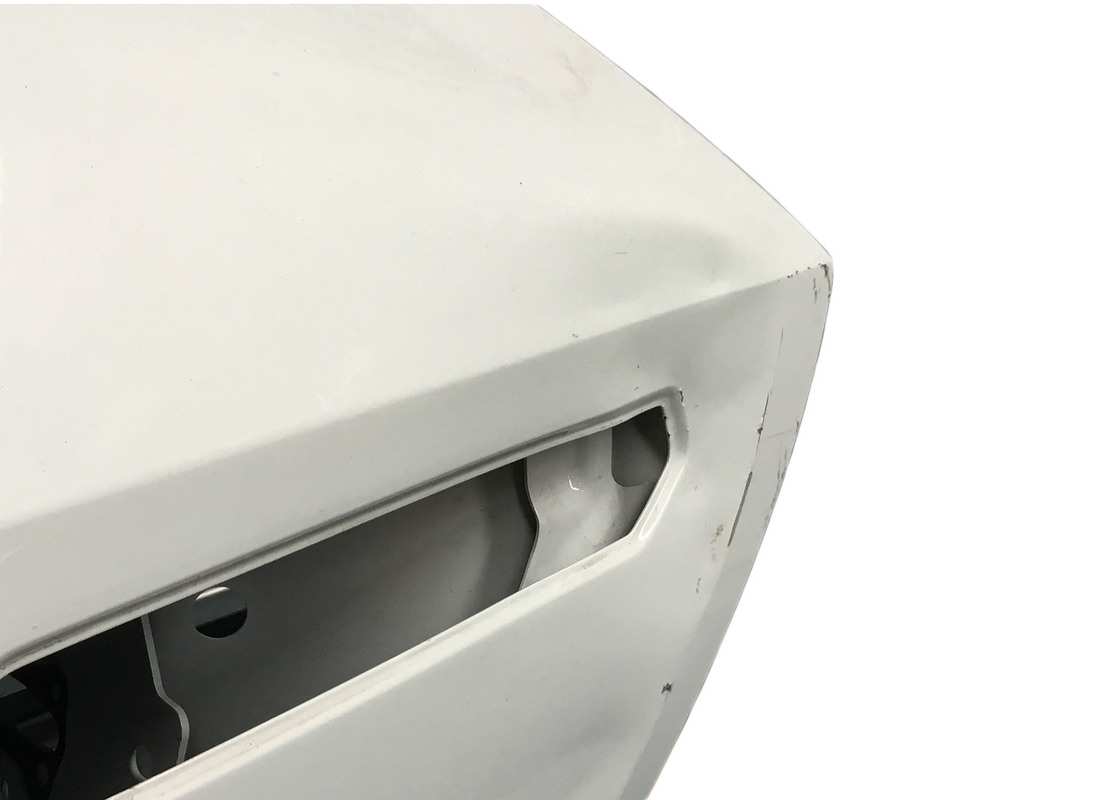

          DOOR-IN-WHITE Genuine Lamborghini - New (to order)
          DOOR-IN-WHITE Genuine Lamborghini - Damaged In stock
          # 001
          MPN: 4T8831052F
          DOOR
          CONTACT YOUR AREA MANAGER-RIGHT
          from £3,860.63
          from £3,860.63
          DOOR-IN-WHITE Genuine Lamborghini - New (to order)
          # 002
          MPN: 4T0837911C
          DOOR SEAL
          LEFT OUTER
          from £61.28
          from £61.28
          DOOR SEAL LH Genuine Lamborghini - New (to order)
          DOOR SEAL LH Genuine Lamborghini - Used In stock
          DOOR SEAL LH Genuine Lamborghini - Damaged In stock
          SMALL RIP IN RUBBER
          # 002
          MPN: 4T0837912C
          DOOR SEAL
          RIGHT OUTER
          from £96.30
          from £96.30
          DOOR SEAL RH Genuine Lamborghini - New (to order)
          DOOR SEAL RH Genuine Lamborghini - Used In stock
          # 003
          MPN: 4T0837477D
          WINDOW APERTURE SEAL
          LEFT
          from £68.48
          from £68.48
          WIN. WEATHERSTRIP Genuine Lamborghini - New (to order)
          WIN. WEATHERSTRIP Genuine Lamborghini - Used In stock
          # 003
          MPN: 4T0837478D
          WINDOW APERTURE SEAL
          RIGHT
          from £68.48
          from £68.48
          WIN. WEATHERSTRIP Genuine Lamborghini - New (to order)
          WIN. WEATHERSTRIP Genuine Lamborghini - Used In stock
          # 004
          MPN: 4T0837397C
          WINDOW REGULATOR WITHOUT MOTOR
          UNTIL VIN HLA06645 ORDER ALSO RIGHT PART-LEFT
          from £347.15
          from £347.15
          WINDOW LIFT Genuine Lamborghini - New (to order)
          WINDOW LIFT Genuine Lamborghini - Used In stock
          # 004
          MPN: 4T0837398C
          WINDOW REGULATOR WITHOUT MOTOR
          UNTIL VIN HLA06645 ORDER ALSO LEFT PART-RIGHT
          from £347.15
          from £347.15
          WINDOW LIFT Genuine Lamborghini - New (to order)
          WINDOW LIFT Genuine Lamborghini - Used In stock
          # 005
          MPN: 8K0959801B
          WINDOW REGULATOR MOTOR
          LEFT
          from £59.69
          from £59.69
          RIGHT MOTOR,WINDOW Genuine Lamborghini - New (to order)
          RIGHT MOTOR,WINDOW Genuine Lamborghini - Used In stock
          # 005
          MPN: 8K0959802B
          WINDOW REGULATOR MOTOR
          RIGHT
          from £66.58
          from £66.58
          LEFT MOTOR,WINDOW Genuine Lamborghini - New (to order)
          LEFT MOTOR,WINDOW Genuine Lamborghini - Used In stock
          # 006
          MPN: 4T0837917
          DOOR SEAL
          LEFT
          from £11.68
          from £11.68
          WATER DEFLECT RIPARO ACQUA Genuine Lamborghini - New (to order)
          WATER DEFLECT RIPARO ACQUA Genuine Lamborghini - Used In stock
          # 006
          MPN: 4T0837918
          DOOR SEAL
          RIGHT
          from £11.68
          from £11.68
          WATER DEFLECT RIPARO ACQUA Genuine Lamborghini - New (to order)
          WATER DEFLECT RIPARO ACQUA Genuine Lamborghini - Used In stock
          # 007
          MPN: 4T0837405
          WINDOW GUIDE
          LEFT
          from £25.35
          from £25.35
          GUIDE RAIL REAR LH Genuine Lamborghini - New (to order)
          GUIDE RAIL REAR LH Genuine Lamborghini - Used In stock
          # 007
          MPN: 4T0837406
          WINDOW GUIDE
          RIGHT
          from £25.35
          from £25.35
          GUIDE RAIL REAR RH Genuine Lamborghini - New (to order)
          GUIDE RAIL REAR RH Genuine Lamborghini - Used In stock
          # 008
          MPN: 4T0837933B
          SEAL
          LEFT A. RIGHT REAR
          from £27.55
          from £27.55
          WINDOW GUIDE REAR Genuine Lamborghini - New (to order)
          # 009
          MPN: 4T0837349B
          SEAL
          LEFT A. RIGHT FRONT
          from £15.44
          from £15.44
          COVER Genuine Lamborghini - New (to order)
          # 010
          MPN: 4T0831619
          WINDOW GUIDE
          WARNING UP TO VIN CLA00425 USE ALSO RIF. 2-LEFT
          from £25.35
          from £25.35
          GUIDE RAIL FRONT LH Genuine Lamborghini - New (to order)
          GUIDE RAIL FRONT LH Genuine Lamborghini - Used In stock
          # 010
          MPN: 4T0831620
          WINDOW GUIDE
          WARNING UP TO VIN CLA00425 USE ALSO RIF. 2-RIGHT
          from £25.35
          from £25.35
          GUIDE RAIL FRONT RH Genuine Lamborghini - New (to order)
          GUIDE RAIL FRONT RH Genuine Lamborghini - Used In stock
          # 011
          MPN: 8V0837267
          COVER
          LEFT A. RIGHT FRONT
          from £1.60
          from £1.60
          COVER,DOOR AUSSEN Genuine Lamborghini - New (to order)
          COVER,DOOR AUSSEN Genuine Lamborghini - Used In stock
          # 012
          MPN: 8S0837249
          DOOR CATCH
          LEFT A. RIGHT FRONT
          from £11.53
          from £11.53
          DOOR ARRESTER Genuine Lamborghini - New (to order)
          DOOR ARRESTER Genuine Lamborghini - Used In stock
          # 013
          MPN: WHT000778
          WASHER
          30X36X1
          from £0.51
          from £0.51
          WASHER 5.3X15X1.5 ISO7093-1 Genuine Lamborghini - New In stock
          # 014
          MPN: N10459201
          HEXAGON SOCKET HEAD BOLT
          M5X12
          from £0.47
          from £0.47
          Genuine Lamborghini (no longer available to order)
          hexagonal socket head (N 10459201) Genuine Porsche Part - New (to order)
          # 015
          MPN: 4H0839111
          COVER CAP
          16,2
          from £0.53
          from £0.53
          GROMMET Genuine Lamborghini - New (to order)
          # 016
          MPN: 1Z0971904A
          BUNGS
          from £0.53
          from £0.53
          PLUG Genuine Lamborghini - New (to order)
          # 017
          MPN: N90434903
          HEX. NUT WITH WASHER
          M5
          from £1.15
          from £1.15
          HEXAGON NUT W. M5 Genuine Lamborghini - New (to order)
          hex. nut with washer (N 90434903) Genuine Porsche Part - New (to order)
          # 018
          MPN: N91203201
          FLAT HEAD MULTI-POINT SOCKET BOLT
          M8X22
          from £1.47
          from £1.47
          12-POINT SOCKET M8X22 Genuine Lamborghini - New (to order)
          # 019
          MPN: 4T0831431
          DOOR SEAL
          LEFT
          from £3.69
          from £3.69
          SEAL,HINGE Genuine Lamborghini - New (to order)
          SEAL,HINGE Genuine Lamborghini - Used In stock
          # 019
          MPN: 4T0831432
          DOOR SEAL
          RIGHT
          from £3.69
          from £3.69
          SEAL,HINGE Genuine Lamborghini - New (to order)
          SEAL,HINGE Genuine Lamborghini - Used In stock
          # 020
          MPN: 4T0831121A
          REINFORCEMENT FOR DOOR HANDLE
          LEFT
          from £18.65
          from £18.65
          REINFORCEMENT HOOK DOOR LH Genuine Lamborghini - New (to order)
          REINFORCEMENT HOOK DOOR LH Genuine Lamborghini - Used In stock
          # 020
          MPN: 4T0831122A
          REINFORCEMENT FOR DOOR HANDLE
          RIGHT
          from £18.65
          from £18.65
          REINFORCEMENT HOOK DOOR RH Genuine Lamborghini - New (to order)
          REINFORCEMENT HOOK DOOR RH Genuine Lamborghini - Used In stock
          # 021
          MPN: 8L3837199B
          CLIP
          from £0.62
          from £0.62
          CLIP Genuine Lamborghini - New (to order)
          # 022
          MPN: N91084201
          SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
          M8X25
          from £1.84
          from £1.84
          12-POINT SOCKET Genuine Lamborghini - New In stock
          bolt, with polygon socket hd. (N 91084201) Genuine Porsche Part - New (to order)
          # 023
          MPN: WHT003237
          HEXAGON SOCKET FLAT HEAD BOLT
          M6X12
          from £0.74
          from £0.74
          HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
          Hexagon socket flat (WHT003237) Genuine Porsche Part - New (to order)
          # 024
          MPN: N01166623
          WASHER
          6,4X18X1,6
          from £0.94
          from £0.94
          This part replaces part number WHT000909
          WASHER Genuine Lamborghini - New In stock
          # 025
          MPN: N10124308
          OVAL HEXAGON SOCKET HEAD BOLT
          M6X20
          from £1.16
          from £1.16
          This part replaces part number N10124303
          HEXALOBULAR SOCKETM6X20 Genuine Lamborghini - New In stock
          # 026
          MPN: WHT000127
          HEXAGON NUT
          M8
          from £10.59
          from £10.59
          FLANGE NUT M8 Genuine Lamborghini - New (to order)
          # 027
          MPN: 8Z0837691C
          HEXAGON SOCKET HEAD PANEL BOLT
          5X22
          from £0.90
          from £0.90
          SCREW KUNSTSTOFFSCHR.D=5 Genuine Lamborghini - New In stock
          # 028

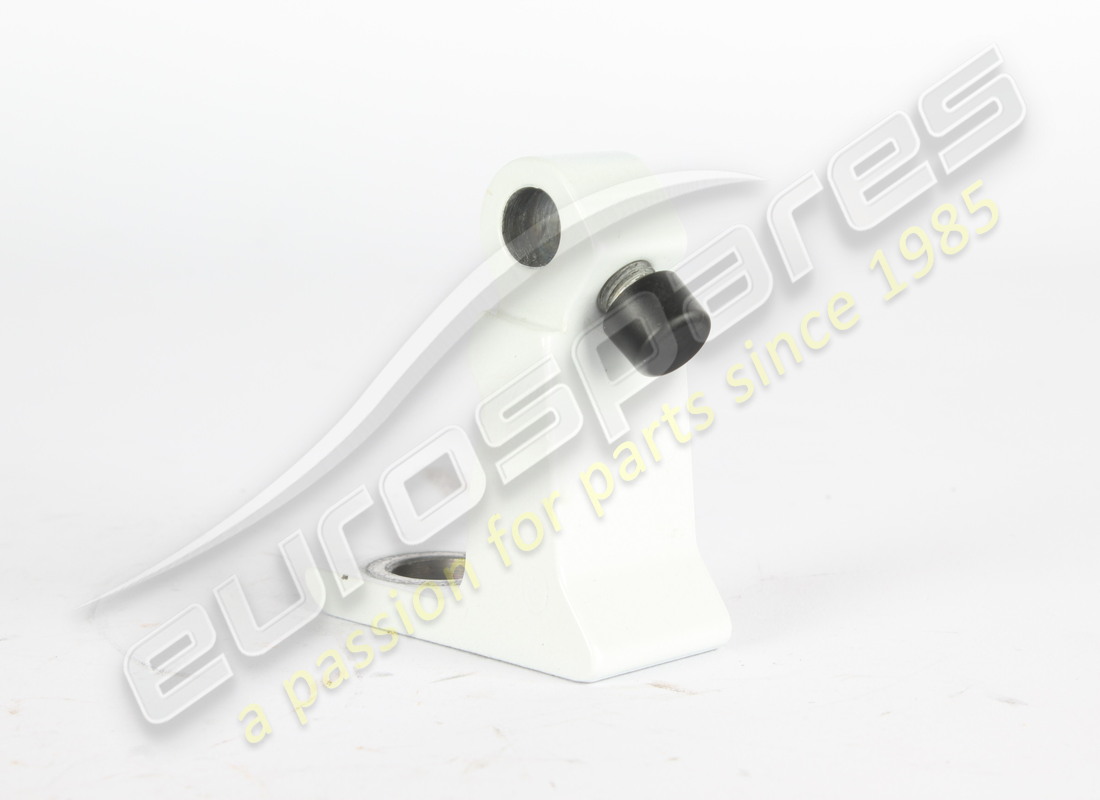

          MPN: 4G0831401A
          DOOR HINGE
          LEFT UPPER
          from £13.22
          from £13.22
          DOOR HINGE UPPER LEFT Genuine Lamborghini - New (to order)
          DOOR HINGE UPPER LEFT Genuine Lamborghini - Used In stock
          # 028
          MPN: 4G0831402A
          DOOR HINGE
          RIGHT UPPER
          from £13.22
          from £13.22
          DOOR HINGE UPPER RH Genuine Lamborghini - New (to order)
          DOOR HINGE UPPER RH Genuine Lamborghini - Used In stock
          # 029
          MPN: 4G0831401B
          DOOR HINGE
          LEFT LOWER
          from £15.43
          from £15.43
          DOOR HINGE LOWER LEFT Genuine Lamborghini - New (to order)
          DOOR HINGE LOWER LEFT Genuine Lamborghini - Used In stock
          # 029
          MPN: 4G0831402B
          DOOR HINGE
          RIGHT LOWER
          from £15.43
          from £15.43
          DOOR HINGE LOWER RIGHT Genuine Lamborghini - New (to order)
          DOOR HINGE LOWER RIGHT Genuine Lamborghini - Used In stock
          # 030
          MPN: 4T0831329B
          HINGE REINFORCEMENT
          LEFT UPPER
          from £49.03
          from £49.03
          DOOR HINGE REINFORCEMENT UPR LH Genuine Lamborghini - New (to order)
          # 030
          MPN: 4T0831330B
          HINGE REINFORCEMENT
          RIGHT UPPER
          from £49.03
          from £49.03
          DOOR HINGE REINFORCEMENT UPR RH Genuine Lamborghini - New (to order)
          # 031
          MPN: 4T0831333B
          HINGE REINFORCEMENT
          LEFT LOWER
          from £49.03
          from £49.03
          DOOR HINGE REINFORCEMENT LWR LH Genuine Lamborghini - New (to order)
          # 031
          MPN: 4T0831334B
          HINGE REINFORCEMENT
          RIGHT LOWER
          from £49.03
          from £49.03
          DOOR HINGE REINFORCEMENT LWR RH Genuine Lamborghini - New (to order)
          # 032
          MPN: 8H0831701
          HEX SOCKET HEAD COLLARED BOLT
          M10X34
          from £1.21
          from £1.21
          SCREW Genuine Lamborghini - New In stock
          # 033
          -
          TRIM FOR DOOR WINDOW FRAME
          # 033
          -
          TRIM FOR DOOR WINDOW FRAME
          # 034
          -
          HEXAGON COLLARED BOLT WITH HEXAGON SOCKET HEAD (DUO)
          # 035
          -
          ROUND HD. SCREW
          # 036
          -
          BUSH
          # 037
          MPN: 433857445C
          INSULATION STRIP
          55X1X25
          from £10.73
          from £10.73
          INTERMEDIATE LAYER55.00X25.00 Genuine Lamborghini - New (to order)
          # 038
          MPN: 8E0837485C
          CLIP
          from £0.74
          from £0.74
          DOOR WEATHER STRIP CLIP Genuine Lamborghini - New (to order)
          # 039
          -
          SEAL
          # 040
          MPN: 8T0837947
          COVER CAP
          from £0.70
          from £0.70
          COVER Genuine Lamborghini - New In stock
          # 041
          -
          WASHER
