lamborghini jalpa 3.5 (1984) bumpers and spoiler parts diagram

048 - Bumpers and Spoiler

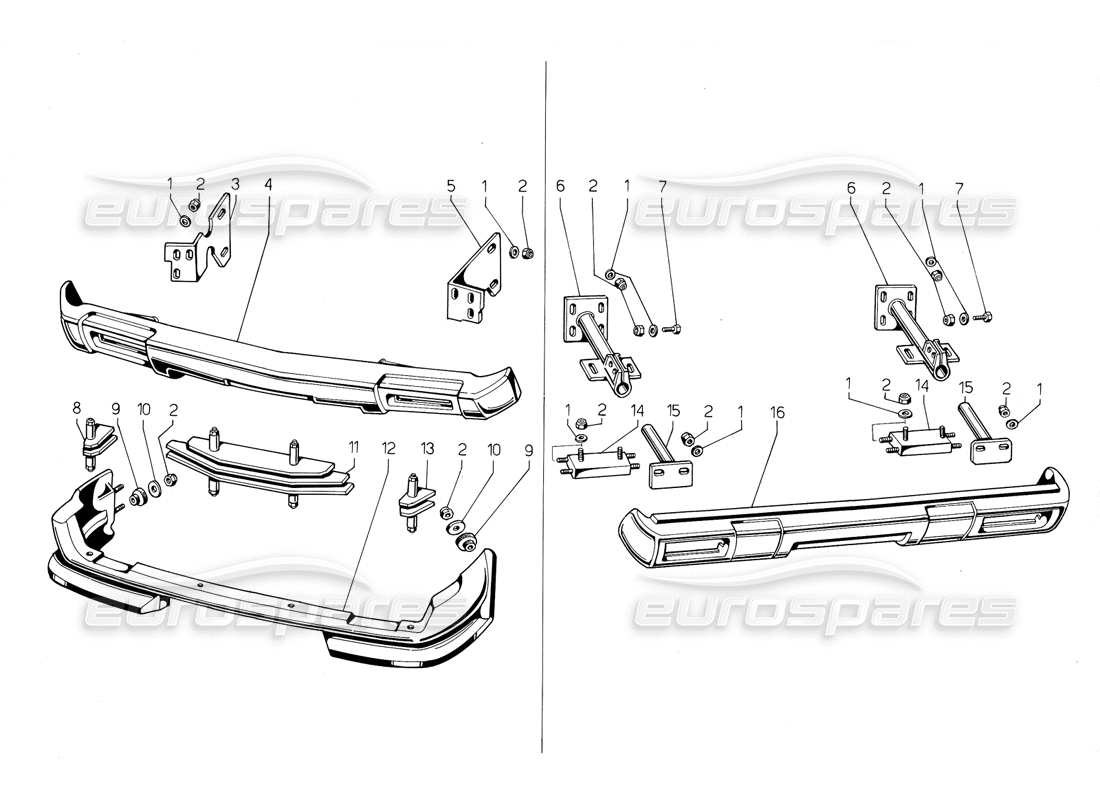

Lamborghini Jalpa 3.5 (1984) Bumpers and Spoiler Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008400801
WASHER
Rond. 8,4 UNI 1734 8G
Supersession
Supersession
# 002
MPN: 008200809
NUT
DADO B/70/208M
Supersession
Supersession
# 003
MPN: 007863006
BRAKERT
Staff, fiss. paraurti ant. destra
from £107.22
from £107.22
# 004
MPN: 007863021
FRNT BUMPER
Compl. paraurti ant.
from £1,283.99
from £1,283.99
# 005
MPN: 007863005
BRAKERT
Staff, fiss. paraurti ant. sinistra
from £107.22
from £107.22
# 006
MPN: 007863012
FSTNG PLATE
Piastra fiss. paraurti post.
from £202.77
from £202.77
# 007
MPN: 008100830
BOLT
Bull. M8x20 UNI 5739/8G
from £0.53
from £0.53
# 008
MPN: 007830002
GRILLE
Complete right side grille
from £308.69
from £308.69
# 009
MPN: 001701495
RAD. SUPPOR
Anello x supp. serb. suppl. e rad. 135680020
from £32.99
from £32.99
# 010
MPN: WHT001942
WASHER
Bond. 0.8,5x32x2,5
from £2.18
from £2.18
# 011
MPN: 007830001
GRILLE
Griglia complete later, x masch. ant.
from £929.50
from £929.50
# 012
MPN: 007863023
SPOILER
Compl. spoiler
# 013
MPN: 007830003
GRILLE
Complete left side grille
from £308.69
from £308.69
# 014
MPN: 006111509
PLATE
Piastra cavall. supp. par.
from £66.00
from £66.00
# 015
MPN: 007863007
BRAKERT
Staffetta Ds/Sn x attac. paraurti al tela
from £93.29
from £93.29
# 016
MPN: 007863022
REAR BUMPER
Compl. paraurti post.
from £1,824.04
from £1,824.04
