lamborghini lm002 (1988) power steering parts diagram

028 - POWER STEERING

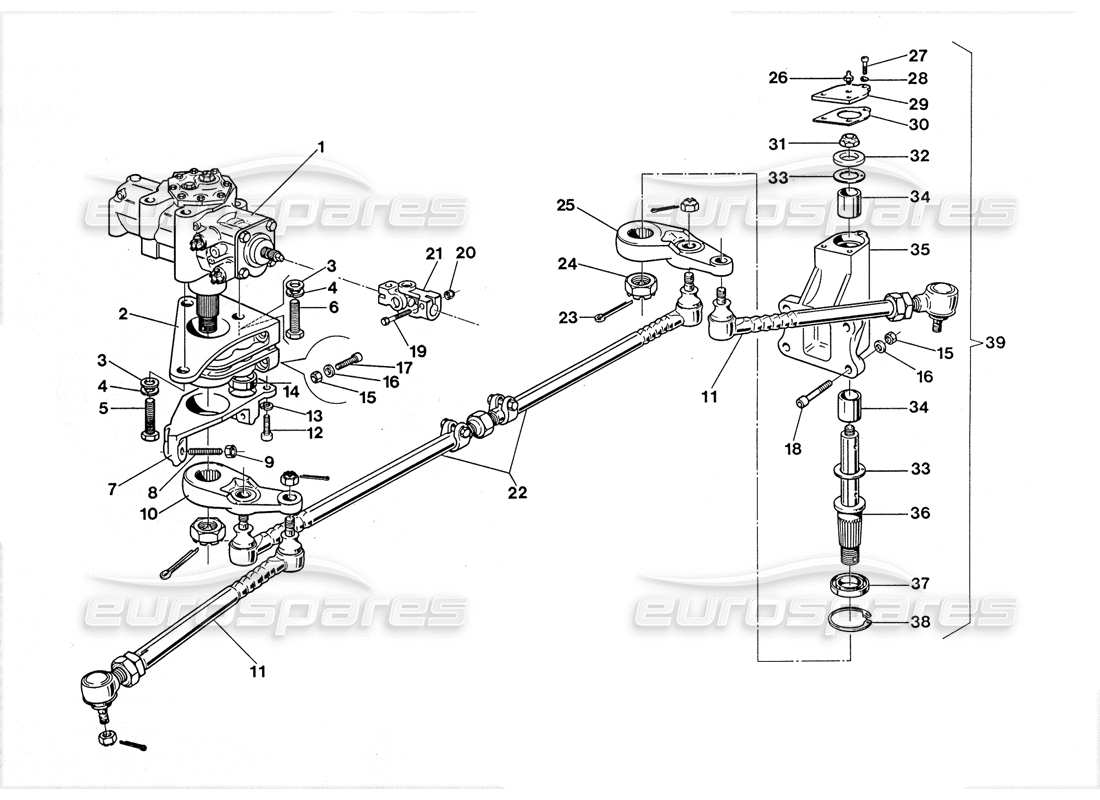

Lamborghini LM002 (1988) Power Steering Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 004022456
IDROGUIDE
IDROGUIOA
from £3,610.78
from £3,610.78
# 002
MPN: 004022374
MOUNTING
SUPPORTO IOROGUIDA
from £617.36
from £617.36
# 003
MPN: 008401611
WASHER
RONO. 17X29X3 55 UNI 16592
from £8.84
from £8.84
# 004
MPN: 008411701
LOCK WASHER
ROB. EL, 17X27X3,5
from £1.62
from £1.62
# 005
MPN: 008101631
BOLT
BULLONE
from £10.87
from £10.87
# 006
MPN: 008101630
BOLT
BULLONE
from £10.87
from £10.87
# 007
MPN: 004025269
SUPPORT
STEERING STOP BRACKET
from £118.56
from £118.56
# 008
MPN: 006701016
SCREW
VITE
# 009
MPN: 008201011
NUT
DADO M10 UNI 5589-65/8G
from £11.53
from £11.53
# 010
MPN: 004022458
LEVER
LEFT STEERING LEVER
from £257.86
from £257.86
# 011
MPN: 004022459
TIE ROD
TIRANTE STERZO COMPL . 035 . 0245 .
from £539.75
from £539.75
# 012
MPN: 008700827
SCREW
VITE FISS. INTER.
from £1.67
from £1.67
# 012
MPN: N10518402
SCREW M8X30
from £3.85
from £3.85
# 013
MPN: 008410812
WASHER
ROND.DIN 6798
from £1.06
from £1.06
# 014
MPN: 004027526
BUSH
BOCCOLA DI CENTR.X STAFFA
from £1.71
from £1.71
# 015
MPN: 008201206
NUT
DADO B70 212X1 , 2BM 8G
from £3.70
from £3.70
# 016
MPN: 008401306
WASHER
WASHER R. 1 3X24X3 8G
from £1.49
from £1.49
# 017
MPN: 008701212
SCREW
VITE
from £2.20
from £2.20
# 018
MPN: 008701209
SCREW
Allen screw
from £12.82
from £12.82
# 019
MPN: N01033520
BOLT
BULL.M8X35 UNI 5739/BG
from £1.04
from £1.04
# 020
MPN: 008200809
NUT
DADO B/70/208M
Supersession
Supersession
# 021
MPN: 004021492
JOINT
GIUNTO CARDANICO
# 022
MPN: 004022463
ROD
COMPL. BARRA ACCOPP . 035 . 0245 . 0 1
from £595.74
from £595.74
# 023
MPN: 008820601
LOCK RING
COPPIGLIA'
# 024
MPN: 008203003
NUT
DADO
# 025
MPN: 004022457
STEER LEVER
LEVA STERZO DES.
from £257.86
from £257.86
# 026
MPN: 008880601
GREASE NIPP
Ingras. hydraulic 273 A
from £0.96
from £0.96
# 027
MPN: 008700627
SCREW
VITE M6X22 UNI 5931 86
Supersession
Supersession
# 028
MPN: WHT001197
LOCK WASHER
RONDELLA DI FERMO DIN 137/B
Supersession
Supersession
# 029
MPN: 004021489
COVER
COPERCHIO X SUPP.RINVIO IDROGU
from £15.59
from £15.59
# 030
MPN: 004026124
GASKET
GUARN.X COPERCHIO SUPP.RINVIO
# 031
MPN: 008202006
NUT
NUT TO BEAT ON THE REINV. PIN
from £8.17
from £8.17
# 032
MPN: 008402013
WASHER
ROND.X FISS. PERNO RINVIO IDRO
from £20.11
from £20.11
# 033
MPN: 008403202
BEARING
CSN ASSIALI ANTIFRIZ.TRA ALB.E
from £14.35
from £14.35
# 034
MPN: 008803201
BEARING
CSN RADIALI ANTIFRIZ.TRA ALB.E
from £26.54
from £26.54
# 035
MPN: 004027717
SUPPORT
SUPP.RINVIO IDROGUIDA
from £252.06
from £252.06
# 036
MPN: 004021493
PIN
STEERING RETURN PIN
# 037
MPN: 008613505
DUST COVER
PARAPOLV.TRA ALB.E SUPP.RINVIO
from £16.80
from £16.80
# 038
MPN: 008576001
CIRCLIP
SEEGER SUL SUPP.RINVIO IDROGUI
# 039
MPN: 282600500
TRANSMISSIO
RINVIO IDROG. COMPL. LM USA I.
