lamborghini lp640 coupe (2010) door lock parts diagram

837.02.00 - DOOR LOCK

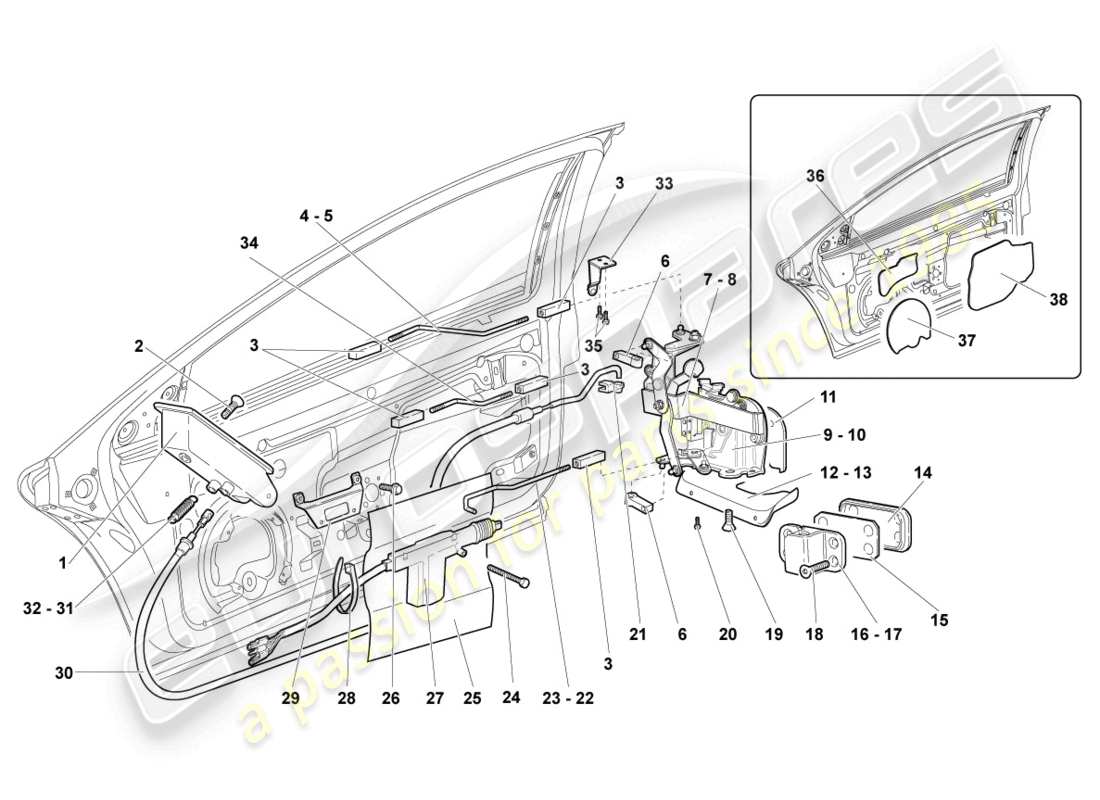

Lamborghini LP640 Coupe (2010) DOOR LOCK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 400827185
ACTUATING LEVER
LEFT A. RIGHT (EUROPE, UK spec vehicles)
from £1,154.91
from £1,154.91
OPERATING LEVER Genuine Lamborghini - New (to order)
# 002
MPN: WHT003068
COUNTERSUNK BOLT
M6X16 (EUROPE, UK spec vehicles)
from £0.94
from £0.94
This part replaces part number 008700638
SCREW Genuine Lamborghini - New (to order)
# 003
MPN: 410837261
CONNECTION ELEMENTS
(EUROPE, UK spec vehicles)
from £2.10
from £2.10
This part replaces part number 007021016
LOCK JOINT Genuine Lamborghini - New (to order)
# 004
MPN: 410837237A
FOLLOWER
LEFT LHD (EUROPE spec vehicles)
from £39.80
from £39.80
CARRIER Genuine Lamborghini - New (to order)
# 004
MPN: 410837238A
FOLLOWER
RIGHT RHD (UK spec vehicles)
from £39.80
from £39.80
CARRIER Genuine Lamborghini - New (to order)
# 006
MPN: 410837299
CONNECTOR FOR
(EUROPE, UK spec vehicles)
from £10.48
from £10.48
This part replaces part number 009421214
LH MANIFOLD HEAD Genuine Lamborghini - New (to order)
# 007
MPN: 410837019
BRACKET
LEFT RHD (UK spec vehicles)
from £516.67
from £516.67
DOOR LEVER ASSEMBLY Genuine Lamborghini - New (to order)
# 007
MPN: 410837161
BRACKET
LEFT LHD (EUROPE spec vehicles)
from £536.36
from £536.36
BRACKET, ASSEMBLY Genuine Lamborghini - New (to order)
BRACKET, ASSEMBLY Genuine Lamborghini - Used In stock
# 007
MPN: 410837162
BRACKET
RIGHT RHD (UK spec vehicles)
from £536.36
from £536.36
BRACKET, ASSEMBLY Genuine Lamborghini - New (to order)
BRACKET, ASSEMBLY Genuine Lamborghini - Used In stock
# 007
MPN: 410837162A
BRACKET
RIGHT LHD (EUROPE spec vehicles)
from £239.53
from £239.53
BRACKET, ASSEMBLY Genuine Lamborghini - New (to order)
# 009
MPN: 418837011C
DOOR LOCK
LEFT (EUROPE, UK spec vehicles)
from £1,091.57
from £1,091.57
DOOR LOCK Genuine Lamborghini - New (to order)
DOOR LOCK Genuine Lamborghini - Used In stock
# 009
MPN: 418837012C
DOOR LOCK
RIGHT (EUROPE, UK spec vehicles)
from £1,037.47
from £1,037.47
DOOR LOCK Genuine Lamborghini - New (to order)
DOOR LOCK Genuine Lamborghini - Used In stock
# 011
MPN: 600940141
SEAL
LH - RH-LEFT A. RIGHT (EUROPE, UK spec vehicles)
from £110.34
from £110.34
This part replaces part number 410837119 which we have in stock - and 1 more. Click to view details
KIT GUARNIZ.SERRAT.PORTA Genuine Lamborghini - New (to order)
# 012
MPN: 410837901
TRIM
LEFT (EUROPE, UK spec vehicles)
from £273.80
from £273.80
PLATE Genuine Lamborghini - New (to order)
# 012
MPN: 410837902
TRIM
RIGHT (EUROPE, UK spec vehicles)
from £150.59
from £150.59
PLATE Genuine Lamborghini - New (to order)
PLATE Genuine Lamborghini - Used In stock
# 014
MPN: 410837899
TRIM
(EUROPE, UK spec vehicles)
from £9.46
from £9.46
This part replaces part number 007021281
DOOR HEATER TRIM Genuine Lamborghini - New (to order)
# 015
MPN: 410837963
INTERMEDIATE LAYER
(EUROPE, UK spec vehicles)
from £10.05
from £10.05
This part replaces part number 007021249
SHIM UNDER IN.LOCK HEAT. Genuine Lamborghini - New (to order)
# 015
MPN: 410837964
INTERMEDIATE LAYER
(EUROPE, UK spec vehicles)
from £9.72
from £9.72
This part replaces part number 007021250
SHIM UNDER IN.LOCK HEAT. Genuine Lamborghini - New (to order)
# 016
MPN: 410831407A
LEFT LOCK STRIKER
(EUROPE, UK spec vehicles)
from £166.58
from £166.58
HINGE HALF LEFT Genuine Lamborghini - New (to order)
HINGE HALF LEFT Genuine Lamborghini - Used In stock
# 016
MPN: 410831408A
RIGHT LOCK STRIKER
(EUROPE, UK spec vehicles)
from £293.11
from £293.11
HINGE HALF RIGHT Genuine Lamborghini - New (to order)
HINGE HALF RIGHT Genuine Lamborghini - Used In stock
# 018
MPN: N10711501
COUNTERSUNK OVAL BOLT WITH HEXAGON SOCKET HEAD
M6X20 (EUROPE, UK spec vehicles)
from £0.56
from £0.56
HEXALOBULAR SOCKET FLAT HEAD SCREW Genuine Lamborghini - New In stock
COUNTERSUNK OVAL BOLT WITH Genuine Porsche Part - New (to order)
# 019
MPN: WHT003068
COUNTERSUNK BOLT
M6X16 (EUROPE, UK spec vehicles)
from £0.92
from £0.92
This part replaces part number 008700638
SCREW Genuine Lamborghini - New (to order)
# 020
MPN: WHT003065
COUNTERSUNK BOLT
2,9X16 (EUROPE, UK spec vehicles)
from £0.92
from £0.92
PARKER SCREW 2.9 X 16 Genuine Lamborghini - New In stock
# 021
MPN: 410837230
SECURING ELEMENT
(EUROPE, UK spec vehicles)
from £0.75
from £0.75
This part replaces part number 009421251
LOCK WIRE SPRING Genuine Lamborghini - New In stock
# 022
MPN: 410837653
FOLLOWER
LEFT (EUROPE, UK spec vehicles)
from £36.95
from £36.95
ROD Genuine Lamborghini - New (to order)
# 022
MPN: 410837654
FOLLOWER
RIGHT (EUROPE, UK spec vehicles)
from £36.95
from £36.95
ROD Genuine Lamborghini - New (to order)
# 024
MPN: 008700473
HEXAGON HEAD PANEL SCREW
ST4,2X19 (EUROPE, UK spec vehicles)
from £0.53
from £0.53
SCREW Genuine Lamborghini - New (to order)
# 024
MPN: WHT003575
HEXAGON HEAD PANEL SCREW
ST4,2X19 (EUROPE, UK spec vehicles)
from £3.02
from £3.02
HEX.HEAD TAPPING Genuine Lamborghini - New (to order)
# 025
MPN: 410837909
PROTECTIVE FILM
(EUROPE, UK spec vehicles)
from £329.34
from £329.34
PROTECTION Genuine Lamborghini - New (to order)
# 026
MPN: N90319404
HEX COLLARED BOLT
M6X12 (EUROPE, UK spec vehicles)
from £1.21
from £1.21
This part replaces part number 008700674
HEXAGON FLANGE Genuine Lamborghini - New In stock
# 027
MPN: 410837122
OPERATING ROD
(EUROPE, UK spec vehicles)
from £633.05
from £633.05
ACTUATOR Genuine Lamborghini - New In stock
# 028
MPN: 893971850C
CABLE TIES
4,6X200 (EUROPE, UK spec vehicles)
from £0.53
from £0.53
This part replaces part number 008830305
CABLE TIE 205.00X4.60 Genuine Lamborghini - New In stock
# 029
MPN: 410837467
BRACKET
(EUROPE, UK spec vehicles)
from £35.52
from £35.52
BRACKET Genuine Lamborghini - New (to order)
# 030
MPN: 410837018
BOWDEN CABLE
(EUROPE, UK spec vehicles)
from £77.92
from £77.92
OPENING DOOR CABLE ASSEMBLY Genuine Lamborghini - New (to order)
# 031
MPN: 410837723
SPRING
LEFT (EUROPE, UK spec vehicles)
from £37.70
from £37.70
DOOR HANDLE SPRING Genuine Lamborghini - New (to order)
# 031
MPN: 410837724
SPRING
RIGHT (EUROPE, UK spec vehicles)
from £37.70
from £37.70
DOOR HANDLE SPRING Genuine Lamborghini - New (to order)
# 033
MPN: 410837226A
ACTUATING LEVER
(EUROPE, UK spec vehicles)
from £420.07
from £420.07
OPERATING HANDLE Genuine Lamborghini - New (to order)
# 034
MPN: 410837511
FOLLOWER
(EUROPE, UK spec vehicles)
from £36.95
from £36.95
TIE ROD Genuine Lamborghini - New (to order)
# 035
MPN: WHT003370
THREADED PIN
(EUROPE, UK spec vehicles)
from £0.53
from £0.53
SET SCREW Genuine Lamborghini - New (to order)
# 036
MPN: 410867253
FOIL
(EUROPE, UK spec vehicles)
from £6.02
from £6.02
COVER Genuine Lamborghini - New (to order)
# 037
MPN: 410867254
FOIL
(EUROPE, UK spec vehicles)
from £9.22
from £9.22
COVER Genuine Lamborghini - New (to order)
# 038
MPN: 410867253A
FOIL
LEFT (EUROPE, UK spec vehicles)
from £24.87
from £24.87
FILM Genuine Lamborghini - New (to order)
# 038
MPN: 410867254A
FOIL
RIGHT (EUROPE, UK spec vehicles)
from £24.87
from £24.87
FILM Genuine Lamborghini - New (to order)
