lamborghini lp640 roadster (2007) output shaft parts diagram

311.03.00 - OUTPUT SHAFT

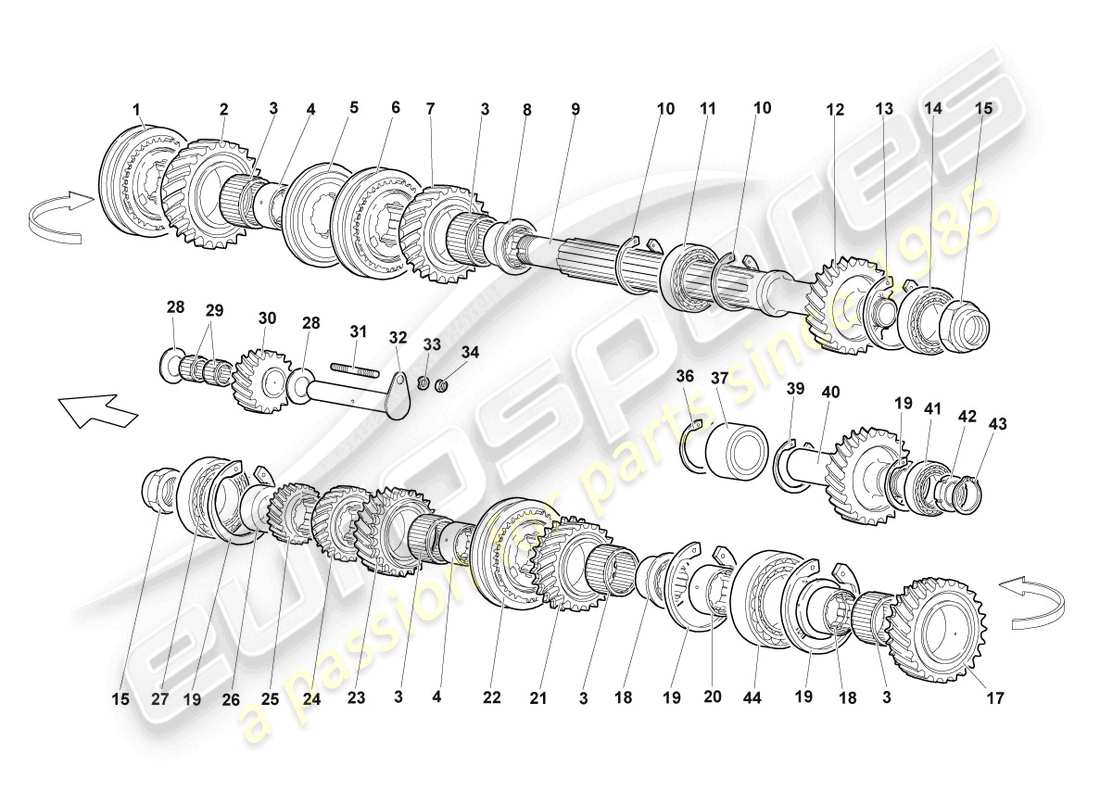

Lamborghini LP640 Roadster (2007) OUTPUT SHAFT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Price
                            # 001
                            -
                            SYNCHRONIZING HUB WITH LOCKING COLLAR
                            # 001
                            MPN: 086311244B
                            SYNCHRONIZING HUB WITH LOCKING COLLAR
                            1./2.gear
                            from £1,089.45
                            from £1,089.45
                            # 002
                            -
                            CHANGE GEAR
                            # 002
                            MPN: 086311250F
                            CHANGE GEAR
                            TO ORDER TOGETHER WITH PART - SEE ILLUSTRATION AND REF.:-1.GEAR 086.311.101.D 311-020,9
                            from £1,296.97
                            from £1,296.97
                            # 003
                            -
                            NEEDLE BEARING -
                            # 003
                            MPN: 086311228A
                            NEEDLE BEARING -
                            from £64.59
                            from £64.59
                            # 004
                            -
                            BEARING RING
                            # 004
                            MPN: 086301374A
                            BEARING RING
                            from £198.44
                            from £198.44
                            # 005
                            -
                            COMPENSATION WASHER
                            # 005
                            MPN: 086311279A
                            COMPENSATION WASHER
                            from £215.30
                            from £215.30
                            # 006
                            -
                            SYNCHRONIZING HUB WITH LOCKING COLLAR
                            # 006
                            MPN: 086311762C
                            SYNCHRONIZING HUB WITH LOCKING COLLAR
                            REVERSE GEAR
                            from £544.72
                            from £544.72
                            # 007
                            -
                            CHANGE GEAR
                            # 007
                            MPN: 086311532F
                            CHANGE GEAR
                            REVERSE GEAR
                            from £407.25
                            from £407.25
                            # 008
                            -
                            BEARING RING
                            # 008
                            MPN: 086311423B
                            BEARING RING
                            from £290.52
                            from £290.52
                            # 009
                            -
                            OUTPUT SHAFT
                            # 009
                            MPN: 086311195F
                            OUTPUT SHAFT
                            from £912.20
                            from £912.20
                            # 010
                            MPN: WHT003585
                            SECURING RING
                            from £28.15
                            from £28.15
                            # 011
                            MPN: 086301609
                            GROOVED BALL BEARING
                            45X85X18
                            from £109.82
                            from £109.82
                            # 012
                            -
                            GEAR
                            # 012
                            MPN: 086311348B
                            GEAR
                            from £2,308.60
                            from £2,308.60
                            # 013
                            MPN: WHT003573
                            SECURING RING
                            72X2
                            from £1.79
                            from £1.79
                            # 014
                            MPN: 086301897
                            GROOVED BALL BEARING
                            35X72X17
                            from £327.70
                            from £327.70
                            # 015
                            MPN: 086301618
                            HEXAGON NUT, SELF-LOCKING
                            M35X1,5
                            from £173.36
                            from £173.36
                            # 017
                            -
                            CHANGE GEAR
                            # 017
                            MPN: 086311270E
                            CHANGE GEAR
                            2.gear
                            from £1,128.37
                            from £1,128.37
                            # 018
                            -
                            BEARING RING
                            # 018
                            MPN: 086311533A
                            BEARING RING
                            2ND/3RD gear
                            from £232.59
                            from £232.59
                            # 019
                            MPN: WHT003584
                            SECURING RING
                            80X2,5
                            from £19.34
                            from £19.34
                            # 020
                            -
                            BEARING RING
                            # 020
                            MPN: 086311187B
                            BEARING RING
                            from £211.84
                            from £211.84
                            # 021
                            -
                            CHANGE GEAR
                            # 021
                            MPN: 086311129B
                            CHANGE GEAR
                            3.gear
                            from £1,054.87
                            from £1,054.87
                            # 022
                            -
                            SYNCHRONIZING HUB WITH LOCKING COLLAR
                            # 022
                            MPN: 086311309B
                            SYNCHRONIZING HUB WITH LOCKING COLLAR
                            4TH/5TH gear
                            from £873.29
                            from £873.29
                            # 023
                            -
                            CHANGE GEAR
                            # 023
                            MPN: 086311145C
                            CHANGE GEAR
                            4-SPEED
                            from £1,054.87
                            from £1,054.87
                            # 024
                            MPN: 086311153
                            CHANGE GEAR
                            5-SPEED
                            from £2,295.63
                            from £2,295.63
                            # 025
                            MPN: 086311165
                            CHANGE GEAR
                            6TH GEAR
                            from £2,295.63
                            from £2,295.63
                            # 026
                            -
                            SPACER SLEEVE
                            # 026
                            MPN: 086311876C
                            SPACER SLEEVE
                            6TH GEAR
                            from £115.87
                            from £115.87
                            # 027
                            MPN: 086301845
                            GROOVED BALL BEARING
                            35X80X21
                            from £45.58
                            from £45.58
                            # 028
                            MPN: 086311388
                            COMPENSATION WASHER
                            from £22.53
                            from £22.53
                            # 029
                            -
                            NEEDLE BEARING -
                            # 029
                            MPN: 086311770A
                            NEEDLE BEARING -
                            from £27.41
                            from £27.41
                            # 030
                            -
                            GEAR
                            # 030
                            MPN: 086311531C
                            GEAR
                            REVERSE GEAR
                            # 031
                            MPN: WHT003165
                            THREADED PIN
                            from £0.98
                            from £0.98
                            # 032
                            MPN: 086311509
                            REVERSE GEAR SHAFT
                            from £220.49
                            from £220.49
                            # 033
                            MPN: WHT001197A
                            WASHER
                            12X6,4X0,5
                            from £0.54
                            from £0.54
                            This part replaces part number WHT001197
                            # 034
                            MPN: WHT002953
                            CLAMPING NUT
                            M6
                            from £2.37
                            from £2.37
                            # 036
                            MPN: WHT003587
                            SECURING RING
                            40X1,75
                            from £8.26
                            from £8.26
                            # 037
                            MPN: 086311440
                            ROLLER BEARING
                            40X62X19
                            from £108.09
                            from £108.09
                            # 039
                            MPN: WHT003582
                            SECURING RING
                            62X2
                            from £12.89
                            from £12.89
                            # 040
                            -
                            REVERSE GEAR
                            # 040
                            MPN: 086311834A
                            REVERSE GEAR
                            from £702.96
                            from £702.96
                            # 041
                            MPN: 086311439
                            BALL BEARING
                            40X80X18
                            from £39.87
                            from £39.87
                            # 042
                            MPN: 086311667
                            CASTELLATED NUT
                            M40X1,5
                            from £83.44
                            from £83.44
                            # 043
                            MPN: WHT003580
                            SECURING RING
                            52X2
                            from £9.18
                            from £9.18
                            # 044
                            MPN: 086301133
                            GROOVED BALL BEARING
                            40X80X18
                            from £72.37
                            from £72.37
                            This part replaces part number 008524010
