lamborghini murcielago lp670 head timing system parts diagram

109.03.00 - head timing system

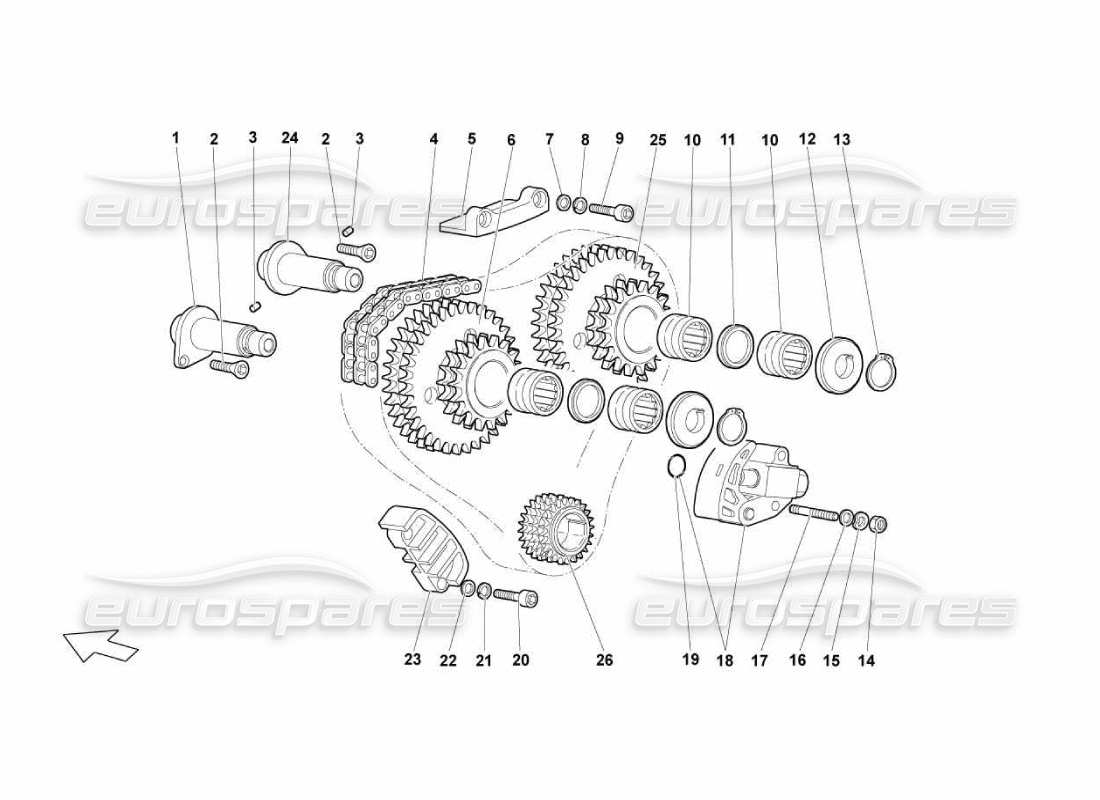

Lamborghini Murcielago LP670 Head Timing System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 07M109225
                                                      JOURNAL
                                                      from £796.34
                                                      from £796.34
                                                      # 002
                                                      MPN: WHT003068
                                                      SCREW M6X16
                                                      from £0.94
                                                      from £0.94
                                                      This part replaces part number 008700638
                                                      # 003
                                                      MPN: WHT003082
                                                      DOWEL
                                                      from £0.53
                                                      from £0.53
                                                      # 004
                                                      MPN: 07M109229
                                                      LOWER TIMING CHAIN
                                                      from £84.91
                                                      from £84.91
                                                      This part replaces part number 0012001137
                                                      # 005
                                                      MPN: 07M109201
                                                      GUIDE
                                                      from £43.84
                                                      from £43.84
                                                      # 006
                                                      MPN: 07M109569
                                                      GEAR
                                                      from £1,033.25
                                                      from £1,033.25
                                                      # 007
                                                      MPN: WHT003543
                                                      WASHER
                                                      from £7.31
                                                      from £7.31
                                                      # 008
                                                      MPN: WHT001397
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 008410820
                                                      # 009
                                                      MPN: WHT003072
                                                      SCREW M8X20
                                                      from £3.63
                                                      from £3.63
                                                      # 010
                                                      MPN: 410109403
                                                      BEARING
                                                      from £237.78
                                                      from £237.78
                                                      # 011
                                                      MPN: 07M109135
                                                      SPACER
                                                      from £131.00
                                                      from £131.00
                                                      # 012
                                                      MPN: 07M109163
                                                      WASHER
                                                      from £49.64
                                                      from £49.64
                                                      # 013
                                                      MPN: WHT002646
                                                      RETAINING RING
                                                      from £0.73
                                                      from £0.73
                                                      # 014
                                                      MPN: N1100637
                                                      NUT M6
                                                      # 015
                                                      MPN: WHT001197A
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number WHT001197
                                                      # 017
                                                      MPN: WHT003026
                                                      STUD BOLT M6X40
                                                      from £9.18
                                                      from £9.18
                                                      # 018
                                                      MPN: 07M109077A
                                                      CHAIN TIGHTENER WITH RING
                                                      from £494.58
                                                      from £494.58
                                                      # 019
                                                      MPN: WHT003060
                                                      SEAL RING
                                                      from £1.51
                                                      from £1.51
                                                      # 020
                                                      MPN: WHT003071
                                                      SCREW M8X35
                                                      from £4.15
                                                      from £4.15
                                                      # 021
                                                      MPN: WHT001397
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 008410820
                                                      # 022
                                                      MPN: WHT002962
                                                      WASHER
                                                      from £0.53
                                                      from £0.53
                                                      This part replaces part number 008400816
                                                      # 023
                                                      MPN: 07M109203
                                                      GUIDE
                                                      from £1,232.12
                                                      from £1,232.12
                                                      # 024
                                                      MPN: 07M109225
                                                      JOURNAL
                                                      from £796.34
                                                      from £796.34
                                                      # 025
                                                      MPN: 07M109569
                                                      GEAR
                                                      from £1,033.25
                                                      from £1,033.25
                                                      # 026
                                                      -
                                                      GEAR (SEE TABLE - 11)
