825.09.00 - Frame Elements

Lamborghini Murcielago LP670 Frame Elements Parts Diagram

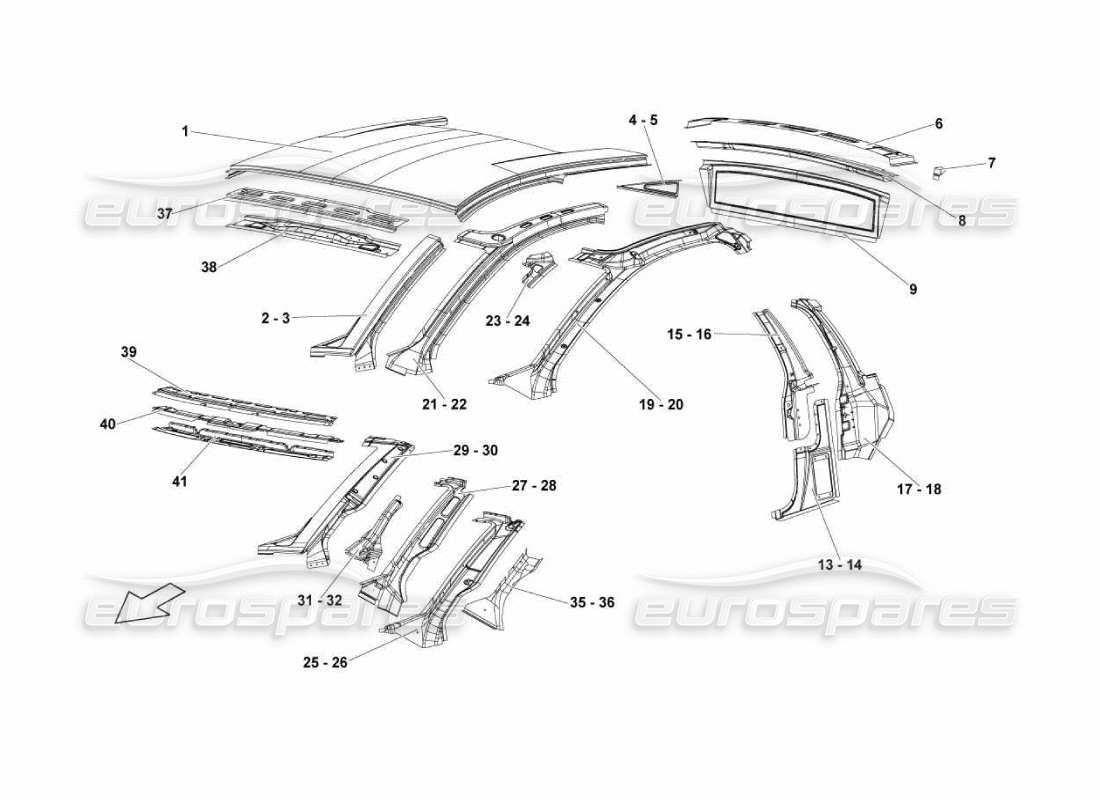

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price
                                                                          # 001
                                                                          MPN: 418817299
                                                                          ROOF
                                                                          from £8,559.96
                                                                          from £8,559.96
                                                                          # 002
                                                                          MPN: 418809201
                                                                          LH OUTER PILLAR FRONT
                                                                          from £593.15
                                                                          from £593.15
                                                                          # 003
                                                                          MPN: 418809202
                                                                          RH OUTER PILLAR FRONT
                                                                          from £593.15
                                                                          from £593.15
                                                                          # 004
                                                                          MPN: 418813891
                                                                          LH ANGLE IRON UPPER
                                                                          from £93.38
                                                                          from £93.38
                                                                          # 005
                                                                          MPN: 418813892
                                                                          RH ANGLE IRON UPPER
                                                                          from £93.38
                                                                          from £93.38
                                                                          # 006
                                                                          MPN: 418845502
                                                                          REAR WINDOW CROSSMEMBER
                                                                          from £169.91
                                                                          from £169.91
                                                                          # 007
                                                                          MPN: 418817369
                                                                          ROOF EXTENSION PANEL BRACKET
                                                                          from £59.32
                                                                          from £59.32
                                                                          # 008
                                                                          MPN: 418845501
                                                                          REAR WINDOW CROSSMEMBER INNER
                                                                          from £406.38
                                                                          from £406.38
                                                                          # 009
                                                                          MPN: 418817201
                                                                          REAR WINDOW SURROUND
                                                                          from £474.70
                                                                          from £474.70
                                                                          # 013
                                                                          MPN: 410802599
                                                                          LH - SHEET B INNER LOWER
                                                                          from £546.45
                                                                          from £546.45
                                                                          # 014
                                                                          MPN: 410802600
                                                                          RH - SHEET B INNER LOWER
                                                                          from £546.45
                                                                          from £546.45
                                                                          # 015
                                                                          MPN: 418867285
                                                                          LH - B PILLAR INNER UPPER
                                                                          from £624.28
                                                                          from £624.28
                                                                          # 016
                                                                          MPN: 418867286
                                                                          RH - B PILLAR INNER UPPER
                                                                          from £624.28
                                                                          from £624.28
                                                                          # 017
                                                                          MPN: 418809607
                                                                          LH B PILLAR REINFORCEMENT
                                                                          from £546.45
                                                                          from £546.45
                                                                          # 018
                                                                          MPN: 418809608
                                                                          RH B PILLAR REINFORCEMENT
                                                                          from £519.66
                                                                          from £519.66
                                                                          # 019
                                                                          MPN: 418853171
                                                                          LH A PILLAR INNER UPPER
                                                                          from £1,971.39
                                                                          from £1,971.39
                                                                          # 020
                                                                          MPN: 418853172
                                                                          RH A PILLAR INNER UPPER
                                                                          from £1,971.39
                                                                          from £1,971.39
                                                                          # 021
                                                                          MPN: 418809193
                                                                          LH A PILLAR RENFORCEMENT
                                                                          from £858.60
                                                                          from £858.60
                                                                          # 022
                                                                          MPN: 418809194
                                                                          RH A PILLAR RENFORCEMENT
                                                                          from £858.60
                                                                          from £858.60
                                                                          # 023
                                                                          MPN: 418810207
                                                                          LH REINFORCEMENT ON A PILLAR INNER UPPER
                                                                          from £142.24
                                                                          from £142.24
                                                                          # 024
                                                                          MPN: 418810208
                                                                          RH REINFORCEMENT ON A PILLAR INNER UPPER
                                                                          from £142.24
                                                                          from £142.24
                                                                          # 025
                                                                          -
                                                                          LH - A PILLAR INNER UPPER (VALID FOR A DIFFERENT MODEL)
                                                                          # 026
                                                                          -
                                                                          RH - A PILLAR INNER UPPER (VALID FOR A DIFFERENT MODEL)
                                                                          # 027
                                                                          -
                                                                          LH A PILLAR REINFORCEMENT (VALID FOR A DIFFERENT MODEL)
                                                                          # 028
                                                                          -
                                                                          RH A PILLAR REINFORCEMENT (VALID FOR A DIFFERENT MODEL)
                                                                          # 029
                                                                          -
                                                                          LH OUTER PILLAR FRONT (VALID FOR A DIFFERENT MODEL)
                                                                          # 030
                                                                          -
                                                                          RH OUTER PILLAR FRONT (VALID FOR A DIFFERENT MODEL)
                                                                          # 031
                                                                          -
                                                                          LH - A PILLAR LOWER REINFORCEMENT (VALID FOR A DIFFERENT MODEL)
                                                                          # 032
                                                                          -
                                                                          RH - A PILLAR LOWER REINFORCEMENT (VALID FOR A DIFFERENT MODEL)
                                                                          # 035
                                                                          -
                                                                          LH - A PILLAR INNER REINFORCEMENT (VALID FOR A DIFFERENT MODEL)
                                                                          # 036
                                                                          -
                                                                          RH - A PILLAR INNER REINFORCEMENT (VALID FOR A DIFFERENT MODEL)
                                                                          # 037
                                                                          MPN: 418805573
                                                                          WINDSCREEN CROSSMEMBER
                                                                          from £1,258.05
                                                                          from £1,258.05
                                                                          # 038
                                                                          MPN: 418845425
                                                                          WINDSCREEN CROSSMEMBER INNER
                                                                          from £390.83
                                                                          from £390.83
                                                                          # 039
                                                                          -
                                                                          WINDSCREEN CROSSMEMBER (VALID FOR A DIFFERENT MODEL)
                                                                          # 040
                                                                          -
                                                                          WINDSCREEN CROSSMEMBER REINFORCMENT (VALID FOR A DIFFERENT MODEL)
                                                                          # 041
                                                                          -
                                                                          WINDSCREEN CROSSMEMBER INNER (VALID FOR A DIFFERENT MODEL)
                                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
