lamborghini murcielago lp670 lights parts diagram

941.01.00 - Lights

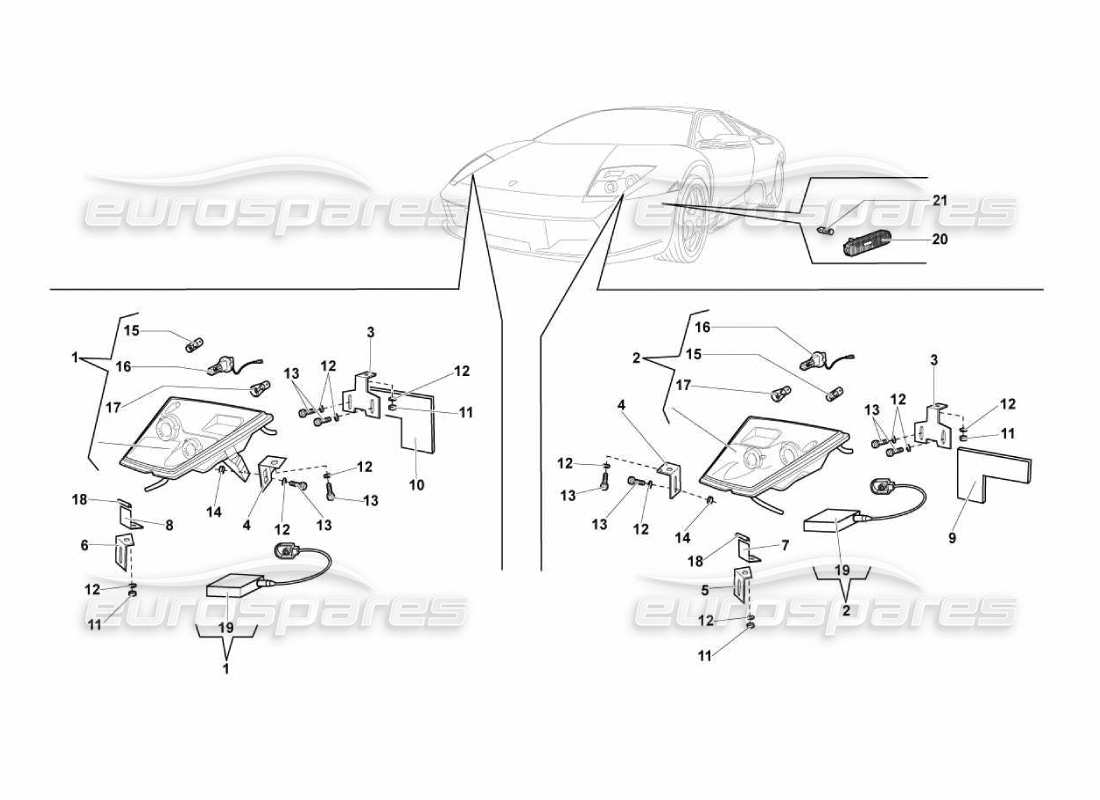

Lamborghini Murcielago LP670 Lights Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 414941032A
                                      RH FRONT HEADLIGHT ASSEMBLY
                                      (right hand drive)
                                      Supersession
                                      Supersession
                                      # 002
                                      MPN: 414941031A
                                      LH FRONT HEADLIGHT ASSEMBLY
                                      (right hand drive)
                                      Supersession
                                      Supersession
                                      # 003
                                      MPN: 410941355
                                      BRACKET
                                      from £53.87
                                      from £53.87
                                      # 004
                                      MPN: 410941155
                                      BRACKET
                                      from £69.44
                                      from £69.44
                                      This part replaces part number 0041013033
                                      # 005
                                      MPN: 410941057
                                      LH BRACKET
                                      from £37.53
                                      from £37.53
                                      This part replaces part number 0041013031
                                      # 006
                                      MPN: 410941058
                                      RH BRACKET
                                      from £37.53
                                      from £37.53
                                      This part replaces part number 0041013032
                                      # 007
                                      MPN: 410941451
                                      LH BRACKET
                                      from £30.44
                                      from £30.44
                                      This part replaces part number 0041013037
                                      # 008
                                      MPN: 410941452
                                      RH BRACKET
                                      from £19.50
                                      from £19.50
                                      This part replaces part number 0041013038
                                      # 009
                                      MPN: 410941981
                                      LH PROTECTION
                                      from £23.83
                                      from £23.83
                                      This part replaces part number 0063013747
                                      # 010
                                      MPN: 410941982
                                      RH PROTECTION
                                      from £9.86
                                      from £9.86
                                      This part replaces part number 0063013746
                                      # 011
                                      MPN: WHT002953
                                      NUT M6
                                      from £2.25
                                      from £2.25
                                      # 012
                                      MPN: WHT002961
                                      WASHER 6.5X18X1.5
                                      from £0.50
                                      from £0.50
                                      This part replaces part number 008400607
                                      # 013
                                      MPN: N90319404
                                      SCREW M6
                                      from £1.21
                                      from £1.21
                                      This part replaces part number 008700674
                                      # 014
                                      MPN: N1508213
                                      NUT 6X1X10
                                      Supersession
                                      Supersession
                                      # 015
                                      MPN: N177539
                                      LAMP 12V/5W
                                      # 016
                                      MPN: N10445703
                                      LAMP 12V/35W P32D-2
                                      from £108.62
                                      from £108.62
                                      # 017
                                      MPN: N10445601
                                      LAMP 12V/21W BAY9S
                                      from £16.22
                                      from £16.22
                                      # 018
                                      MPN: 410941119
                                      GASKET
                                      from £15.14
                                      from £15.14
                                      This part replaces part number 0041013039
                                      # 020
                                      -
                                      FRONT SIDE MARKER (VALID FOR A MARKET USA/CANADA)
                                      # 021
                                      -
                                      LAMP (VALID FOR A MARKET USA/CANADA)
