13.02.00 - VACUUM SYSTEM

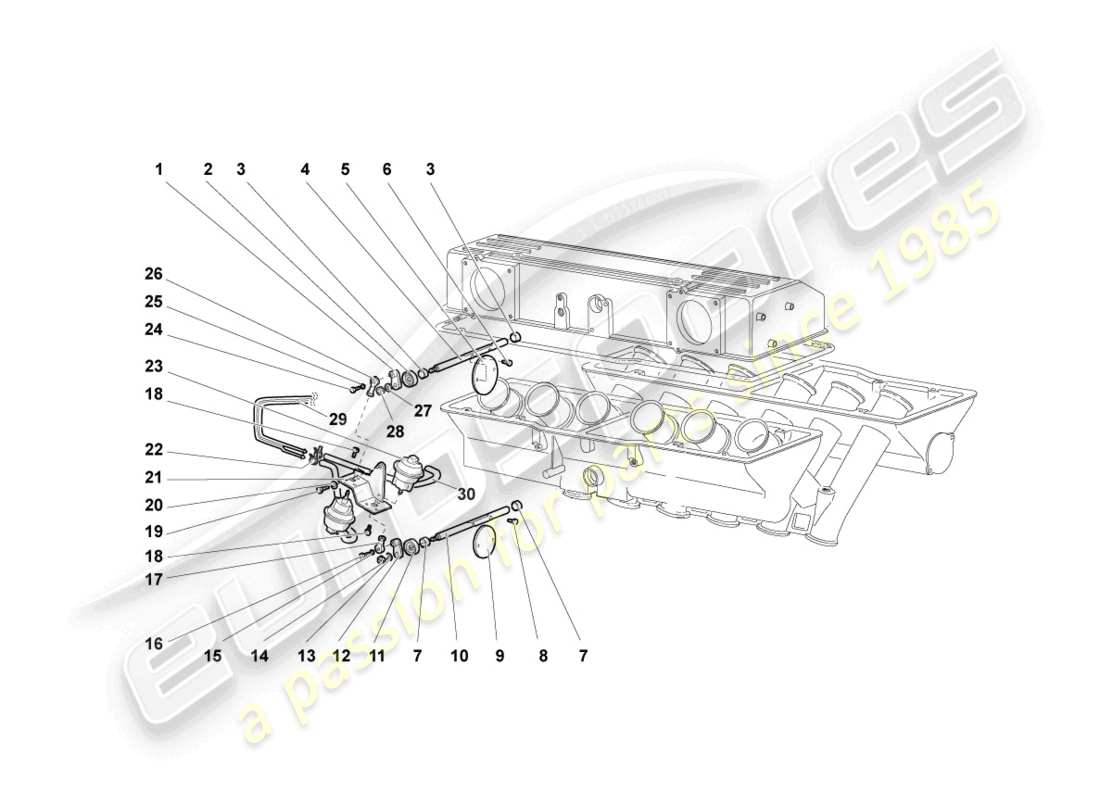

Lamborghini Murcielago Roadster (2006) VACUUM SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 001
                        MPN: 07M129350
                        THROTTLE LEVER
                        from £93.38
                        from £93.38
                        Throttle control lever Genuine Lamborghini - New (to order)
                        # 002
                        MPN: WHT003087
                        SEAL RING
                        8X22X7
                        from £13.28
                        from £13.28
                        SEALING RING Genuine Lamborghini - New (to order)
                        # 003
                        MPN: WHT003073
                        BUSH
                        8X12X7,6
                        from £19.77
                        from £19.77
                        BUSHING Genuine Lamborghini - New (to order)
                        # 005
                        MPN: 07M133931A
                        TUMBLE FLAP FOR VARIABLE INTAKE MANIFOLD
                        from £134.46
                        from £134.46
                        INTAKE-MANIFOLD Genuine Lamborghini - New (to order)
                        # 006
                        MPN: 008700435
                        ROUND HD. SCREW
                        M4X7
                        from £0.53
                        from £0.53
                        SCREW M4X.07X7.5 UNI6107 Z Genuine Lamborghini - New (to order)
                        # 007
                        MPN: WHT003073
                        BUSH
                        8X12X7,6
                        from £19.77
                        from £19.77
                        BUSHING Genuine Lamborghini - New (to order)
                        # 008
                        MPN: 008700435
                        ROUND HD. SCREW
                        M4X7
                        from £0.53
                        from £0.53
                        SCREW M4X.07X7.5 UNI6107 Z Genuine Lamborghini - New (to order)
                        # 009
                        MPN: 07M133931
                        TUMBLE FLAP FOR VARIABLE INTAKE MANIFOLD
                        from £136.61
                        from £136.61
                        INTAKE-MANIFOLD Genuine Lamborghini - New (to order)
                        # 011
                        MPN: WHT003087
                        SEAL RING
                        8X22X7
                        from £13.28
                        from £13.28
                        SEALING RING Genuine Lamborghini - New (to order)
                        # 012
                        MPN: 07M129350A
                        THROTTLE LEVER
                        from £80.76
                        from £80.76
                        LEVER Genuine Lamborghini - New (to order)
                        # 013
                        MPN: WHT001514
                        WASHER
                        8,4X15
                        from £15.09
                        from £15.09
                        This part replaces part number 008410805
                        SPRING WASHER Genuine Lamborghini - New In stock
                        # 014
                        MPN: 008200815
                        NUT
                        M8
                        from £0.53
                        from £0.53
                        M8X1X5 UNI5589/8G/ZD NUT Genuine Lamborghini - New (to order)
                        # 015
                        MPN: WHT003051
                        WASHER
                        from £0.53
                        from £0.53
                        WASHER D.3.2 UNI 1751/F Genuine Lamborghini - New In stock
                        # 016
                        MPN: WHT003020
                        HEXAGON BOLT
                        M3X12
                        from £16.61
                        from £16.61
                        HEXAGON HEAD BOLT Genuine Lamborghini - New (to order)
                        # 017
                        MPN: 07M129885
                        BALL HEAD
                        from £77.30
                        from £77.30
                        BALL JOINT Genuine Lamborghini - New (to order)
                        # 018
                        MPN: N91049601
                        OVAL HEAD PANEL SCREW (COMBI)
                        4,2X15
                        from £0.50
                        from £0.50
                        This part replaces part number 008700455
                        SCREW Genuine Lamborghini - New In stock
                        # 019
                        MPN: N90612002
                        SOCKET HEAD BOLT
                        M6X14
                        from £0.52
                        from £0.52
                        SOCKET HEAD CAP Genuine Lamborghini - New In stock
                        # 020
                        MPN: N01152427
                        WASHER
                        6,4X12,5X1,6
                        from £0.47
                        from £0.47
                        This part replaces part number 008400606
                        WASHER 6.4X12.5X1.6 Genuine Lamborghini - New In stock
                        Washer - R 6,6 (N 01152427) Genuine Porsche Part - New In stock
                        # 021
                        MPN: 07M907332
                        BRACKET
                        from £72.02
                        from £72.02
                        ACTUATORS BRACKET Genuine Lamborghini - New (to order)
                        # 022
                        MPN: 400127217
                        CLAMP
                        from £0.53
                        from £0.53
                        This part replaces part number 008830128
                        SECURING CLIP Genuine Lamborghini - New In stock
                        # 023
                        MPN: 07M907327
                        THROTTLE CONTROL ELEMENT
                        from £196.71
                        from £196.71
                        ACTUATOR Genuine Lamborghini - New In stock
                        # 024
                        MPN: WHT003020
                        HEXAGON BOLT
                        M3X12
                        from £16.61
                        from £16.61
                        HEXAGON HEAD BOLT Genuine Lamborghini - New (to order)
                        # 025
                        MPN: 008400301
                        WASHER
                        3,2X6
                        from £0.53
                        from £0.53
                        FLAT WASHER 3.2X6UNI6592-6 Genuine Lamborghini - New (to order)
                        # 026
                        MPN: 07M129885
                        BALL HEAD
                        from £77.30
                        from £77.30
                        BALL JOINT Genuine Lamborghini - New (to order)
                        # 027
                        MPN: WHT001514
                        WASHER
                        8,4X15
                        from £15.09
                        from £15.09
                        This part replaces part number 008410805
                        SPRING WASHER Genuine Lamborghini - New In stock
                        # 028
                        MPN: 008200815
                        NUT
                        M8
                        from £0.53
                        from £0.53
                        M8X1X5 UNI5589/8G/ZD NUT Genuine Lamborghini - New (to order)
                        # 029
                        MPN: 07M133085
                        VACUUM PIPE
                        from £137.48
                        from £137.48
                        PIPE Genuine Lamborghini - New (to order)
                        # 030
                        MPN: 07M133605
                        VACUUM HOSE
                        Blue
                        from £111.55
                        from £111.55
                        PIPE Genuine Lamborghini - New (to order)
                        # 030
                        MPN: 07M133606
                        VACUUM HOSE
                        red
                        from £74.45
                        from £74.45
                        PIPE Genuine Lamborghini - New (to order)
                        # 030
                        MPN: 07M133727
                        VACUUM HOSE
                        red
                        from £74.45
                        from £74.45
                        PIPE Genuine Lamborghini - New (to order)
                        # 030
                        MPN: 07M133728
                        VACUUM HOSE
                        Blue
                        from £74.45
                        from £74.45
                        PIPE Genuine Lamborghini - New (to order)
