16.02.00 - ALTERNATOR

Lamborghini Murcielago Roadster (2006) ALTERNATOR Parts Diagram

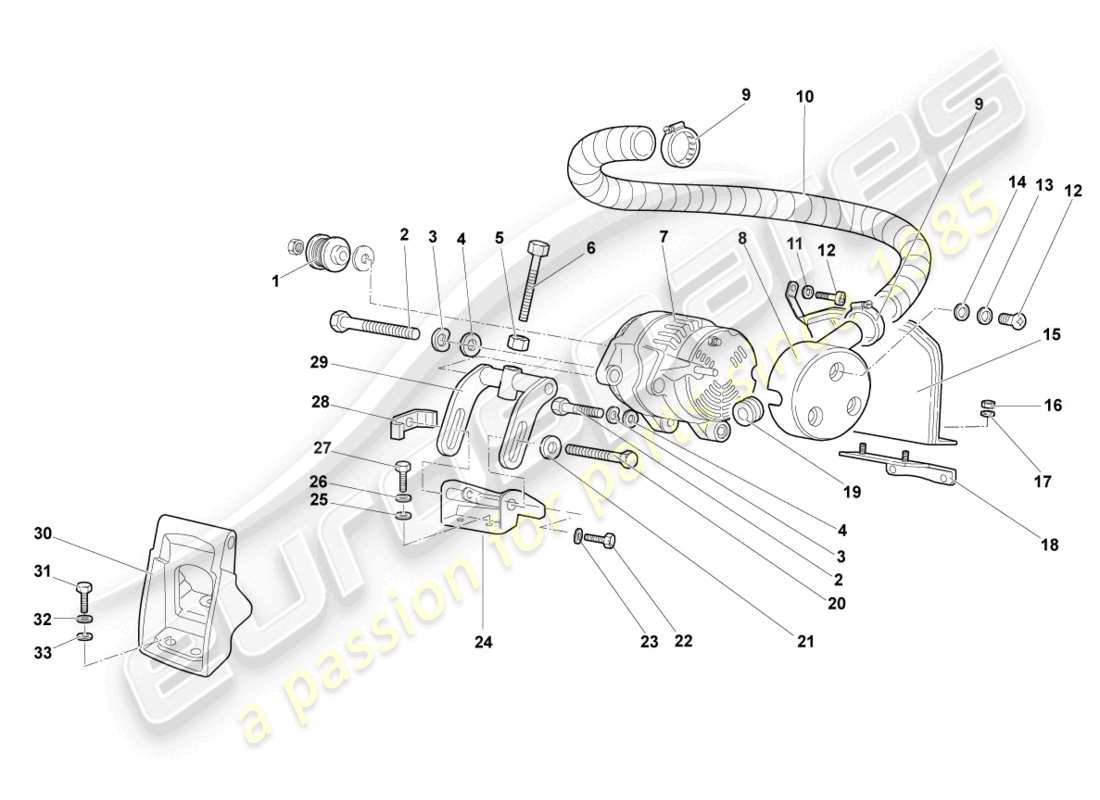

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 001
                MPN: 07M903165
                PULLEY
                from £316.47
                from £316.47
                PULLEY Genuine Lamborghini - New (to order)
                # 002
                MPN: 008100871
                HEXAGON BOLT
                M8X95
                from £2.61
                from £2.61
                SCREW M8X95 UNI 5737/8G ZD Genuine Lamborghini - New (to order)
                # 003
                MPN: WHT001397
                SPRING RING
                8,1X12,7X0,4
                from £0.53
                from £0.53
                This part replaces part number 008410820
                SPRING LOCK WASHER Genuine Lamborghini - New In stock
                # 004
                MPN: WHT000771
                SPRING RING
                15X8,4X0,5
                from £0.82
                from £0.82
                This part replaces part number 008410810
                SPRING LOCK WASHER Genuine Lamborghini - New In stock
                # 005
                -
                HEXAGON NUT
                # 006
                -
                HEXAGON BOLT
                # 007
                MPN: 07M903015
                ALTERNATOR
                from £1,559.82
                from £1,559.82
                ALTERNATOR Genuine Lamborghini - New (to order)
                ALTERNATOR Genuine Lamborghini - Used In stock
                # 008
                MPN: 410903421
                AIR GUIDE
                from £109.62
                from £109.62
                CONVEYOR Genuine Lamborghini - New (to order)
                CONVEYOR Genuine Lamborghini - Used In stock
                # 009
                MPN: N0245022
                CLAMP
                A-32-50X13X0,5
                from £3.38
                from £3.38
                This part replaces part number 008833802
                HOSE CLIP Genuine Lamborghini - New (to order)
                # 010
                MPN: 07M903667
                HOSE
                from £267.18
                from £267.18
                AIR DELIVERY PIPE TOALTERNATOR Genuine Lamborghini - New In stock
                # 011
                MPN: 008410805
                WASHER
                8,4X15X0,8
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 012
                MPN: N10353501
                HEXAGON SOCKET HEAD PANEL BOLT
                3,5X22
                from £0.54
                from £0.54
                COMBI TAPPING SCREW ST3.522.0 Z1 Genuine Lamborghini - New (to order)
                # 013
                MPN: WHT003051
                WASHER
                from £0.53
                from £0.53
                WASHER D.3.2 UNI 1751/F Genuine Lamborghini - New In stock
                # 014
                MPN: 008400304
                WASHER
                3,7X11X1
                from £0.53
                from £0.53
                WASHER UNI 1739 3.2X10X0.8 Genuine Lamborghini - New (to order)
                # 015
                MPN: 07M103653
                HEAT SHIELD
                from £449.62
                from £449.62
                HEAT PROTECTION SHEET Genuine Lamborghini - New (to order)
                # 016
                MPN: 008200614
                HEXAGON COLLAR NUT
                M6
                Supersession
                Supersession
                Genuine Lamborghini (no longer available to order)
                # 017
                MPN: 008400630
                WASHER
                6,5X18X2
                from £0.53
                from £0.53
                ROND.6,5X18X2 UNI 6593 ZN Genuine Lamborghini - New (to order)
                # 018
                MPN: 07M903103
                BRACKET
                from £33.04
                from £33.04
                ALTERNATOR BULKHEAD SUPP. BRACKET Genuine Lamborghini - New (to order)
                # 019
                MPN: 400422095
                GROMMET
                18X25X3
                from £29.53
                from £29.53
                GROMMET Genuine Lamborghini - New (to order)
                # 020
                -
                HEXAGON BOLT
                # 021
                -
                WASHER
                # 022
                -
                HEXAGON BOLT
                # 023
                -
                WASHER
                # 024
                -
                BRACKET
                # 025
                -
                SPRING RING
                # 026
                -
                WASHER
                # 027
                -
                HEXAGON SOCKET HEAD BOLT
                # 028
                -
                TENSIONING PIECE
                # 029
                -
                BRACKET
                # 030
                MPN: 07M903805
                BRACKET
                FROM VIN 5LA01545
                from £215.30
                from £215.30
                SUPPORT Genuine Lamborghini - New (to order)
                # 031
                MPN: N90536201
                TORX SOCKET HEAD BOLT
                FROM VIN 5LA01545-M8X26
                from £1.38
                from £1.38
                SCREW Genuine Lamborghini - New (to order)
                # 032
                MPN: N90107603
                WASHER
                FROM VIN 5LA01545-8,2X18X2
                from £0.53
                from £0.53
                WASHER 8.20X18X2 Genuine Lamborghini - New (to order)
                # 033
                MPN: WHT000771
                SPRING RING
                FROM VIN 5LA01545-15X8,4X0,5
                from £0.78
                from £0.78
                This part replaces part number 008410810
                SPRING LOCK WASHER Genuine Lamborghini - New In stock
