lamborghini murcielago roadster (2006) overroll protection parts diagram

60.02.00 - OVERROLL PROTECTION

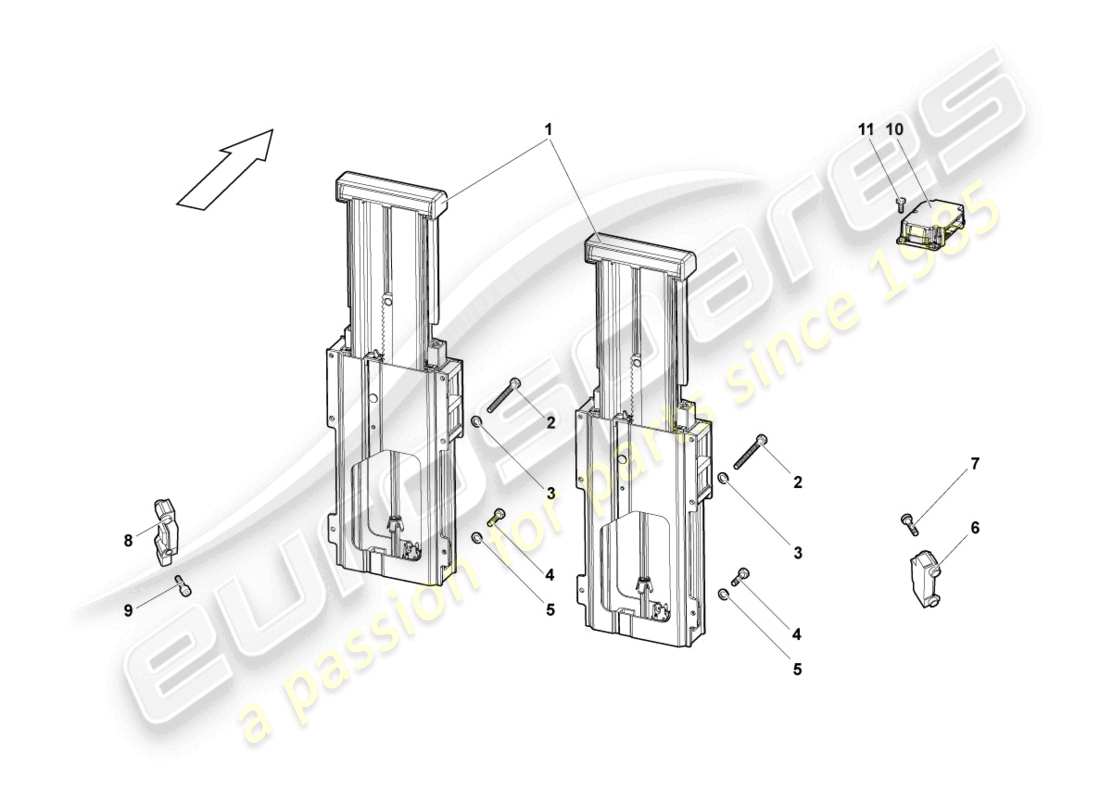

Lamborghini Murcielago Roadster (2006) OVERROLL PROTECTION Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 417880079
          OVERROLL PROTECTION
          from £4,102.73
          from £4,102.73
          ROLLOVER Genuine Lamborghini - New (to order)
          # 002
          MPN: 008100843
          HEXAGON HEAD BOLT (COMBI)
          M8X90
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 003
          MPN: 008400827
          WASHER
          8,4X17X1,6
          from £0.51
          from £0.51
          ROND.8,4X17X1,6 R40 ZN UNI6592 Genuine Lamborghini - New (to order)
          # 004
          MPN: N91005901
          HEXAGON SOCKET HEAD BOLT
          M8X25.0
          from £2.47
          from £2.47
          TRIPLE SQUARE BOLT Genuine Lamborghini - New (to order)
          # 005
          MPN: 008400827
          WASHER
          8,4X17X1,6
          from £0.53
          from £0.53
          ROND.8,4X17X1,6 R40 ZN UNI6592 Genuine Lamborghini - New (to order)
          # 006
          MPN: 8E0959643E
          LATERAL ACCELERATION SENSOR -CRASHSENSOR-
          from £72.05
          from £72.05
          SENSOR Genuine Lamborghini - New (to order)
          SENSOR Genuine Lamborghini - Used In stock
          # 007
          MPN: N90338202
          SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION)
          M6X45
          from £0.53
          from £0.53
          Genuine Lamborghini (no longer available to order)
          bolt, with hex. socket hd. (N 90338202) Genuine Porsche Part - New (to order)
          # 008
          MPN: 8E0959651B
          SENSOR FOR LONGIT. ACCELERAT. -CRASH SENSOR
          from £101.16
          from £101.16
          SENSOR Genuine Lamborghini - New (to order)
          # 009
          MPN: N90338202
          SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (COMBINATION)
          M6X45
          from £0.53
          from £0.53
          Genuine Lamborghini (no longer available to order)
          bolt, with hex. socket hd. (N 90338202) Genuine Porsche Part - New (to order)
          # 010
          MPN: 417959251
          CONTROL UNIT
          from £2,157.29
          from £2,157.29
          ROLL-OVER E.C.U. Genuine Lamborghini - New (to order)
          # 011
          MPN: N0902423
          HEXAGON HEAD BOLT (COMBI)
          M6X18
          from £0.52
          from £0.52
          CSREW M6X18 Genuine Lamborghini - New (to order)
          bolt, hex. hd. (combi.) (N 0902423) Genuine Porsche Part - New (to order)
