79.01.00 - BONNET

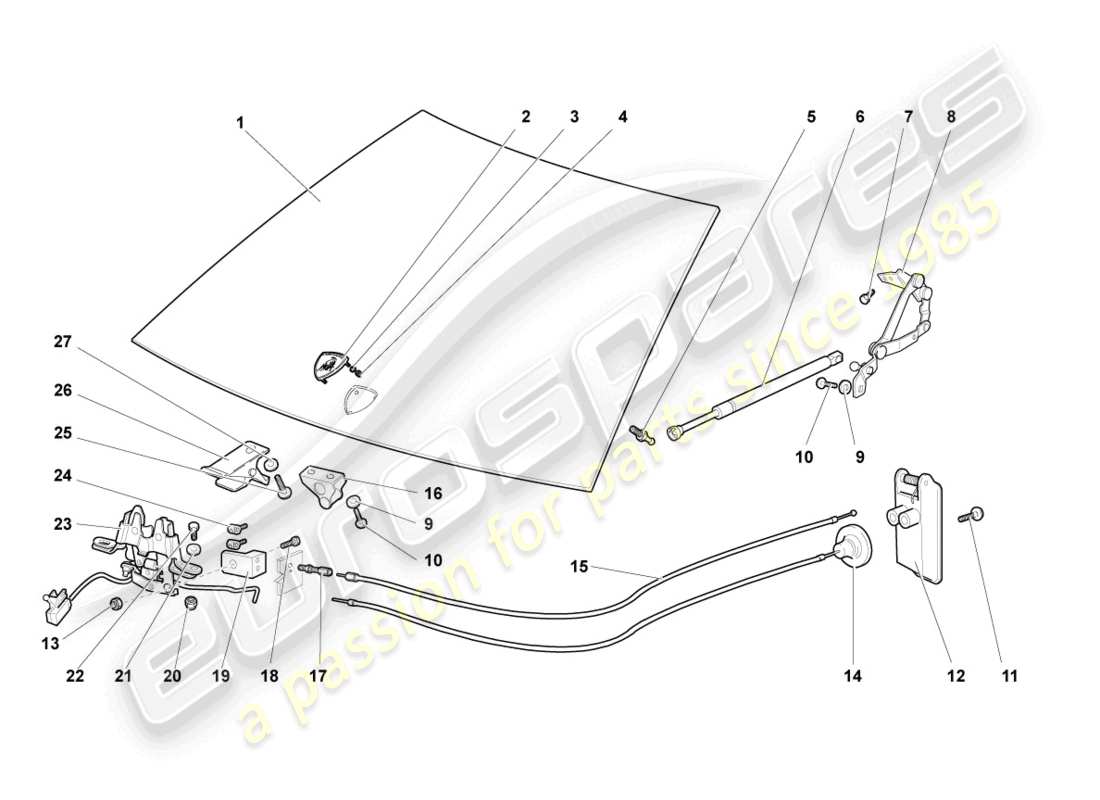

Lamborghini Murcielago Roadster (2006) BONNET Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 410823021
BONNET
FRONT
from £10,790.74
from £10,790.74
# 002
MPN: 400853745D
Lamborghini EMBLEM
FRONT
from £240.38
from £240.38
This part replaces part number 006127985
# 003
MPN: 008410311
WASHER
from £1.82
from £1.82
# 004
MPN: N0110027
HEXAGON NUT
M3
from £0.53
from £0.53
This part replaces part number 008200301
# 005
MPN: 895827439B
BALL STUD
Supersession
Supersession
# 006
MPN: 400823359A
GAS FILLED STRUT
from £53.07
from £53.07
# 007
MPN: N90319404
HEX COLLARED BOLT
M6X12
from £1.28
from £1.28
This part replaces part number 008700674
# 008
MPN: 410805383A
BONNET HINGE
LEFT
from £212.28
from £212.28
# 008
MPN: 410805384A
BONNET HINGE
RIGHT
from £212.28
from £212.28
# 009
MPN: 008400627
WASHER
6,3X16X2
from £13.82
from £13.82
# 010
MPN: 008740685
HEXAGON SOCKET HEAD BOLT, COUNTERSUNK
M6X16
from £12.06
from £12.06
# 011
MPN: WHT001190
ROUND HD. SCREW
M5X12
from £0.54
from £0.54
# 012
MPN: 410823537
GRIP FOR LID LOCK CABLE
from £766.08
from £766.08
# 013
MPN: 008200503
HEXAGON NUT
M5
from £2.24
from £2.24
# 014
MPN: 410823535
ACTUATING UNIT FOR EMERGENCY RELEASE
from £36.15
from £36.15
# 015
MPN: 410823530
BOWDEN CABLE
from £29.23
from £29.23
# 016
MPN: 410823186
ARM
from £140.51
from £140.51
# 017
MPN: 410827421
ADJUSTING SCREW
from £3.72
from £3.72
# 018
MPN: N01020717
HEXAGON BOLT
M5X12
from £0.47
from £0.47
This part replaces part number 008100504
# 019
MPN: 410814333
SECURING PLATE
from £87.77
from £87.77
# 020
-
HEXAGON NUT, SELF-LOCKING
# 021
MPN: WHT002961
WASHER
6,5X18X1,5
from £0.53
from £0.53
This part replaces part number 008400607
# 022
MPN: N90638803
HEXAGON BOLT
M6X30
from £0.66
from £0.66
This part replaces part number 008100623
# 023
MPN: 410827501B
LID LOCK
from £460.87
from £460.87
# 024
MPN: 410805717A
CABLE TERMINAL
from £6.67
from £6.67
# 025
MPN: N90319404
HEX COLLARED BOLT
M6X12
from £1.28
from £1.28
This part replaces part number 008700674
# 026
MPN: 410823183
BRACKET
from £507.55
from £507.55
# 027
MPN: WHT003407
WASHER
6,4X16X2
from £0.54
from £0.54
