117.01.00 - OIL COOLER

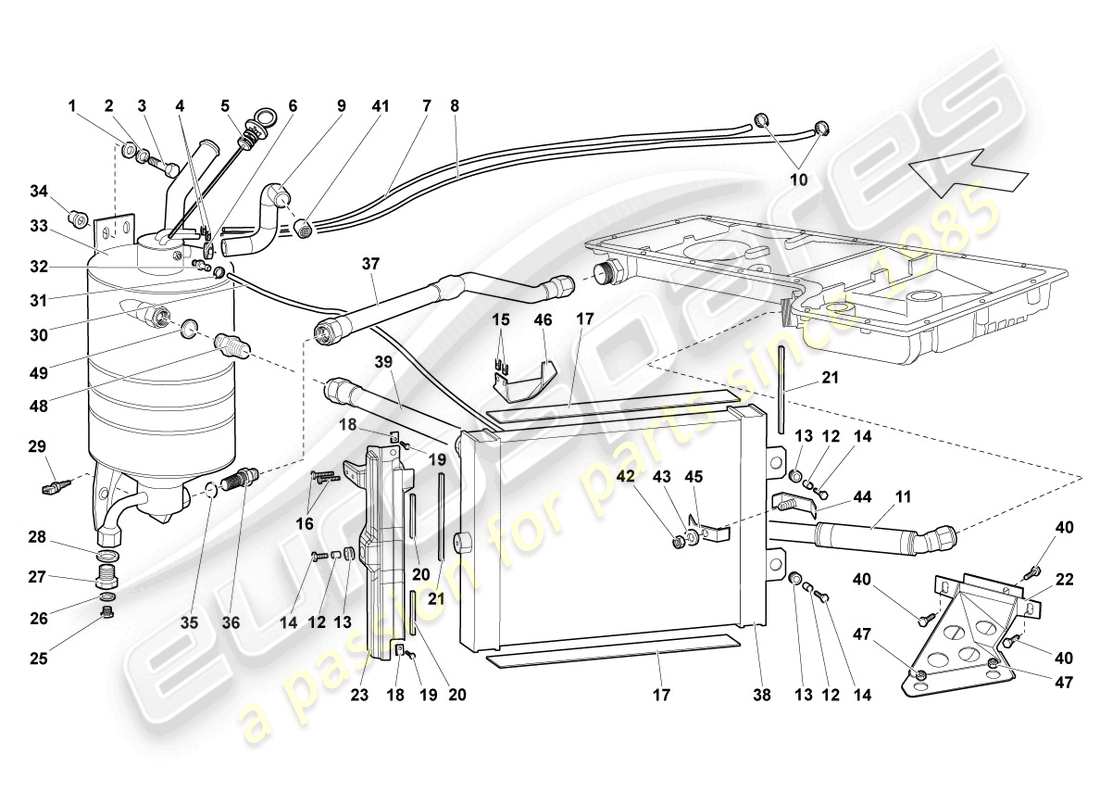

Lamborghini Reventon OIL COOLER Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: N90840802
WASHER
8,3X21,3X2 (EUROPE, UK spec vehicles)
from £0.53
from £0.53
This part replaces part number 008400804 - and 1 more. Click to view details
# 002
MPN: N0152785
WASHER
8X16X2 (EUROPE, UK spec vehicles)
from £0.53
from £0.53
This part replaces part number 008410806
# 003
MPN: N10545402
HEXAGON HEAD BOLT (COMBI)
M8X25 (EUROPE, UK spec vehicles)
from £1.04
from £1.04
This part replaces part number 008100827
# 004
MPN: N90293002
CLAMP
8-16 (EUROPE, UK spec vehicles)
from £1.23
from £1.23
# 005
MPN: 07M115311D
oil dipstick
(EUROPE, UK spec vehicles)
from £611.09
from £611.09
# 006
MPN: N91054301
CLAMP
20-32X12X0,5 (EUROPE, UK spec vehicles)
from £3.63
from £3.63
# 007
MPN: 07M115278D
OIL PIPE
LEFT CYLINDER HEAD-LEFT (EUROPE, UK spec vehicles)
from £21.80
from £21.80
# 008
MPN: 07M115278E
OIL PIPE
RIGHT CYLINDER HEAD-RIGHT (EUROPE, UK spec vehicles)
from £27.46
from £27.46
# 009
MPN: 07M115657
OIL HOSE
(EUROPE, UK spec vehicles)
from £89.49
from £89.49
# 010
MPN: 400251189E
CLAMP
(EUROPE, UK spec vehicles)
from £8.73
from £8.73
This part replaces part number 008831528
# 011
MPN: 07M117413B
OIL HOSE
(EUROPE, UK spec vehicles)
from £836.98
from £836.98
# 012
MPN: 400121129A
SPACER HOLDER
(EUROPE, UK spec vehicles)
from £9.38
from £9.38
# 013
MPN: 07L121585
GROMMET
(EUROPE, UK spec vehicles)
from £11.46
from £11.46
# 014
MPN: N90533003
BOLT, HEX. HD. (COMBI.) SELF-LOCKING
M6X20 (EUROPE, UK spec vehicles)
from £1.98
from £1.98
# 015
MPN: N0154523
SPEED NUT
(EUROPE, UK spec vehicles)
from £0.53
from £0.53
# 016
MPN: N90986803
HEXAGON SOCKET HEAD PANEL BOLT
4,2X13 (EUROPE, UK spec vehicles)
from £0.63
from £0.63
This part replaces part number N90986801
# 017
MPN: 07M117025
SEAL
(EUROPE, UK spec vehicles)
from £7.18
from £7.18
# 018
MPN: N90327506
SPEED NUT
M6X23,5X14,2 (EUROPE, UK spec vehicles)
from £0.62
from £0.62
# 019
MPN: N10718801
HEX COLLARED BOLT
M6X17 (EUROPE, UK spec vehicles)
from £0.61
from £0.61
# 020
MPN: 410853669
SEAL
(EUROPE, UK spec vehicles)
from £5.50
from £5.50
# 021
MPN: 07M117070
SEAL
(EUROPE, UK spec vehicles)
from £6.79
from £6.79
# 022
MPN: 410117095A
RETAINER FOR OIL COOLER
(EUROPE, UK spec vehicles)
from £358.83
from £358.83
# 023
MPN: 410853343
RETAINER FOR OIL COOLER
(EUROPE, UK spec vehicles)
from £365.75
from £365.75
# 025
MPN: N0297042
SEALING PLUG
M18X1,5X12 (EUROPE, UK spec vehicles)
from £6.70
from £6.70
This part replaces part number 400131737
# 026
MPN: N91122801
WASHER
18,5X24X1,5 (EUROPE, UK spec vehicles)
from £1.98
from £1.98
This part replaces part number 008401819
# 027
MPN: 07M115707A
CONNECTOR UNION
(EUROPE, UK spec vehicles)
from £76.61
from £76.61
# 028
MPN: WHT003050
WASHER
28X34X1,5 (EUROPE, UK spec vehicles)
from £4.12
from £4.12
# 029
MPN: 07L919501A
TEMPERATURE SENSOR
(EUROPE, UK spec vehicles)
from £116.28
from £116.28
This part replaces part number 002024394 - and 1 more. Click to view details
# 030
MPN: 07M115655
OIL HOSE
(EUROPE, UK spec vehicles)
from £93.38
from £93.38
# 031
MPN: N91054301
CLAMP
20-32X12X0,5 (EUROPE, UK spec vehicles)
from £3.63
from £3.63
# 033
MPN: 07M115373
OIL CONTAINER
(EUROPE, UK spec vehicles)
from £725.22
from £725.22
# 034
MPN: 410814939
BUSH
(EUROPE, UK spec vehicles)
from £5.07
from £5.07
# 035
MPN: WHT003309
WASHER
51X39X2 (EUROPE, UK spec vehicles)
from £18.55
from £18.55
# 036
MPN: 07M115157
CONNECTOR UNION
(EUROPE, UK spec vehicles)
from £418.49
from £418.49
# 037
MPN: 07M115688A
OIL PIPE
(EUROPE, UK spec vehicles)
from £365.23
from £365.23
# 038
MPN: 07M117021A
OIL COOLER
(EUROPE, UK spec vehicles)
from £1,371.98
from £1,371.98
# 039
MPN: 07M115689A
OIL PIPE
(EUROPE, UK spec vehicles)
from £301.98
from £301.98
# 040
MPN: N10005207
HEXAGON HEAD BOLT (COMBI)
M8X18 (EUROPE, UK spec vehicles)
from £4.67
from £4.67
# 041
MPN: 07L129793
NON-RETURN VALVE
(EUROPE, UK spec vehicles)
from £70.39
from £70.39
# 042
MPN: N01118312
HEXAGON NUT, SELF-LOCKING
M6 (EUROPE, UK spec vehicles)
from £1.15
from £1.15
This part replaces part number 008200606
# 043
MPN: WHT003407
WASHER
6,4X16X2 (EUROPE, UK spec vehicles)
from £0.53
from £0.53
# 044
MPN: 07M115633A
BRACKET
(EUROPE, UK spec vehicles)
from £17.64
from £17.64
# 045
MPN: 07M115634A
BRACKET
(EUROPE, UK spec vehicles)
from £15.31
from £15.31
# 046
MPN: 410853595
COVER
(EUROPE, UK spec vehicles)
from £46.18
from £46.18
# 047
MPN: WHT003112
HEXAGON NUT
M5 (EUROPE, UK spec vehicles)
from £0.53
from £0.53
# 048
MPN: 400115707
CONNECTOR UNION
(EUROPE, UK spec vehicles)
from £11.40
from £11.40
# 049
MPN: WHT000674
WASHER
30X36X1 (EUROPE, UK spec vehicles)
from £1.79
from £1.79
