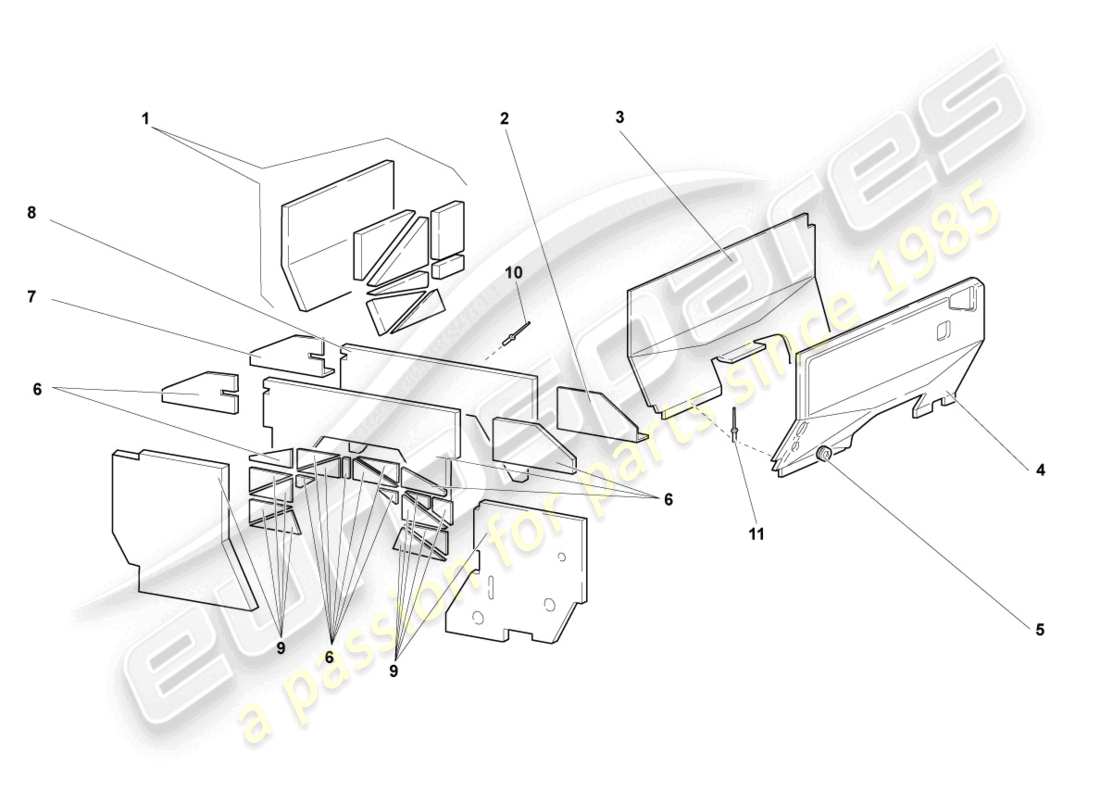

864.01.00 - HEAT SHIELD

Lamborghini Reventon HEAT SHIELD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 310147021
          1 SET PROTECTIVE HOUSING FOR FUEL TANK
          from £234.33
          from £234.33
          ISOL.SERBATOIO CARBURANTE Genuine Lamborghini - New (to order)
          # 002
          MPN: 418103763
          HEAT SHIELD
          LEFT
          from £78.08
          from £78.08
          PANEL Genuine Lamborghini - New (to order)
          # 003
          MPN: 418863932B
          DAMPING
          RIGHT
          from £787.04
          from £787.04
          DAMPING Genuine Lamborghini - New (to order)
          DAMPING Genuine Lamborghini - Used In stock
          # 004
          MPN: 418863931B
          DAMPING
          LEFT
          from £787.04
          from £787.04
          DAMPING Genuine Lamborghini - New (to order)
          DAMPING Genuine Lamborghini - Used In stock
          # 005
          MPN: 400825837
          GROMMET
          from £4.55
          from £4.55
          GROMMET Genuine Lamborghini - New (to order)
          # 006
          MPN: 310147022
          1 SET OF INSULATORS
          from £496.31
          from £496.31
          ISOL.PARAFIAM.L.MOT.ZONA SUPER Genuine Lamborghini - New (to order)
          # 007
          MPN: 418103764A
          HEAT SHIELD
          RIGHT
          from £78.86
          from £78.86
          SHIELD Genuine Lamborghini - New (to order)
          # 009
          MPN: 310147049
          1 SET OF INSULATORS
          from £1,050.55
          from £1,050.55
          ISOL.PARAFIAM.L.MOT.ZONA INFER Genuine Lamborghini - New (to order)
          # 010
          MPN: 410863059
          POP RIVET
          3,2X15
          from £0.50
          from £0.50
          RIV.ALL 3,2X16 ART. 00023 Genuine Lamborghini - New (to order)
          # 011
          MPN: 410806223
          POP RIVET
          3,2X16
          from £1.60
          from £1.60
          RIVETTO 3,2X16 TUX TT Genuine Lamborghini - New (to order)
          # 011
          MPN: 410867883
          POP RIVET
          3,2X8
          from £0.81
          from £0.81
          RIVETTO 3,2X8 AI 304 Genuine Lamborghini - New (to order)
