825.01.00 - Frame

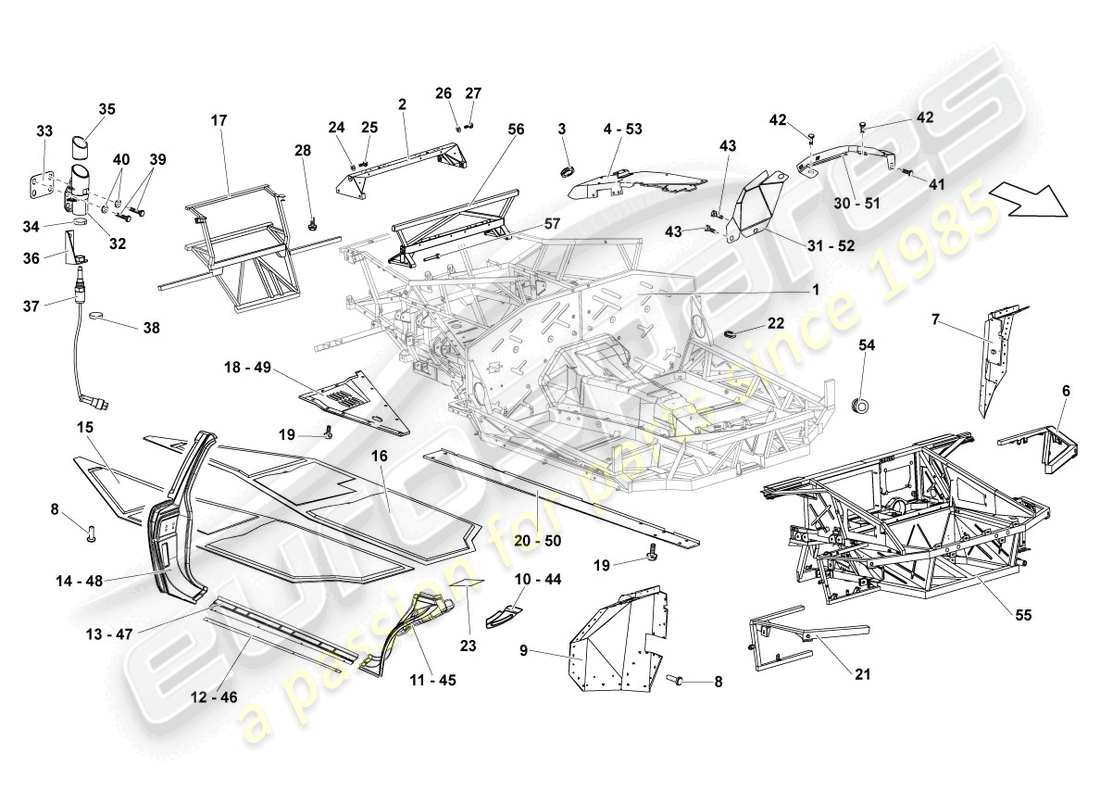

Lamborghini Reventon Roadster FRAME Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      -
      Frame
      CANNOT BE SOLD SEPARATELY
      # 002
      -
      CROSS MEMBER
      NOT FOR SUPERVELOCE MODEL NOT FOR LP640 ROADSTER MODEL
      # 003
      MPN: 400821189
      GROMMET
      10X18
      from £1.73
      from £1.73
      GROMMET Genuine Lamborghini - New (to order)
      # 004
      MPN: 410813765
      SIDE PART
      LEFT
      from £159.10
      from £159.10
      SHEET Genuine Lamborghini - New (to order)
      # 004
      MPN: 410813766A
      SIDE PART
      RIGHT
      from £121.07
      from £121.07
      SIDE PANEL Genuine Lamborghini - New (to order)
      # 006
      MPN: 0041013497
      Frame
      LEFT FRONT
      from £700.65
      from £700.65
      LEFT FRONT CHASSIS PART Genuine Lamborghini - New (to order)
      # 007
      MPN: 417809153
      WHEEL HOUSING
      LEFT FRONT
      from £7,860.55
      from £7,860.55
      WHEELHOUSE Genuine Lamborghini - New (to order)
      # 008
      MPN: 410821316
      RIVET
      3,9X11,5
      from £4.11
      from £4.11
      RIVETT.D.3,9 L=11,5 AIR CONDITIONING 1263911 Genuine Lamborghini - New (to order)
      # 009
      MPN: 417809154
      WHEEL HOUSING
      RIGHT FRONT
      from £7,860.55
      from £7,860.55
      WHEELHOUSE Genuine Lamborghini - New (to order)
      # 010
      MPN: 410809439A
      CONNECTING PLATE FOR A-PILLAR
      LEFT UPPER
      from £119.30
      from £119.30
      CONNECTING PIECE Genuine Lamborghini - New (to order)
      # 010
      MPN: 410809440A
      CONNECTING PLATE FOR A-PILLAR
      RIGHT UPPER
      from £143.26
      from £143.26
      CONNECTING PIECE Genuine Lamborghini - New (to order)
      # 011
      MPN: 410805047
      A-PILLAR, INNER
      LEFT FRONT
      from £1,710.95
      from £1,710.95
      DOOR RING SKELETON PART Genuine Lamborghini - New (to order)
      # 011
      MPN: 410805048
      A-PILLAR, INNER
      RIGHT FRONT
      from £1,710.95
      from £1,710.95
      DOOR RING SKELETON PART Genuine Lamborghini - New (to order)
      # 012
      MPN: 410831165
      CONNECTOR FOR
      LEFT LOWER
      from £52.45
      from £52.45
      DOOR FRAME CONNECTION PLATE Genuine Lamborghini - New (to order)
      # 012
      MPN: 410831166
      CONNECTOR FOR
      RIGHT LOWER
      from £59.65
      from £59.65
      DOOR FRAME CONNECTION PLATE Genuine Lamborghini - New (to order)
      # 013
      MPN: 410801255
      sill
      LEFT LOWER
      from £464.57
      from £464.57
      DOOR RING SKELETON PART Genuine Lamborghini - New (to order)
      # 013
      MPN: 410801256
      sill
      RIGHT LOWER
      from £464.57
      from £464.57
      DOOR RING SKELETON PART Genuine Lamborghini - New (to order)
      # 014
      MPN: 417809225
      B-PILLAR, INNER
      LEFT
      from £452.58
      from £452.58
      PANEL Genuine Lamborghini - New (to order)
      # 014
      MPN: 417809226
      B-PILLAR, INNER
      RIGHT
      from £452.58
      from £452.58
      PANEL Genuine Lamborghini - New (to order)
      # 015
      MPN: 410825219
      UNDERBODY TRIM
      LEFT
      from £4,558.61
      from £4,558.61
      STRUCTURAL PANEL LH Genuine Lamborghini - New (to order)
      # 016
      MPN: 410825220
      UNDERBODY TRIM
      RIGHT
      from £4,558.61
      from £4,558.61
      STRUCTURAL PANEL RH Genuine Lamborghini - New (to order)
      # 017
      -
      END CROSS MEMBER
      NOT FOR REVENTON ROADSTER MODEL
      # 018
      MPN: 410825215A
      UNDERBODY TRIM
      LEFT REAR
      from £1,248.99
      from £1,248.99
      DRAG REDUCTION Genuine Lamborghini - New (to order)
      # 018
      MPN: 410825216
      UNDERBODY TRIM
      RIGHT REAR
      from £1,065.01
      from £1,065.01
      BOTTOM PANEL Genuine Lamborghini - New (to order)
      # 019
      MPN: WHT003069
      HEXAGON FLANGE SCREW
      M6X20
      from £28.76
      from £28.76
      SCREW Genuine Lamborghini - New In stock
      # 020
      MPN: 410825210
      UNDERBODY TRIM
      SIDE, RIGHT
      from £851.20
      from £851.20
      BOTTOM PANEL Genuine Lamborghini - New (to order)
      # 020
      MPN: 410825211
      UNDERBODY TRIM
      SIDE, LEFT
      from £851.20
      from £851.20
      BOTTOM PANEL Genuine Lamborghini - New (to order)
      # 021
      MPN: 0041013498
      Frame
      RIGHT FRONT
      from £700.65
      from £700.65
      RIGHT FRONT CHASSIS PART Genuine Lamborghini - New (to order)
      # 022
      MPN: 410821801
      BUNGS
      from £22.95
      from £22.95
      CAP Genuine Lamborghini - New (to order)
      # 023
      MPN: 410837267
      COVER
      from £218.57
      from £218.57
      FRONT PART DOOR Genuine Lamborghini - New In stock
      # 024
      -
      WASHER
      NOT FOR LP640 ROADSTER MODEL
      # 025
      -
      HEXAGON BOLT
      NOT FOR SUPERVELOCE MODEL NOT FOR LP640 ROADSTER MODEL
      # 026
      -
      WASHER
      NOT FOR LP640 ROADSTER MODEL NOT FOR SUPERVELOCE MODEL
      # 027
      -
      SOCKET HEAD BOLT
      NOT FOR SUPERVELOCE MODEL NOT FOR LP640 ROADSTER MODEL
      # 028
      -
      HEXAGON BOLT
      NOT FOR REVENTON ROADSTER MODEL NOT FOR SUPERVELOCE MODEL
      # 030
      -
      WEB PLATE
      FOR LP640 ROADSTER MODEL
      # 030
      MPN: 410810609
      WEB PLATE
      LEFT
      from £67.02
      from £67.02
      SHEET Genuine Lamborghini - New (to order)
      # 030
      MPN: 410810610
      WEB PLATE
      RIGHT
      from £67.02
      from £67.02
      SHEET Genuine Lamborghini - New (to order)
      # 031
      -
      BRACKET
      FOR LP640 ROADSTER MODEL
      # 031
      MPN: 417803829
      BRACKET
      LEFT
      from £69.54
      from £69.54
      BRACKET Genuine Lamborghini - New (to order)
      # 031
      MPN: 417803830
      BRACKET
      RIGHT
      from £69.54
      from £69.54
      BRACKET Genuine Lamborghini - New (to order)
      # 032
      -
      BRACKET
      FOR LP640 ROADSTER MODEL
      # 032
      MPN: 417871459
      BRACKET
      from £266.09
      from £266.09
      SUPPORT Genuine Lamborghini - New (to order)
      # 033
      -
      SPACER
      FOR LP640 ROADSTER MODEL
      # 033
      MPN: 417871279
      SPACER
      from £12.32
      from £12.32
      SPECER Genuine Lamborghini - New (to order)
      # 034
      -
      GROMMET
      FOR LP640 ROADSTER MODEL
      # 034
      MPN: 417813395
      GROMMET
      from £1.22
      from £1.22
      GASKET Genuine Lamborghini - New (to order)
      # 035
      -
      BUSH
      FOR LP640 ROADSTER MODEL
      # 035
      MPN: 417871180
      BUSH
      from £51.19
      from £51.19
      BUSH Genuine Lamborghini - New (to order)
      # 036
      -
      BRACKET
      FOR LP640 ROADSTER MODEL
      # 036
      MPN: 417813763
      BRACKET
      from £42.31
      from £42.31
      BRACKET Genuine Lamborghini - New (to order)
      # 037
      -
      SWITCH - BRAKE LIGHT
      FOR LP640 ROADSTER MODEL
      # 037
      MPN: 417959727
      SWITCH - BRAKE LIGHT
      from £35.44
      from £35.44
      INTERRUTTORE Genuine Lamborghini - New In stock
      # 038
      -
      GROMMET
      FOR LP640 ROADSTER MODEL
      # 038
      MPN: 417813395A
      GROMMET
      from £0.76
      from £0.76
      GROMMET Genuine Lamborghini - New (to order)
      # 039
      -
      HEXAGON SOCKET HEAD BOLT
      FOR LP640 ROADSTER MODEL
      # 039
      MPN: WHT001194
      HEXAGON SOCKET HEAD BOLT
      M5X14
      from £0.51
      from £0.51
      HEXAGON SOCKET Genuine Lamborghini - New In stock
      # 040
      -
      WASHER
      FOR LP640 ROADSTER MODEL
      # 040
      MPN: WHT001187
      WASHER
      5,3X10X1
      from £0.53
      from £0.53
      This part replaces part number 008400502
      WASHER 10X5.3X1 UNI 6952 CAT-A Genuine Lamborghini - New In stock
      # 041
      -
      HEX SOCKET OVAL HEAD COLLARED
      FOR LP640 ROADSTER MODEL
      # 041
      MPN: N90807405
      HEX SOCKET OVAL HEAD COLLARED
      M5X18
      from £0.53
      from £0.53
      This part replaces part number N90807401 which we have in stock - and 1 more. Click to view details
      HEXALOBULAR SOCKET M5 x 18 Genuine Lamborghini - New In stock
      # 042
      -
      HEX COLLARED BOLT
      FOR LP640 ROADSTER MODEL
      # 042
      MPN: N90847901
      HEX COLLARED BOLT
      M6X15
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 043
      -
      HEX SOCKET OVAL HEAD COLLARED
      PER MODELLO FOR LP640 ROADSTER MODEL
      # 043
      MPN: N90807405
      HEX SOCKET OVAL HEAD COLLARED
      M5X18
      from £0.53
      from £0.53
      This part replaces part number N90807401 which we have in stock - and 1 more. Click to view details
      HEXALOBULAR SOCKET M5 x 18 Genuine Lamborghini - New In stock
      # 044
      -
      CONNECTING PLATE FOR A-PILLAR
      INCLUDED IN REF.:- 10
      # 045
      -
      A-PILLAR, INNER
      INCLUDED IN REF.:- 11
      # 046
      -
      CONNECTOR FOR
      INCLUDED IN REF.:- 12
      # 047
      -
      sill
      INCLUDED IN REF.:- 13
      # 048
      -
      B-PILLAR, INNER
      INCLUDED IN REF.:- 14
      # 049
      -
      UNDERBODY TRIM
      INCLUDED IN REF.:- 18
      # 050
      -
      UNDERBODY TRIM
      INCLUDED IN REF.:- 20
      # 051
      -
      WEB PLATE
      INCLUDED IN REF.:- 30
      # 052
      -
      BRACKET
      INCLUDED IN REF.:- 31
      # 053
      -
      SIDE PART
      INCLUDED IN REF.:- 4
      # 054
      MPN: 410805746
      GROMMET
      E-Gear
      from £2.25
      from £2.25
      FAIRLEAD Genuine Lamborghini - New (to order)
      # 055
      MPN: 410898045
      Frame
      SEE IDENTITY PLATE PROCEDURE-FRONT LHD (EUROPE, USA spec vehicles)
      from £14,529.88
      from £14,529.88
      Frame Genuine Lamborghini - New (to order)
      # 056
      -
      Frame
      FOR SUPERVELOCE MODEL
      # 057
      -
      SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD
      FOR SUPERVELOCE MODEL
