lamborghini revuelto coupe (2024) fuel supply system parts diagram

201.02.00 - FUEL SUPPLY SYSTEM

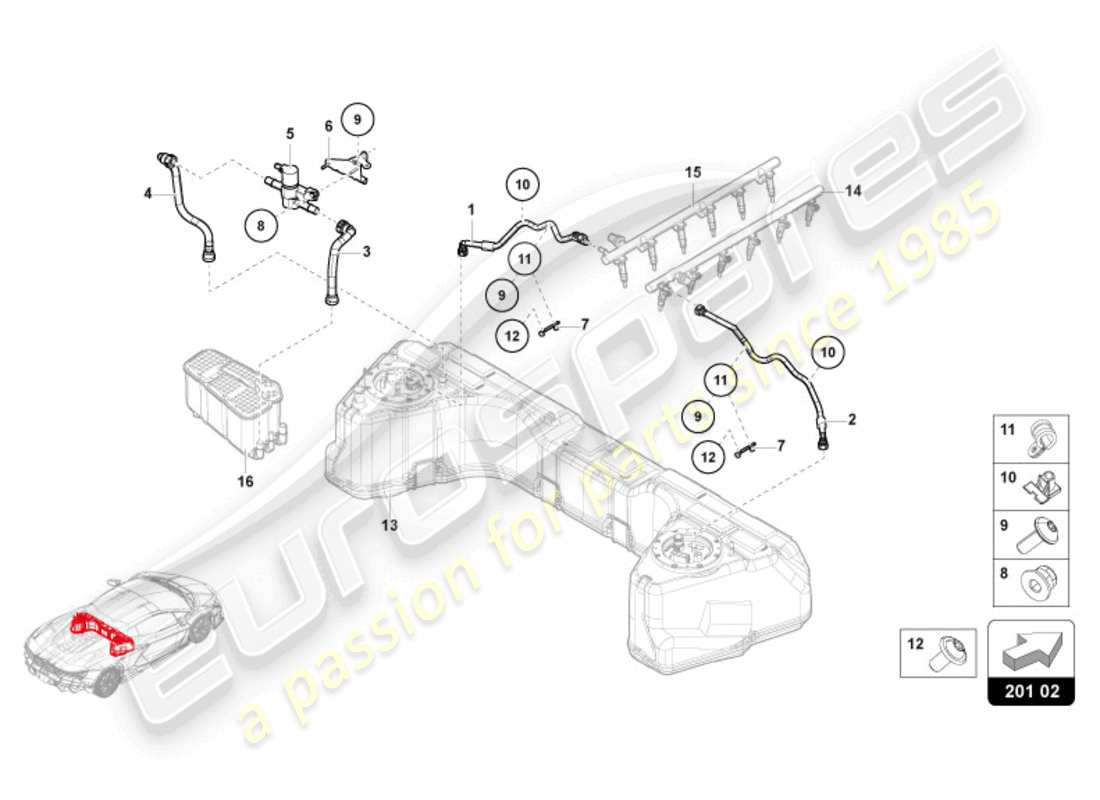

Lamborghini Revuelto Coupe (2024) FUEL SUPPLY SYSTEM Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 001
              MPN: 47B201233A
              FUEL PIPE
              LEFT
              from £181.00
              from £181.00
              TUBO MANDATA SX Genuine Lamborghini - New (to order)
              # 002
              MPN: 47B201234A
              FUEL PIPE
              RIGHT
              from £185.35
              from £185.35
              TUBO MANDATA DX Genuine Lamborghini - New (to order)
              # 003
              MPN: 47B201175
              breather line
              from £125.60
              from £125.60
              BREATHER TUBE Genuine Lamborghini - New (to order)
              # 004
              MPN: 47B201528
              breather line
              from £166.17
              from £166.17
              TUBAZ.CARBURANTE TUBO VAPORI SERBAT Genuine Lamborghini - New (to order)
              # 005
              MPN: 4N0201559
              PRESSURE REGULATOR
              from £306.16
              from £306.16
              PRESSURE REGULATOR Genuine Lamborghini - New (to order)
              # 006
              MPN: 47B201517
              BRACKET FOR PRESSURE REGULATOR
              from £34.49
              from £34.49
              BRACKET Genuine Lamborghini - New (to order)
              # 007
              MPN: 47B201827
              BRACKET
              from £20.76
              from £20.76
              BRACKET Genuine Lamborghini - New (to order)
              # 008
              MPN: N10205802
              HEXAGON COLLAR NUT SELF-LOCKING
              M6
              from £0.96
              from £0.96
              PREV.TORQUE TYPE M6 Genuine Lamborghini - New In stock
              SHOULDERED HEX. NUT, Genuine Porsche Part - New In stock
              HEXAGON COLLAR NUT SELF-LOCKING Genuine Bentley Part - New (to order)
              # 009
              MPN: N90780901
              OVAL HEXAGON SOCKET HEAD BOLT
              M6X16
              from £0.53
              from £0.53
              HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New (to order)
              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
              OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
              # 010
              MPN: 3D0971838
              CABLE TIE WITH HOLDER FOR PLASTIC PIN:
              5X200 5
              from £2.02
              from £2.02
              CABLE TIE BASE CT5-4.6X193 Genuine Lamborghini - New (to order)
              CABLE CLIP Genuine Bentley Part - New (to order)
              # 011
              MPN: N0206209
              CLAMP
              from £2.39
              from £2.39
              RETAINING CLAMP D1-13X15 Genuine Lamborghini - New (to order)
              # 012
              MPN: N10406504
              OVAL HEXAGON SOCKET HEAD BOLT
              M6X12
              from £0.79
              from £0.79
              HEXALOBULAR SOCKETM6X12 Genuine Lamborghini - New In stock
              OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
              OVAL HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
              # 013
              -
              FUEL TANK
              SEE ILLUSTRATION : 201.01
              # 014
              -
              FUEL LINE
              SEE ILLUSTRATION : 133.02
              # 015
              -
              FUEL LINE
              SEE ILLUSTRATION : 133.02
              # 016
              -
              ACTIVATED CHARCOAL CONTAINER
              SEE ILLUSTRATION : 201.03
