407.01.00 - AXLE SHAFT

Lamborghini Revuelto Coupe (2024) AXLE SHAFT Parts Diagram

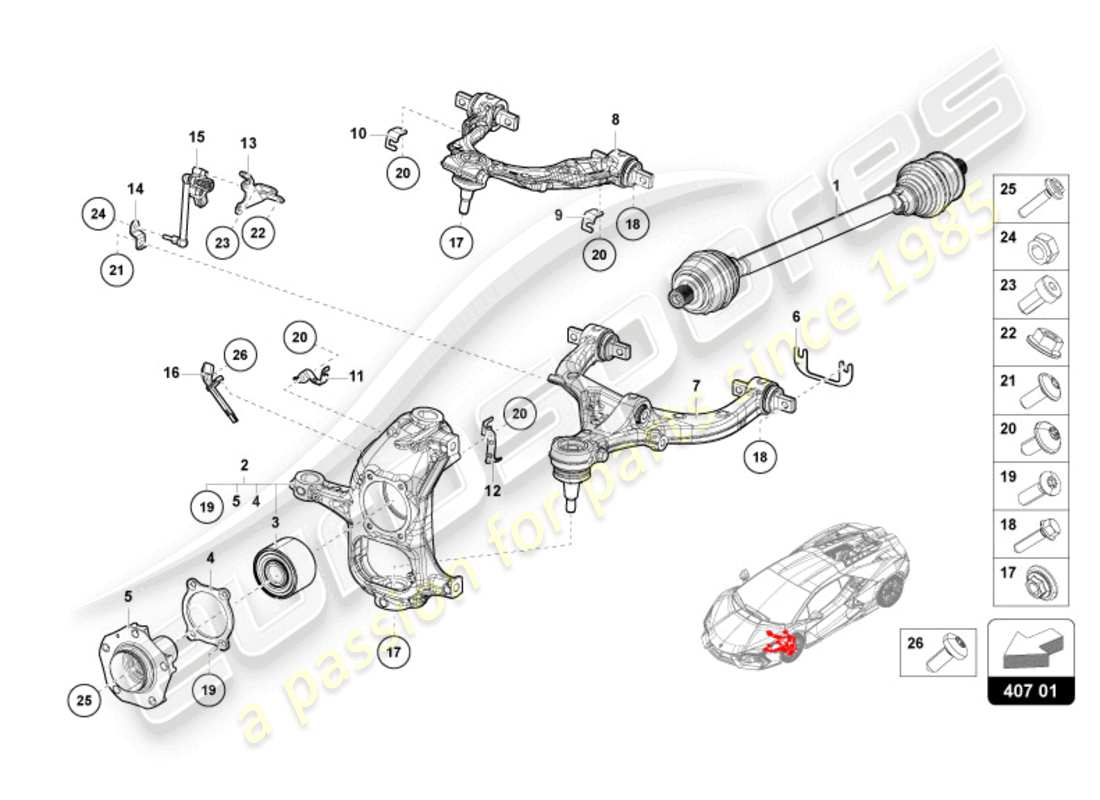

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 001
            MPN: 47B407271A
            DRIVE SHAFT
            from £1,043.65
            from £1,043.65
            HALF SHAFT Genuine Lamborghini - New (to order)
            # 002
            MPN: 47B407241
            WHEEL BEARING HOUSING
            FRONT, LEFT
            from £3,032.59
            from £3,032.59
            STEERING KNUCKLE Genuine Lamborghini - New (to order)
            # 002
            MPN: 47B407242
            WHEEL BEARING HOUSING
            FRONT, RIGHT
            from £3,032.59
            from £3,032.59
            STEERING KNUCKLE Genuine Lamborghini - New (to order)
            # 003
            -
            ANGULAR BALL BEARING
            INCLUDED IN REF. 2 - NOT SOLD SEPARATELY-FRONT
            # 004
            -
            PLATE
            INCLUDED IN REF. 2 - NOT SOLD SEPARATELY-FRONT
            # 005
            -
            WHEEL HUB
            INCLUDED IN REF. 2 - NOT SOLD SEPARATELY
            # 006
            MPN: 4S0407203C
            BALANCING PLATE
            1MM
            from £5.03
            from £5.03
            BACKING PLATE 1MM Genuine Lamborghini - New In stock
            # 006
            MPN: 4S0407203D
            BALANCING PLATE
            2MM
            from £5.03
            from £5.03
            BACKING PLATE 2MM Genuine Lamborghini - New In stock
            # 006
            MPN: 4S0407203E
            BALANCING PLATE
            3MM
            from £5.03
            from £5.03
            BACKING PLATE 3MM Genuine Lamborghini - New In stock
            # 006
            MPN: 4S0407203G
            BALANCING PLATE
            0,5MM
            from £5.03
            from £5.03
            BACKING PLATE 0,5MM Genuine Lamborghini - New In stock
            # 006
            MPN: 4S0407203H
            BALANCING PLATE
            1,5MM
            from £6.37
            from £6.37
            BACKING PLATE 1,5 MM Genuine Lamborghini - New (to order)
            # 007
            MPN: 47B407151A
            WISHBONE
            LOWER, LEFT
            from £1,745.14
            from £1,745.14
            FRONT LOWER CONTROL ARM ASSEMBLY LX Genuine Lamborghini - New (to order)
            # 007
            MPN: 47B407152A
            WISHBONE
            LOWER, RIGHT
            from £1,745.14
            from £1,745.14
            FRONT LOWER CONTROL ARM ASSEMBLY RX Genuine Lamborghini - New (to order)
            # 008
            MPN: 47B407505
            WISHBONE
            UPPER, LEFT
            from £2,797.33
            from £2,797.33
            CONTROL ARM, FRONT UPPER Genuine Lamborghini - New (to order)
            # 008
            MPN: 47B407506
            WISHBONE
            UPPER, RIGHT
            from £2,797.33
            from £2,797.33
            TRACK CONTROL ARM RH Genuine Lamborghini - New (to order)
            # 009
            MPN: 47B611849
            BRACKET
            LEFT
            from £32.00
            from £32.00
            PLUG Genuine Lamborghini - New (to order)
            # 009
            MPN: 47B611850
            BRACKET
            RIGHT
            from £32.00
            from £32.00
            BRACKET Genuine Lamborghini - New (to order)
            # 010
            MPN: 47B611752
            BRACKET
            LEFT
            from £32.00
            from £32.00
            BRACKET Genuine Lamborghini - New (to order)
            # 010
            MPN: 47B611752A
            BRACKET
            RIGHT
            from £32.00
            from £32.00
            BRACKET Genuine Lamborghini - New (to order)
            # 011
            MPN: 47B611319A
            BRACKET
            LEFT
            from £40.72
            from £40.72
            BRACKET Genuine Lamborghini - New (to order)
            # 011
            MPN: 47B611320A
            BRACKET
            RIGHT
            from £40.72
            from £40.72
            BRACKET Genuine Lamborghini - New (to order)
            # 012
            MPN: 47B611319
            BRACKET
            LEFT
            from £37.78
            from £37.78
            BRACKET Genuine Lamborghini - New (to order)
            # 012
            MPN: 47B611320
            BRACKET
            RIGHT
            from £37.78
            from £37.78
            BRACKET Genuine Lamborghini - New (to order)
            # 013
            MPN: 47B941355
            BRACKET
            LEFT
            from £30.16
            from £30.16
            BRACKET Genuine Lamborghini - New (to order)
            # 013
            MPN: 47B941356
            BRACKET
            RIGHT
            from £30.16
            from £30.16
            BRACKET Genuine Lamborghini - New (to order)
            # 014
            MPN: 47B941287C
            BRACKET
            from £16.51
            from £16.51
            RETAINING PART Genuine Lamborghini - New (to order)
            # 016
            MPN: 47B927803
            SPEED SENSOR
            from £38.70
            from £38.70
            SPEED SENSOR Genuine Lamborghini - New (to order)
            # 017
            MPN: WHT004898
            HEXAGON COLLAR NUT SELF-LOCKING
            M14X1,5
            from £4.11
            from £4.11
            HEXAGON FLANGE NUT M14X1.5 Genuine Lamborghini - New (to order)
            SHOULDERED HEX. NUT, Genuine Porsche Part - New (to order)
            # 018
            MPN: N10728502
            HEX COLLARED BOLT
            M10X40
            from £1.78
            from £1.78
            HEXAGON FLANGE M10X42 Genuine Lamborghini - New (to order)
            BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New (to order)
            # 019
            MPN: WHT011216
            GRUB SCREW
            from £13.16
            from £13.16
            SHAFT SCREW Genuine Lamborghini - New (to order)
            # 020
            MPN: N10741402
            HEXAGON SOCKET FLAT HEAD BOLT
            M6X14
            from £0.78
            from £0.78
            HEXALOBULAR SOCKETM6X14 Genuine Lamborghini - New In stock
            HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
            # 021
            MPN: N91055501
            OVAL HEXAGON SOCKET HEAD BOLT
            M5X12
            from £0.51
            from £0.51
            This part replaces part number N10459201 - and 1 more. Click to view details
            HEXALOBULAR SOCKETM5GFSX12 Genuine Lamborghini - New (to order)
            HEXALOBULAR SOCKETM5GFSX12 Genuine Lamborghini - New (other) In stock
            SCREW
            # 022
            MPN: N10017304
            HEXAGON COLLAR NUT
            M5
            from £1.08
            from £1.08
            HEXAGON FLANGE NUT M5 Genuine Lamborghini - New In stock
            shouldered hex. nut Genuine Porsche Part - New (to order)
            # 023
            MPN: N10434301
            SOCKET HEAD BOLT
            M5X10 N 104 343 FQA-TEIL
            from £0.54
            from £0.54
            PAN HEAD BOLT Genuine Lamborghini - New (to order)
            SCREW, CHEESE HD Genuine Porsche Part - New (to order)
            # 024
            MPN: N01118312
            HEXAGON NUT, SELF-LOCKING
            M6
            from £1.10
            from £1.10
            This part replaces part number 008200606
            PREV.TORQUE TYPE M6 Genuine Lamborghini - New In stock
            HEX. NUT, SELF-LOCKING Genuine Porsche Part - New (to order)
            # 025
            MPN: 4B0407643A
            SHOULDERED BOLT
            M16X1,5X72
            from £5.90
            from £5.90
            HEXAGON HEAD BOLT M16X72 Genuine Lamborghini - New In stock
            HEXAGON HEAD BOLT M16X72 Genuine Lamborghini - Used In stock
            # 026
            MPN: N91096701
            OVAL HEXAGON SOCKET HEAD BOLT
            M6X16
            from £0.78
            from £0.78
            HEXALOBULAR SOCKET M6X16 Genuine Lamborghini - New In stock
            OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
